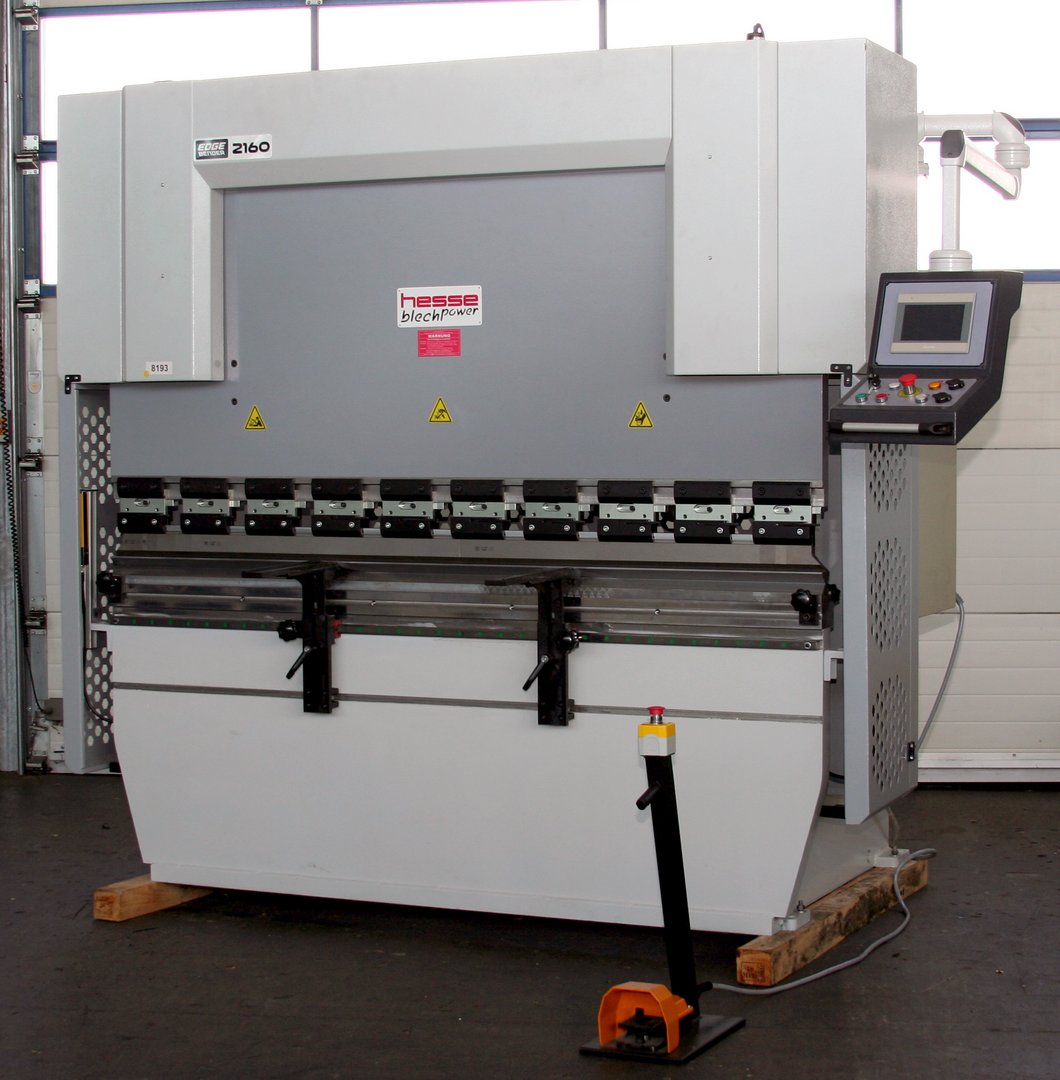

Hydraulic NC press brake HESSE by ISITAN Edgebender 2160
| Model | Edgebender 2160 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Year of manufacture | 2025 |
| pressing capacity | 60 to |
| Bending length | 2100 mm |
| Stock number | 80102 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 60 to |
| Bending length | 2100 mm |
| Axes | X and Y axis |
| Stroke | 160 mm |
| Inside distance between side frames | 1700 mm |
| Gap in side frame | 320 mm |
| Daylight | 380 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 90 mm/s |
| Working speed Y-axis | 10 |
| Back gauge travel X-axis | 500 mm |
| Table height | 845 mm |
| Table width | 100 mm |
| Oiltank | 120 l |
| Motor power | 5.5 kW |
Dimensions and weight
| Length | 2450 mm |
| Width | 1600 mm |
| Height | 2235 mm |
| Weight | 4340 kg |
Description

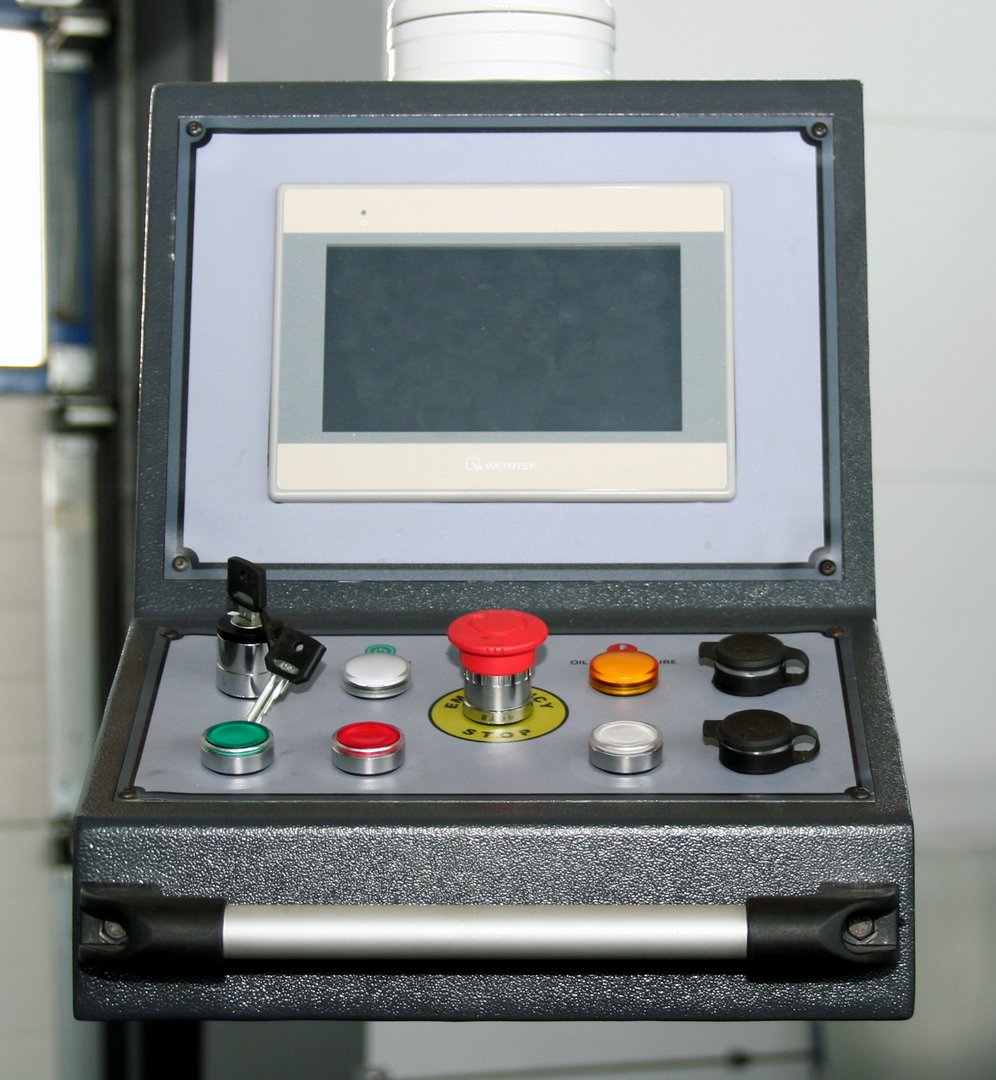

NC control for immersion depth (Y) and back gauge (X)
synchronization control by means of a torsion shaft
sheet support arms
laser safety device Fiessler
motorized crowning table

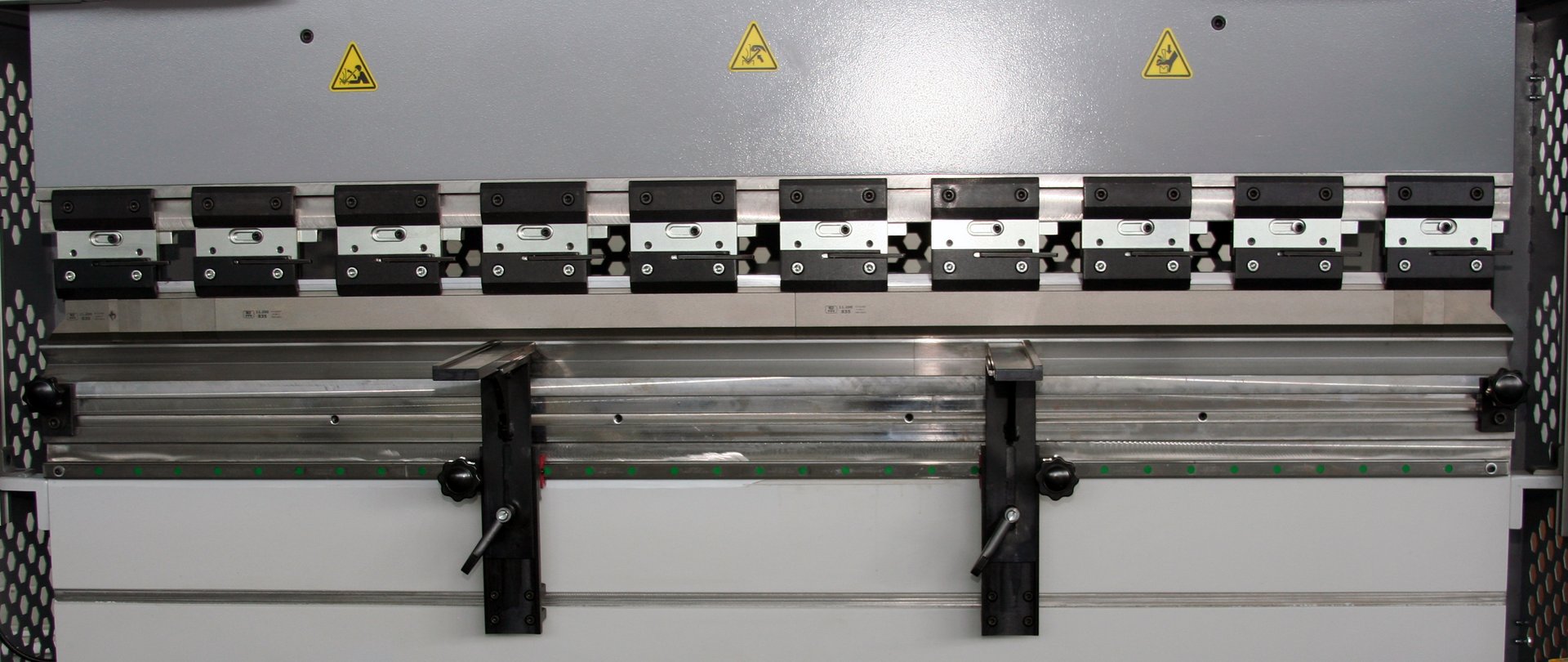

intermediate pieces for the upper tool clamping
die holder for 60 mm tools
die with 4 V openings
upper tool, slightly cranked, sectioned

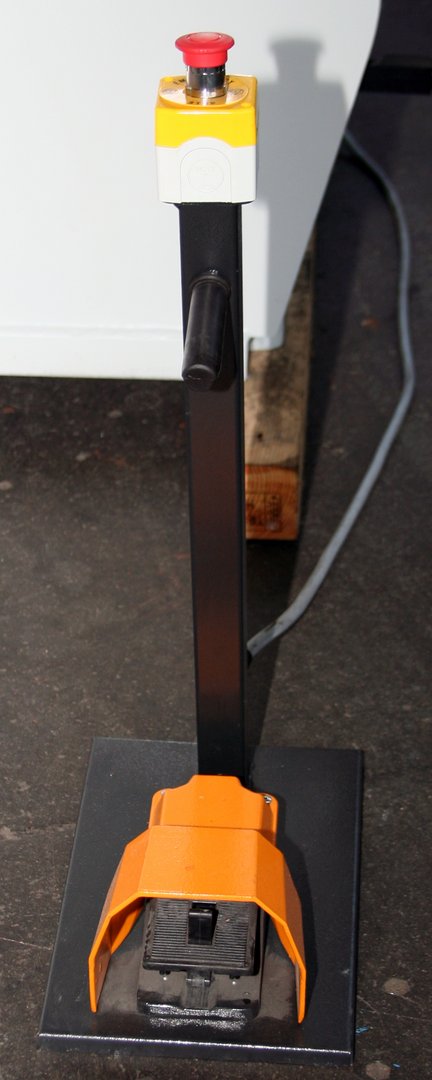

foot pedal
user manual in GERMAN or ENGLISH
