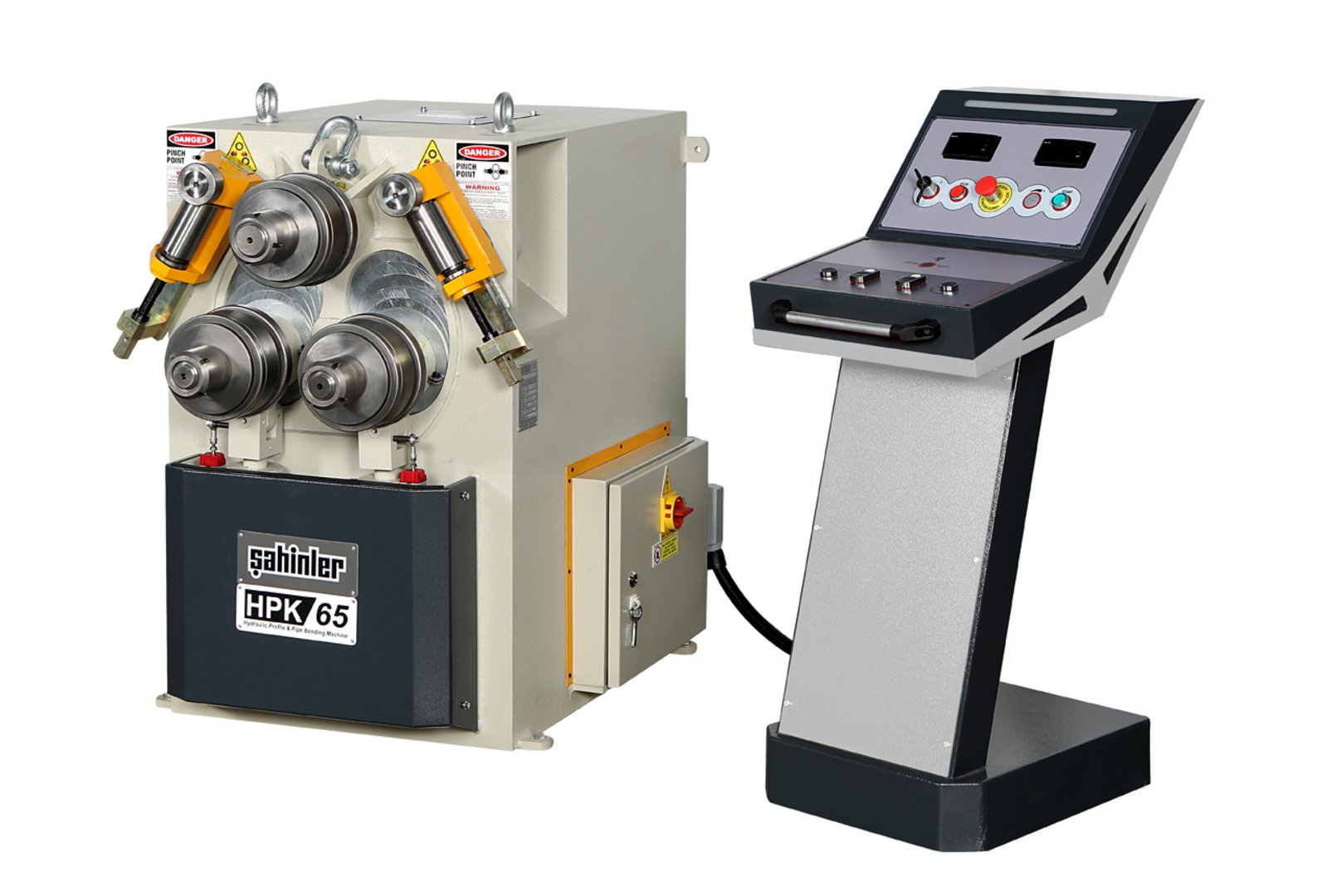

Profile bending machine with hydraulic feed of rolls HESSE by SAHINLER HPK 65
| Model | HPK 65 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Shaft diameter | 50 - 60 |
| Rolls diameter | 180 mm |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 50 - 60 |
| Upper roll diameter | 180 mm |
| Rolls diameter | 180 mm |
| Lower roll diameter | 180 mm |
| Driven rolls | 3 |
| Motor power | 3.75 kW |
| Speed | 6 m/min |
| Flat steel vertical position (section / min. diameter) | 60x10 mm / 500 mm; 20x5 mm / 250 mm |
| Flat steel horizontal position (section / min. diameter) | 80x20 mm / 500 mm; 50x5 mm / 250 mm |
| Square bar (section / min. diameter) | 32x32 mm / 400 mm; 12x12 mm / 250 mm |
| Round bar (section / min. diameter) | Ø 35 mm / 350 mm; Ø 10 mm / 250 mm |
| Tube (section / min. diameter) | Ø 60x2 mm / 600 mm; Ø 15x1,5 mm / 200 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 50x25x3 mm / 450 mm; 20x15x2 mm / 250 mm |
| Form tube square (section / min. diameter) | 45x3 mm / 600 mm; 20x2 mm / 300 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 60x60x6 mm / 650 mm; 30x30x4 mm / 350 mm |
| Angle leg inside (section / min. diameter) | 50x50x5 mm / 550 mm; 30x30x4 mm / 350 mm |
| UPN leg outside (section / min. diameter) | UPN 80 / 600 mm, UPN30 / 250 mm |
| UPN leg inside (section / min. diameter) | UPN 65 / 600 mm; UPN 30 / 250 mm |
| IPN horizontal position (section / min. diameter) | IPN 80 / 600 mm |
Dimensions and weight
| Length | 1200 mm |
| Width | 850 mm |
| Height | 1200 mm |
| Weight | 955 kg |
Description
3 mech. driven rolls (brake motor)
hardened shafts
lower rolls hydraulic adjustable hardened universal rolls
lateral rolls adjustable in 1 axis
horizontal and vertical operation
digital read out for the position of the lower rolls
machine and equipment according to the CE regulations
user manual in GERMAN and ENGLISH
Further information
Product video
Profile bending machine with hydraulic feed of rolls HPK 65
