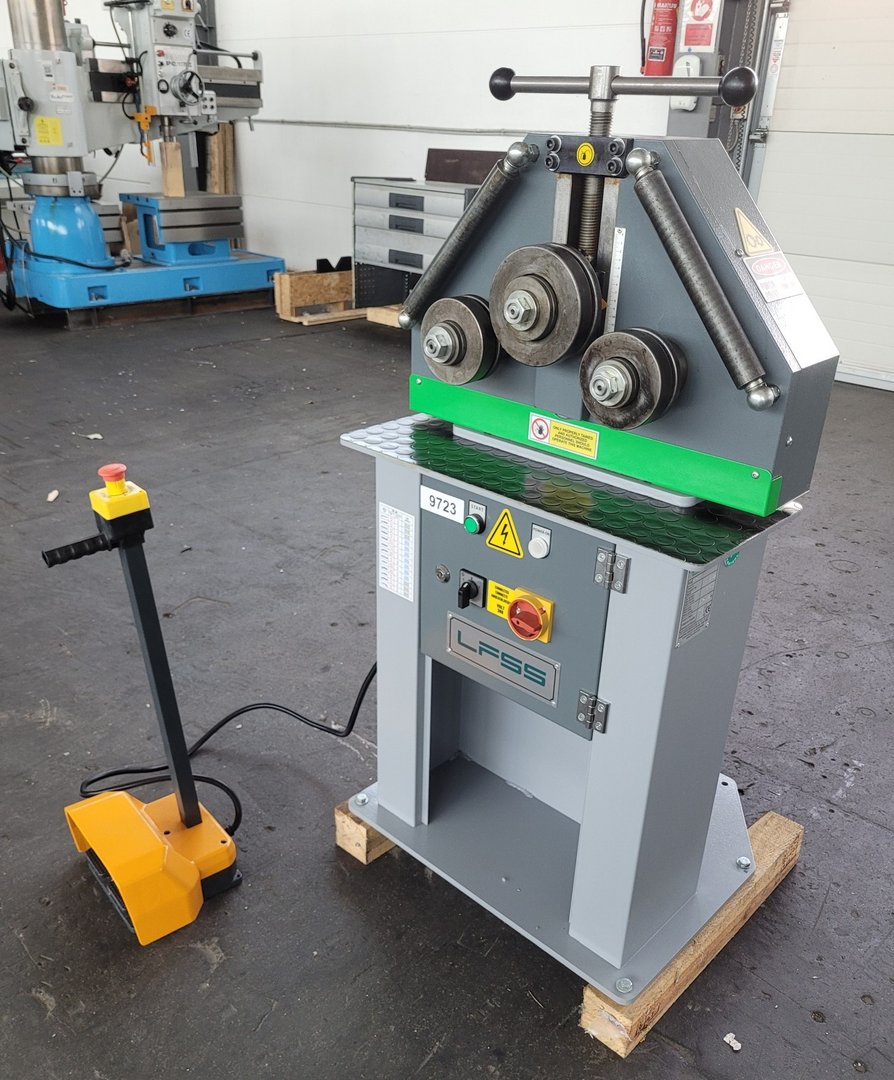

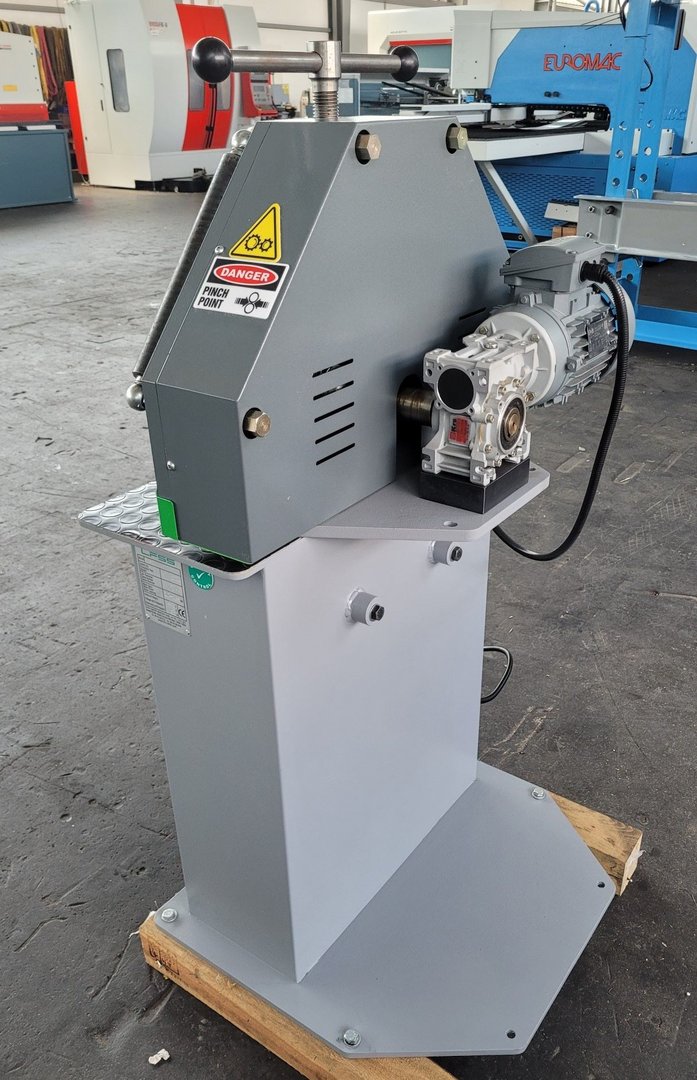

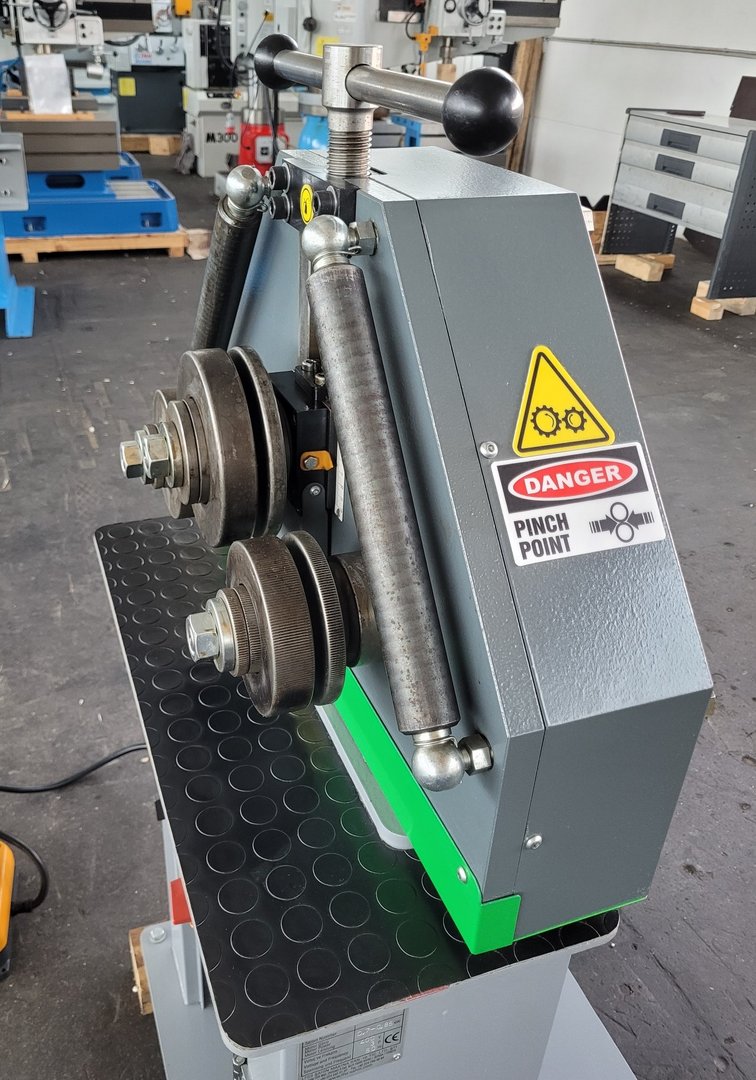

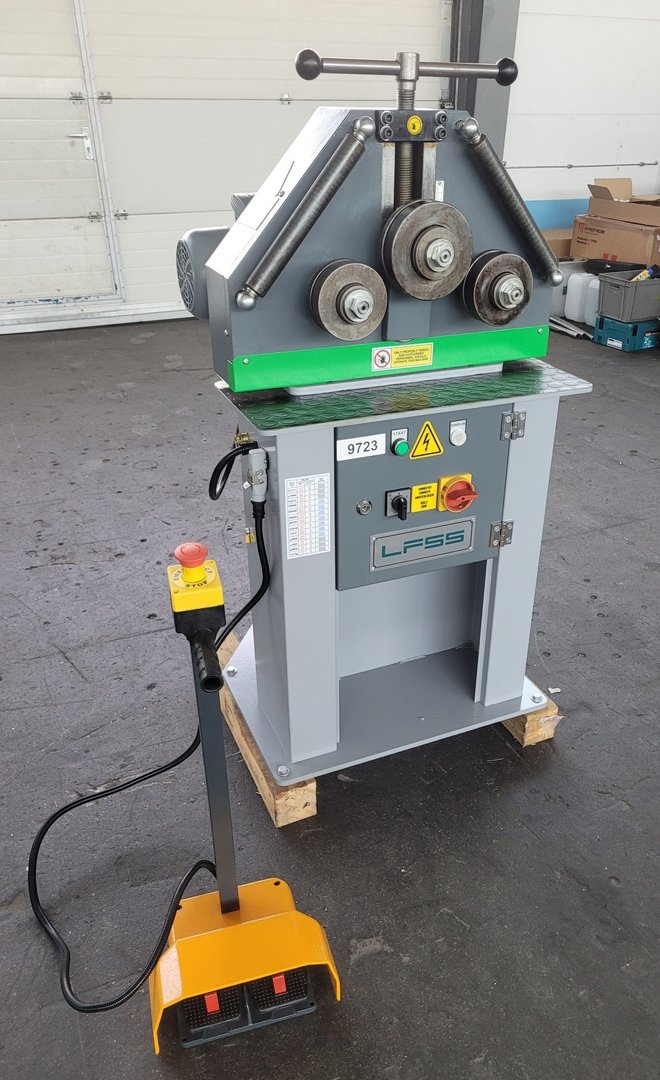

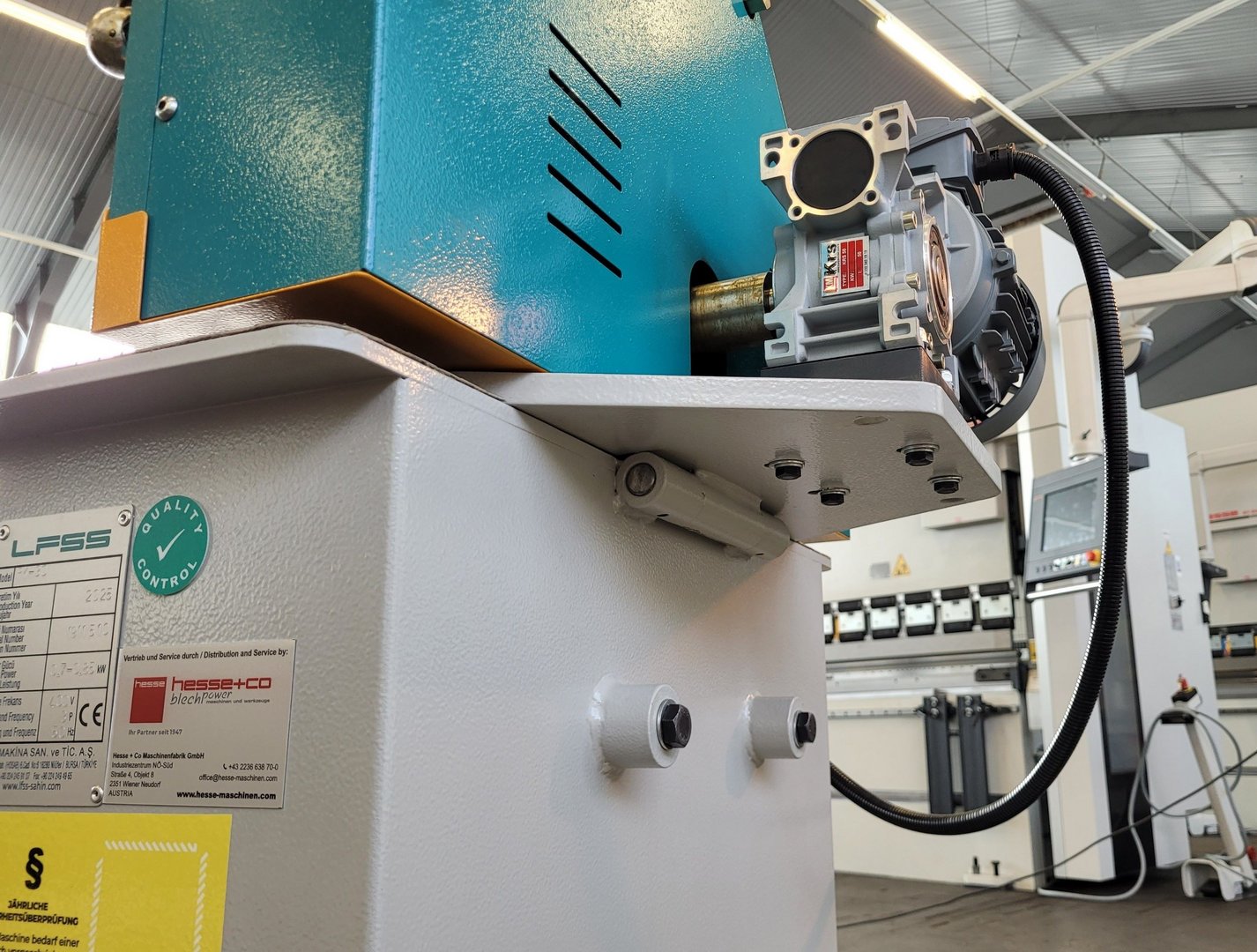

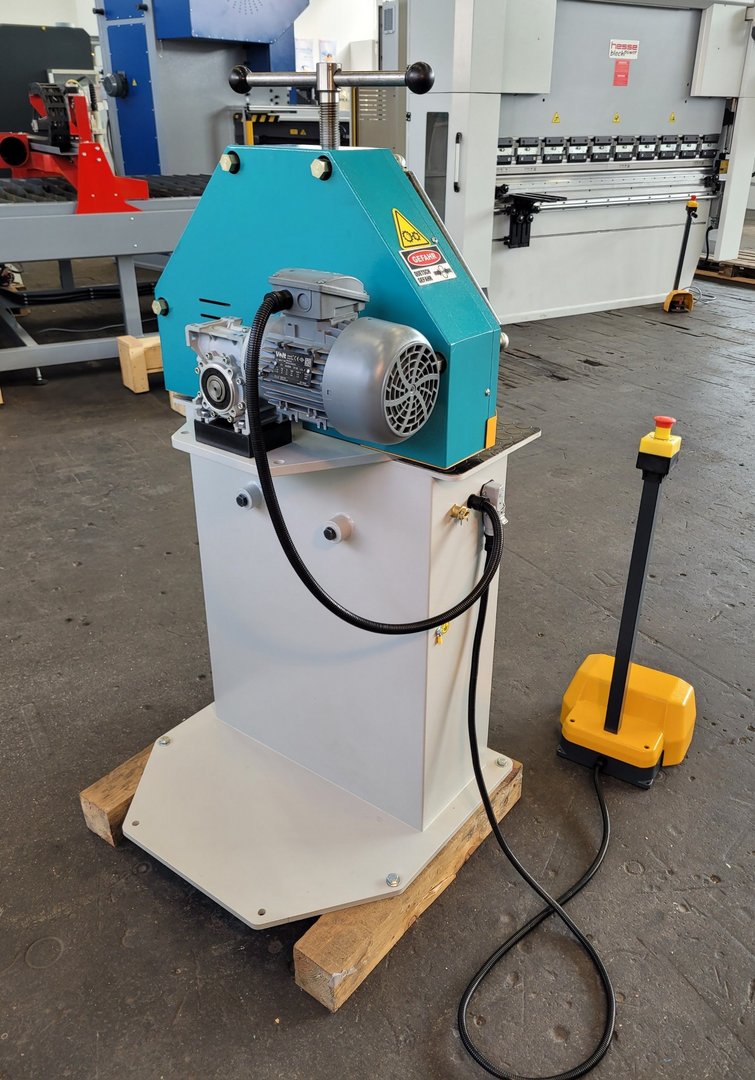

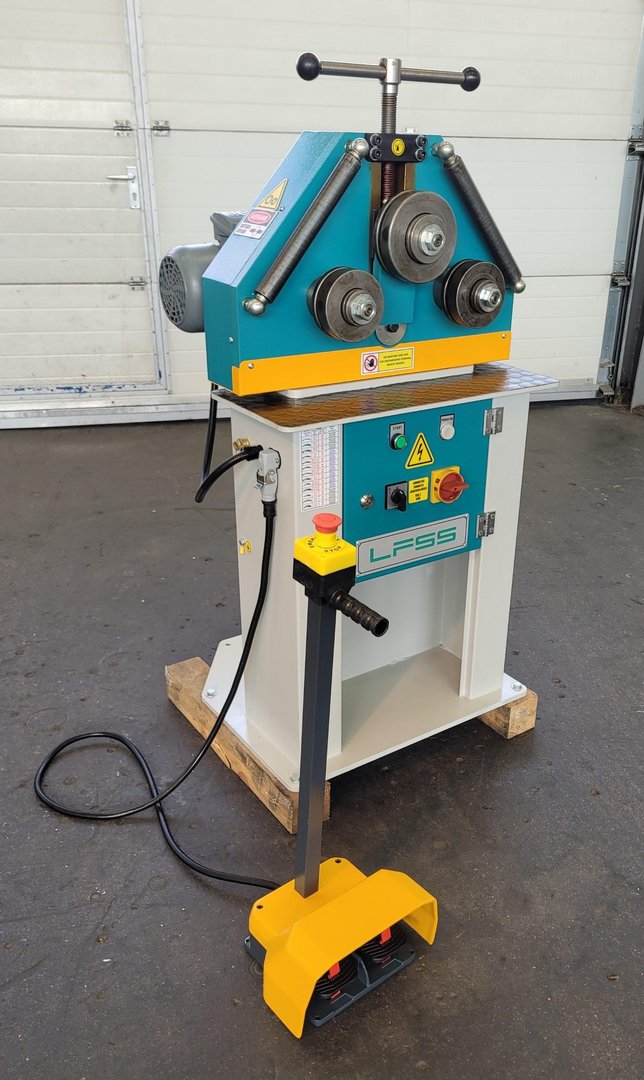

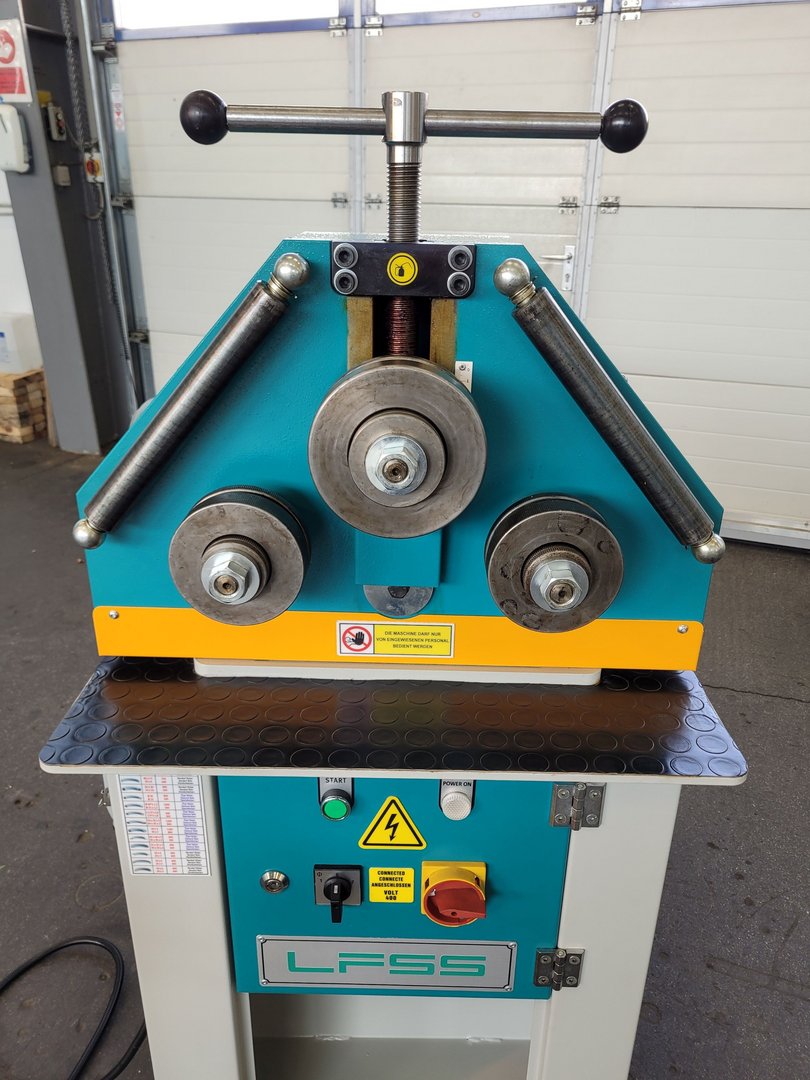

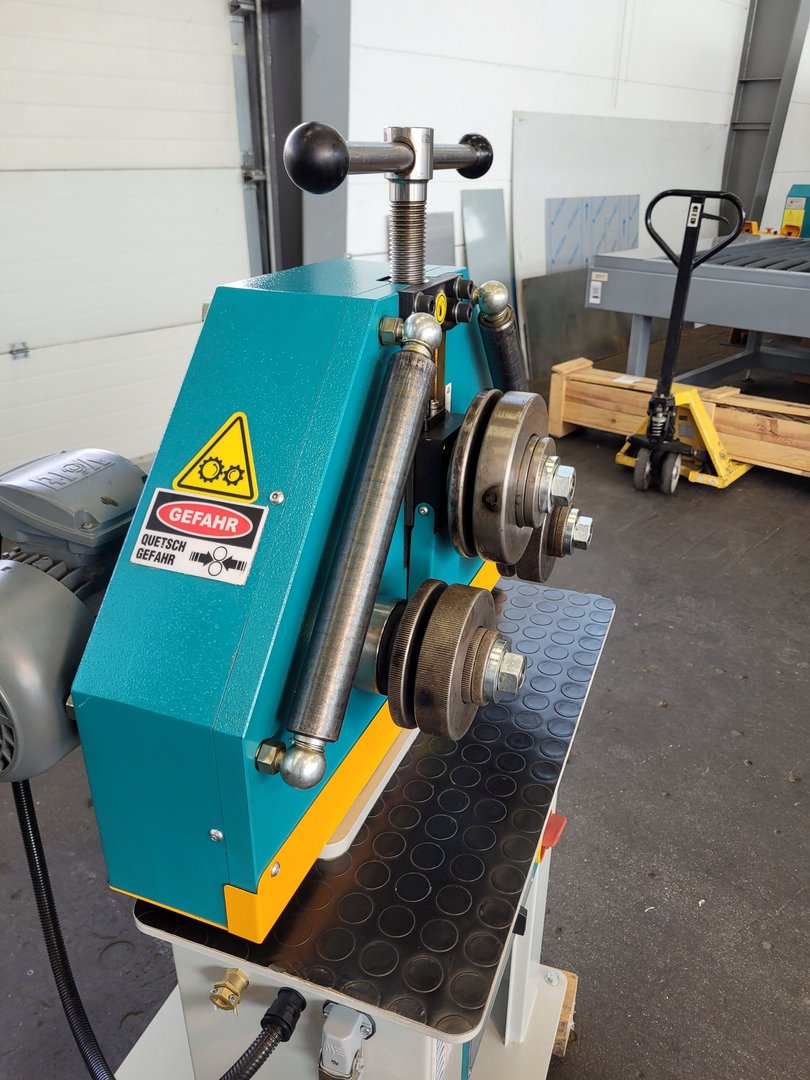

Profile bending machine with manual feed of rolls HESSE by LFSS PK 30
| Model | PK 30 |
| Brand | HESSE by LFSS |
| Condition | new |
| Year of manufacture | 2025 |
| Shaft diameter | 30 |
| Stock number | 90130 |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 30 |
| Upper roll diameter | 148 mm |
| Lower roll diameter | 118 mm |
| Driven rolls | 2 |
| Motor power | 0.7 / 0,85 kW |
| Speed | 2/4 m/min |
| Flat steel vertical position (section / min. diameter) | 50x10 mm / 1.800 mm; 20x6 mm / 300 mm |
| Flat steel horizontal position (section / min. diameter) | 80x15 mm / 700 mm; 30 x 6 mm / 400 mm |
| Square bar (section / min. diameter) | 30x30 mm / 900 mm; 10x10 mm / 200 mm |
| Round bar (section / min. diameter) | Ø 30 mm / 900 mm; Ø 10 mm / 200 mm |
| Tube (section / min. diameter) | Ø 60x1,5 mm / 1.000 mm; Ø 25x1,5 mm / 600 mm; 1 1/2"x2,9 mm / 600 mm; 1/4"x1,8 mm / 300 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 50x30x3 mm / 1.200 mm; 40x20x2 mm / 800 mm |
| Form tube square (section / min. diameter) | 40x40x3 mm / 1.200 mm; 30x30x2 mm / 800 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 40x40x5 mm / 600 mm; 30x30x4 mm / 300 mm |
| Angle leg inside (section / min. diameter) | 35x35x5 mm / 600 mm; 30x30x4 mm / 400 mm |
Dimensions and weight
| Length | 600 mm |
| Width | 800 mm |
| Height | 1450 mm |
| Weight | 220 kg |
Description
2 mech. driven rolls
strong cast steel construction
shafts made of special steel, hardened and ground
top roll manual adjustable
hardened universal rolls
lateral rolls adjustable in 1 axis
horizontal and vertical operation
double foot pedal for for- and backward drive
machine and equipment according to the CE regulations
user manual in GERMAN or ENGLISH
