Description

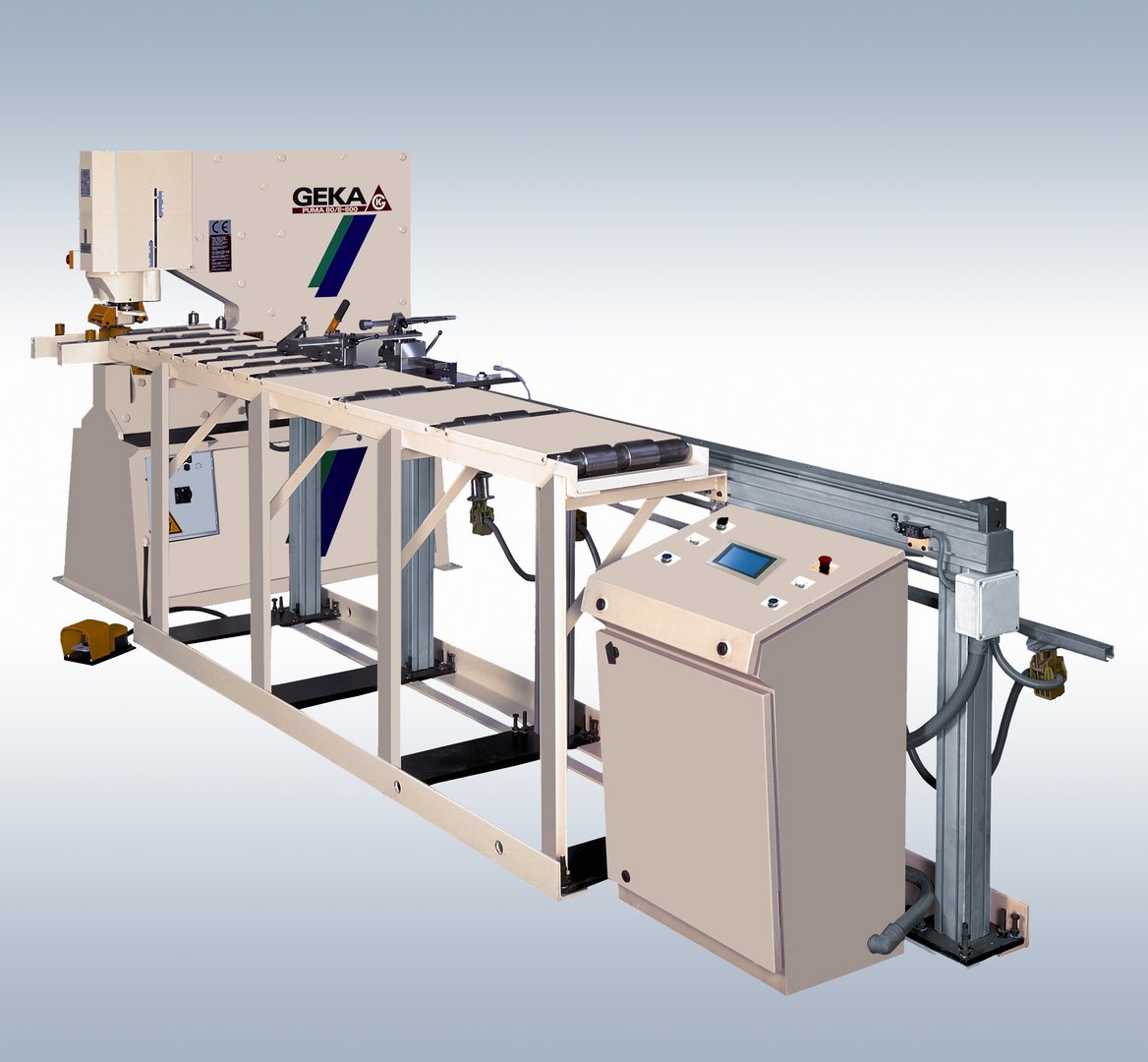

The PAX series positions the material along the X-axis for sequential, multiple punching of profiles.
- feeding unit with material guidings for positioning
- material clamps
- Servomotor for positioning
- roller track table
- manually adjustable side guides
- Touchscreen control
Other sizes for X-axis on request.
The punching machine is not included in that price.
If ordered together with a Geka Puma or Hydracrop machine, the mounting on the machine is included.
If ordered for retrofit, mounting will be charged addittionally.
X-axis: 3000 mm Max. feeding speed: 24 m/min positioning accuracy: +/- 0,25 mm repeating accuracy: +/- 0,15 mm Max. weight of workpiece: 250 kg
