General characteristics
| Punching power | 50 ton |
| Throat depth | 130 mm |
| Max. diameter at sheet thickness (mild steel) | 13/27 mm |
| Max. number of strokes at 20 mm stroke | 23 1/min |
| Motor | 3 kW |
Dimensions and weight
| Length | 1100 mm |
| Width | 900 mm |
| Height | 1550 mm |
| Weight | 355 kg |
Description

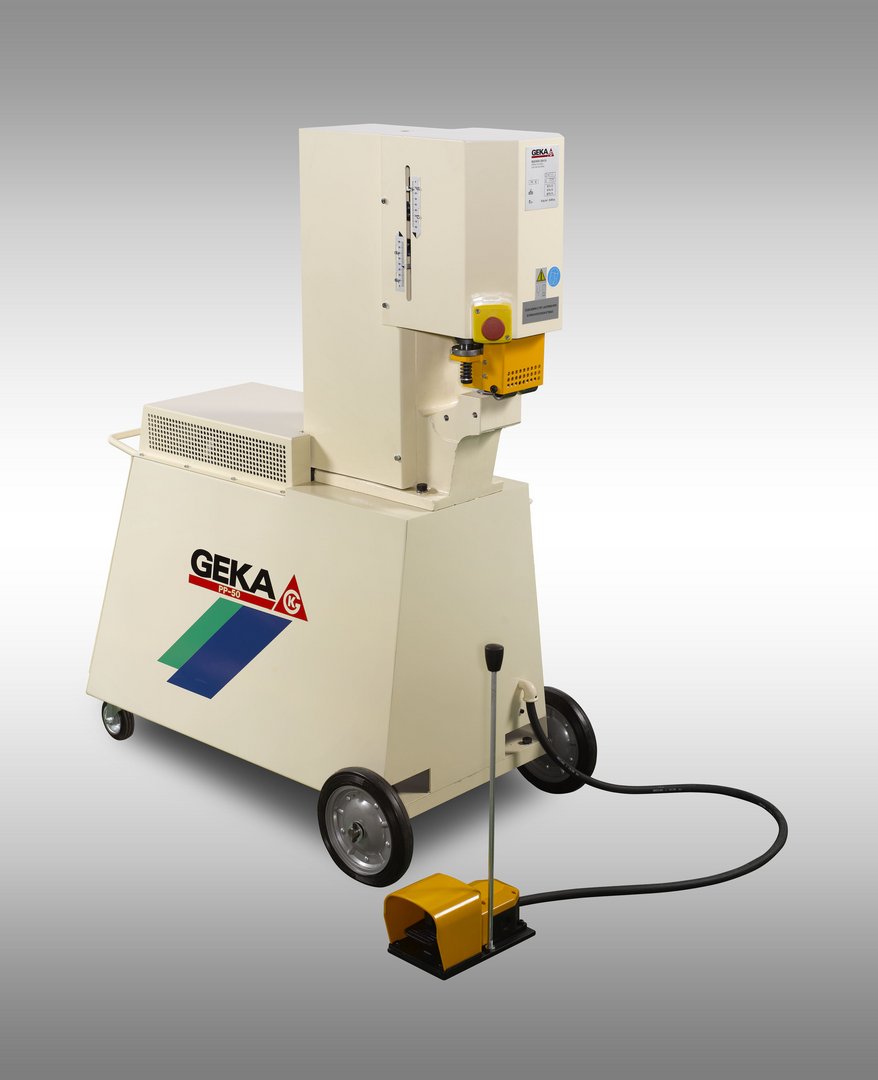

portable, hydraulic punching machine
table with gauge
foot pedal
user manual in German or English
