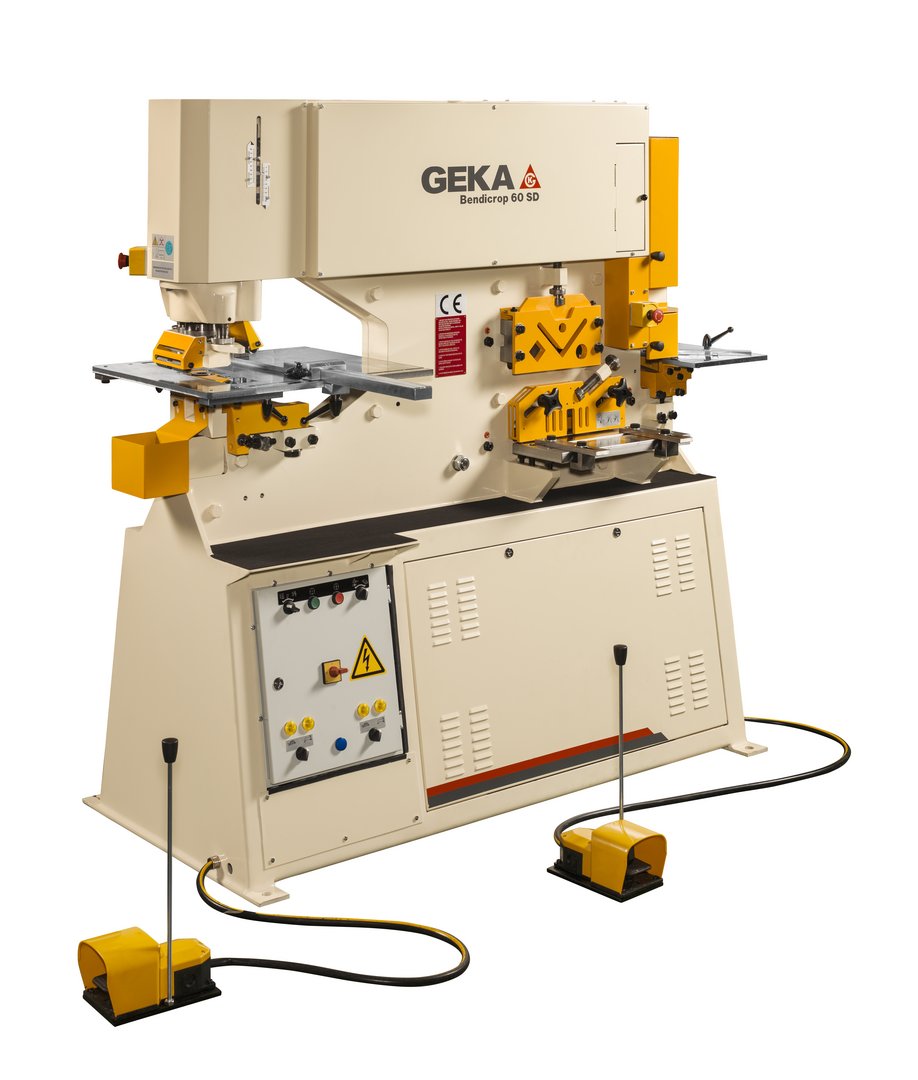

General characteristics
| Punching power | 60 ton |
| Throat depth | 500 mm |
| Number of stations | 5 |
| Cylinder | 2 |
| Max. diameter at sheet thickness (mild steel) | 40x11 mm |
| Strokes | 32 1/min |
| Flat steel | 350x10 mm |
| Angle steel | 120x10 mm |
| Round / square steel | 45/40 mm |
| Notcher | 100x10 mm |
| Bending unit | 150x10 mm |
| Motor | 5.5 kW |
Dimensions and weight
| Length | 2100 mm |
| Width | 1400 mm |
| Height | 2060 mm |
| Weight | 1750 kg |
Description
5 workstations
foot pedal trigger
hydr. drive
flat steel shears incl. Device for reducing the deformation
angle iron scissors with round and square bar opening
triangle claw
punching and bending device for flat iron
table at the flat steel and notching station
user manual in GERMAN and ENGLISH
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
