General characteristics
| Punching power | 60 ton |
| Throat depth | 500 mm |
| Number of stations | 5 |
| Max. diameter at sheet thickness (mild steel) | 40x11 mm |
| Stroke | 32 mm |
| Flat steel | 350x15 mm |
| Angle steel | 120x10 mm |
| Round / square steel | 45/40 mm |
| Bending unit | 150x10 mm |
| Motor | 5.5 kW |
Dimensions and weight
| Length | 1950 mm |
| Width | 2000 mm |
| Height | 1900 mm |
| Weight | 1900 kg |
Description
with bending station
5 working stations
flat steel shear with device to reduce deformation
angle iron shear with round- and squarebars opening
triangle notcher
punching station
press brake device for flat steel
table at flat steel station
table at notching station
length stop 1000 mm with contact switch, for angle, flat or bar station
hydraulic drive
2 foot release
user manual in GERMAN and ENGLISH

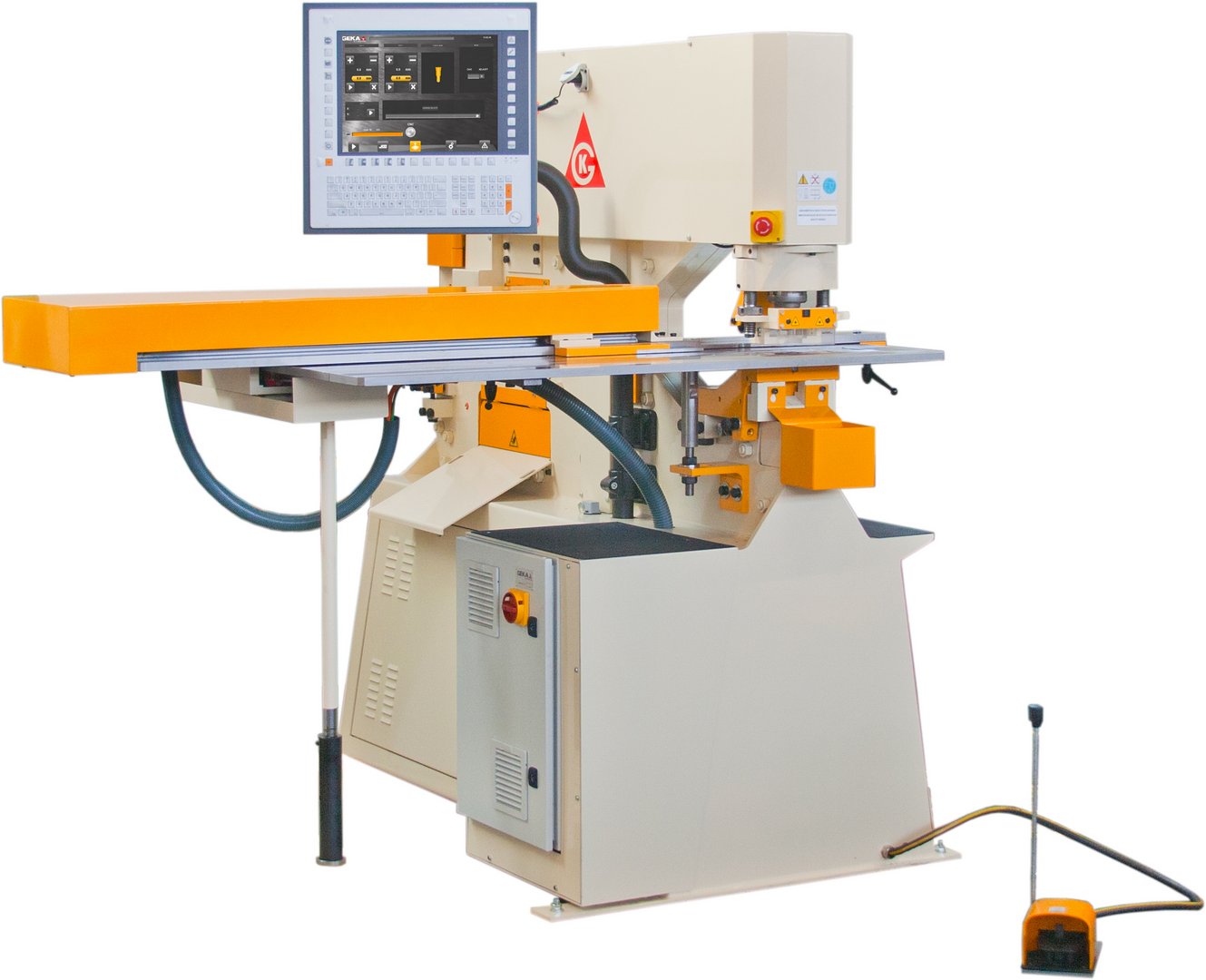

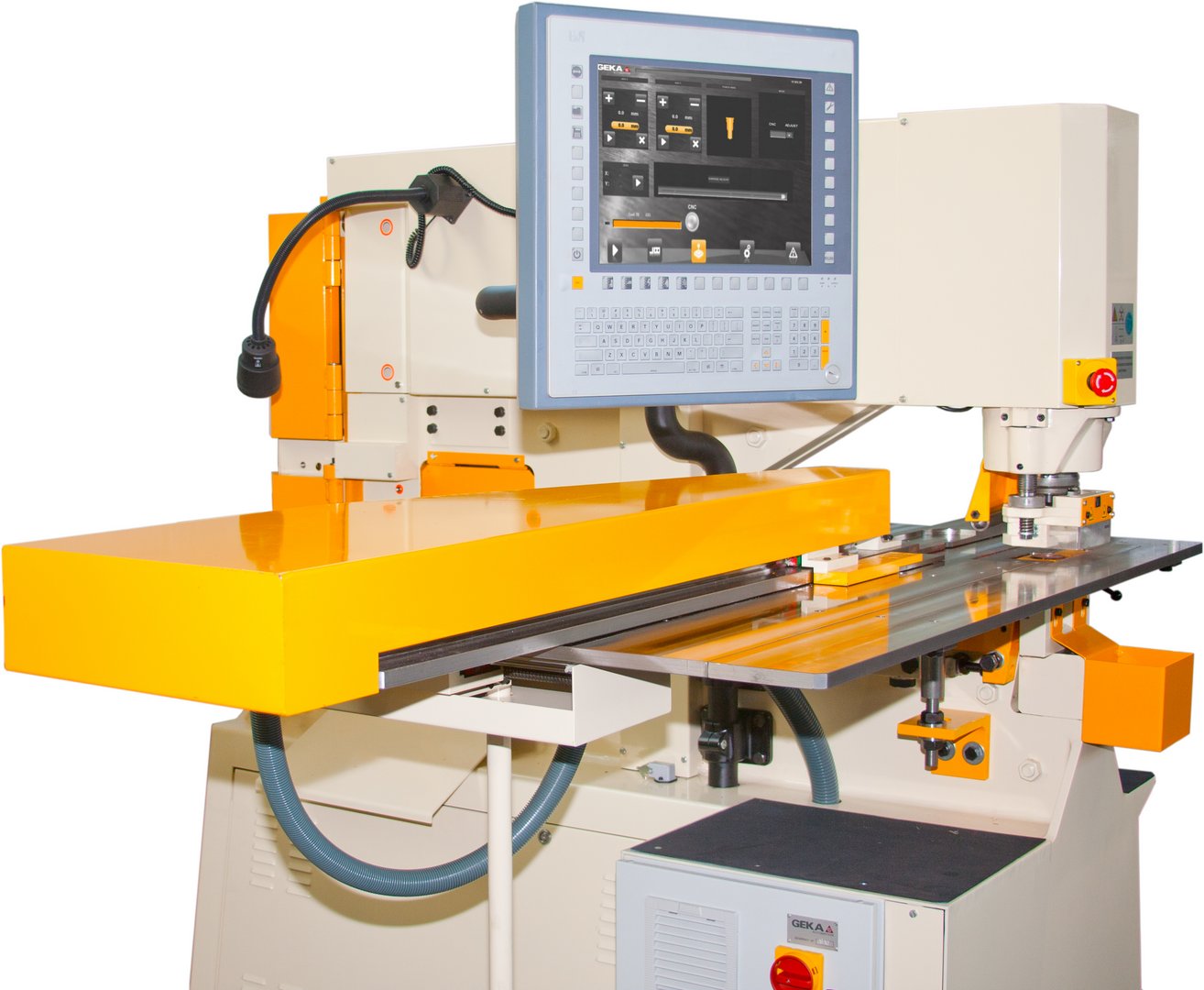

Semipaxy: Increased repeat accuracy instead of time consuming laying out

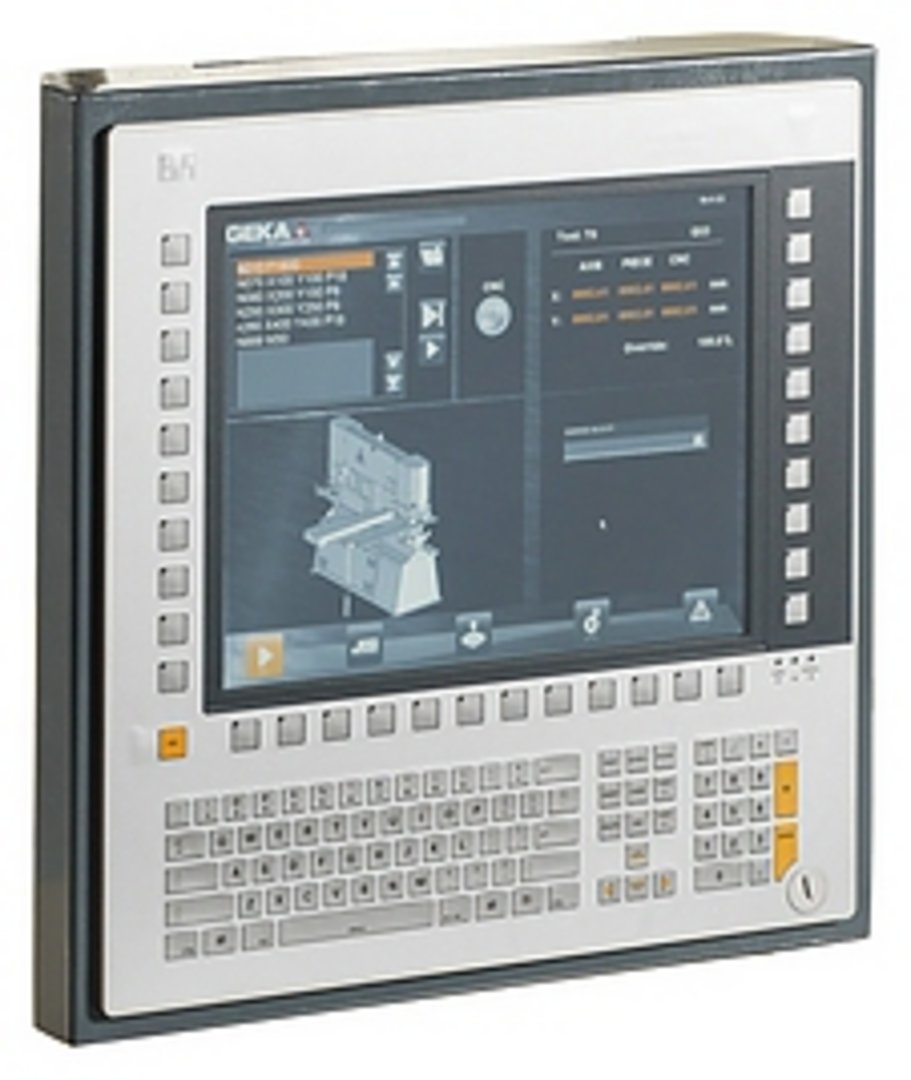

· including B&R 15" CNC with touchscreen and integrated keyboard
· automatic positioning in x- and y axis
· manual feed of sheet to the stop

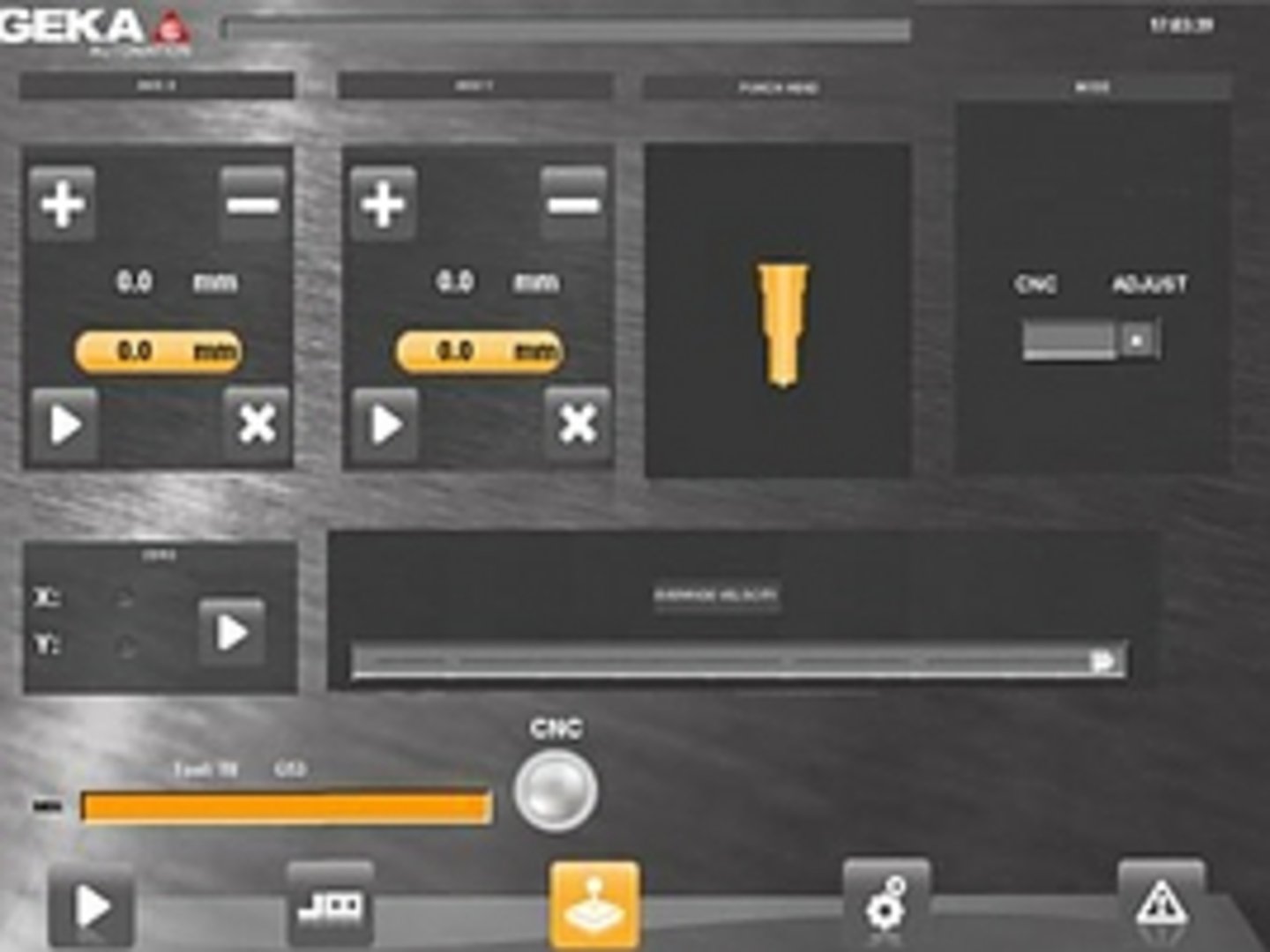

· simple grafic programming by touchscreen
· working area 1.000 x 400 mm
· direct importing of DXF files possible
Further information
Brochures
Product video

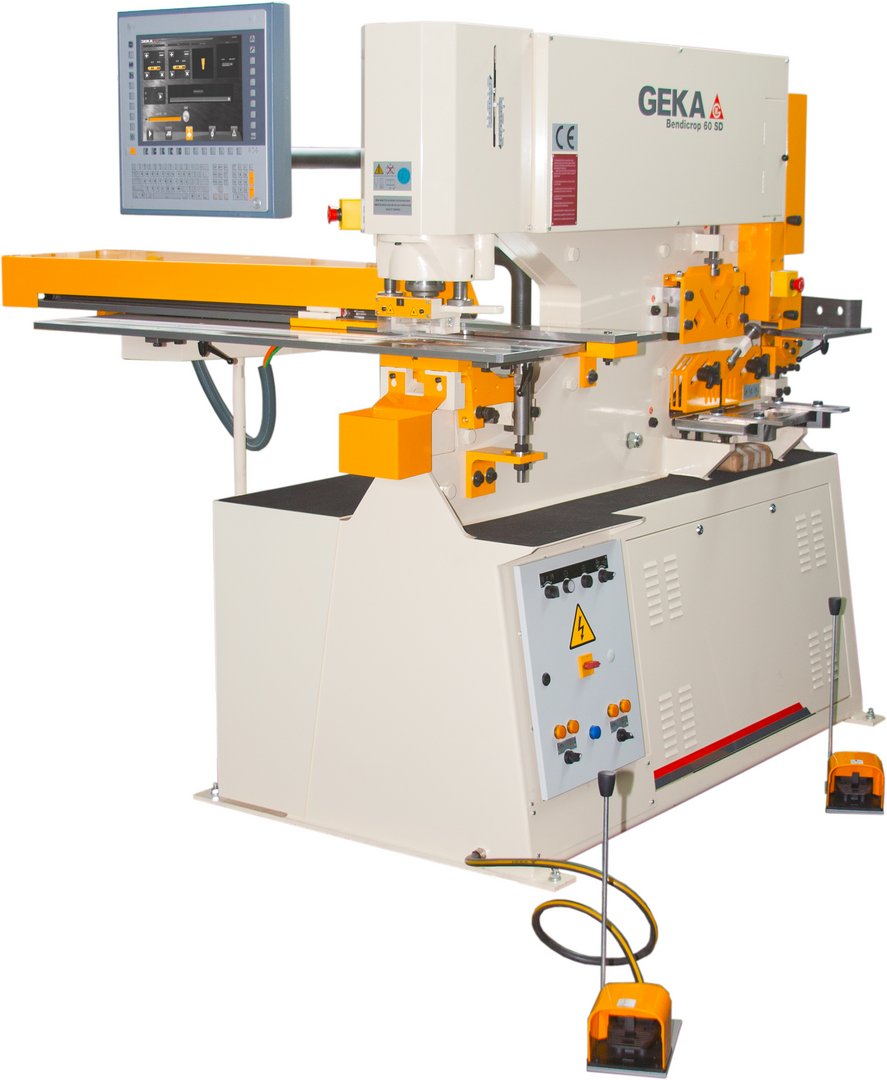

Steelworker Bendicrop 60 SD Semipaxy 1000x400
