General characteristics
| Punching power | 85 ton |
| Throat depth | 300 mm |
| Number of stations | 5 |
| Max. diameter at sheet thickness (mild steel) | 40/15 bzw. 24x24 mm |
| Flat steel | 450x15 / 450x18 mm |
| Blade length | 475 mm |
| Angle steel | 130x130x13 mm |
| Round / square steel | 45/40 mm |
| Notcher | 12 mm |
| Bending unit | 200x12 mm |
| Motor | 9.2 kW |
Dimensions and weight
| Length | 2300 mm |
| Width | 1200 mm |
| Height | 2100 mm |
| Weight | 2400 kg |
Description
hydraulic drive
2 foot pedals for independant working on punching and section station

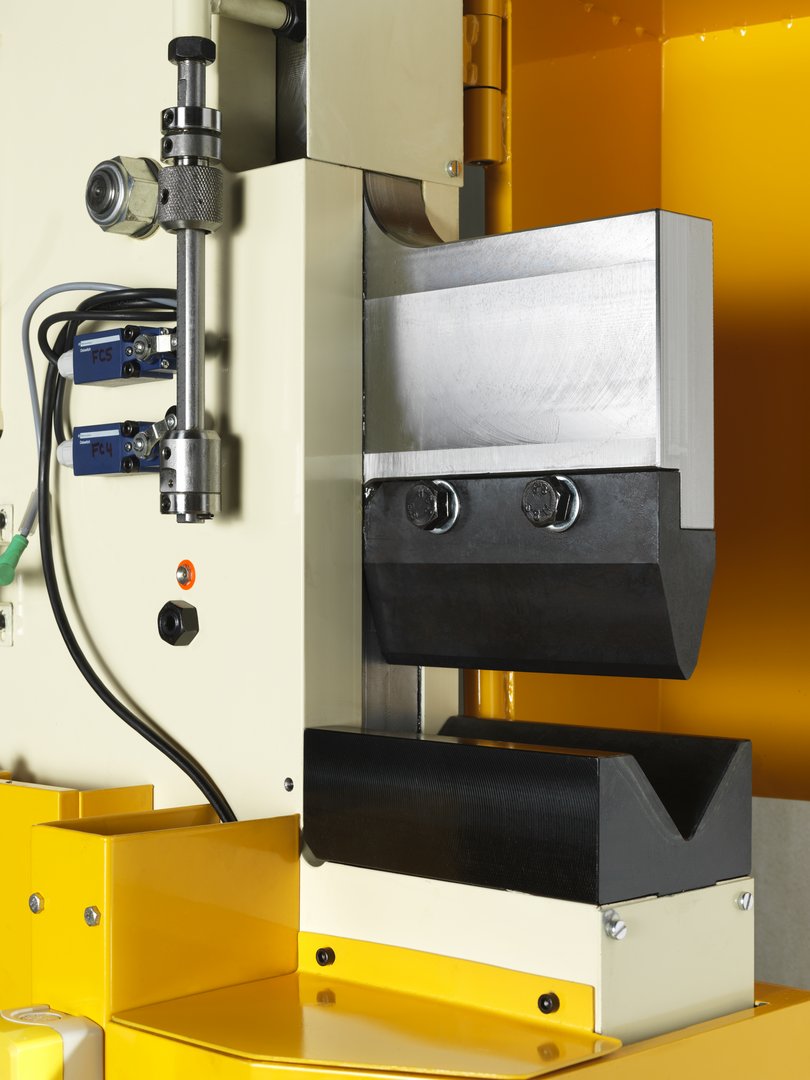

bending unit with 2 dies, V40 and V70
flat steel station with device for reducing deformation
angle iron station with round and square bar cutting
triangular notching station with table and gauge
punching station with table and gauge
gauge 1000 mm with contact switch, for angle / flat steel station
operating manual in German and Englisch
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
