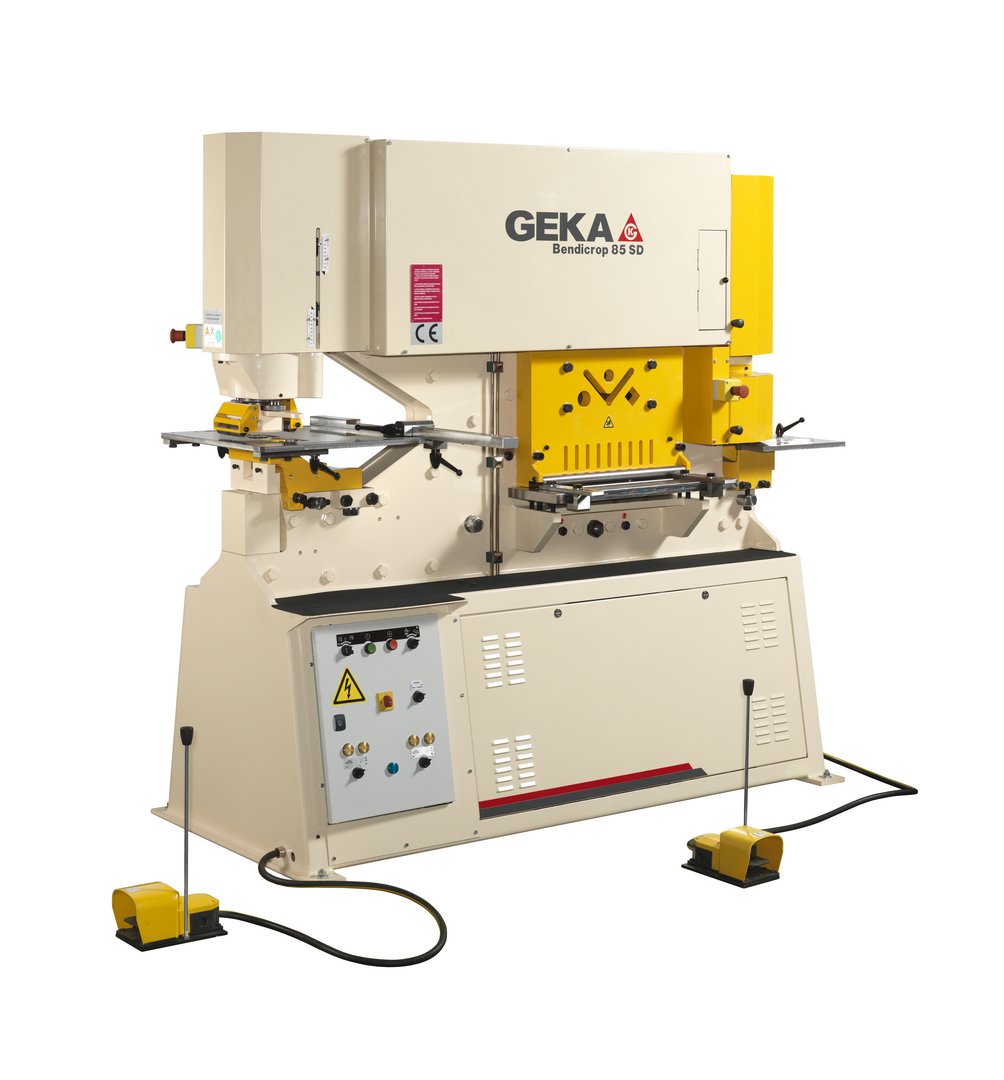

General characteristics
| Punching power | 85 ton |
| Throat depth | 500 mm |
| Number of stations | 5 |
| Max. diameter at sheet thickness (mild steel) | 40/15 bzw. 24x24 mm |
| Flat steel | 450x15 / 450x18 mm |
| Blade length | 475 mm |
| Angle steel | 130x130x13 mm |
| Round / square steel | 45/40 mm |
| Notcher | 12 mm |
| Bending unit | 200x12 mm |
| Motor | 9.2 kW |
Dimensions and weight
| Length | 2300 mm |
| Width | 1200 mm |
| Height | 2100 mm |
| Weight | 2400 kg |
Description
hydraulic drive
2 foot pedals for independant working on punching and section station

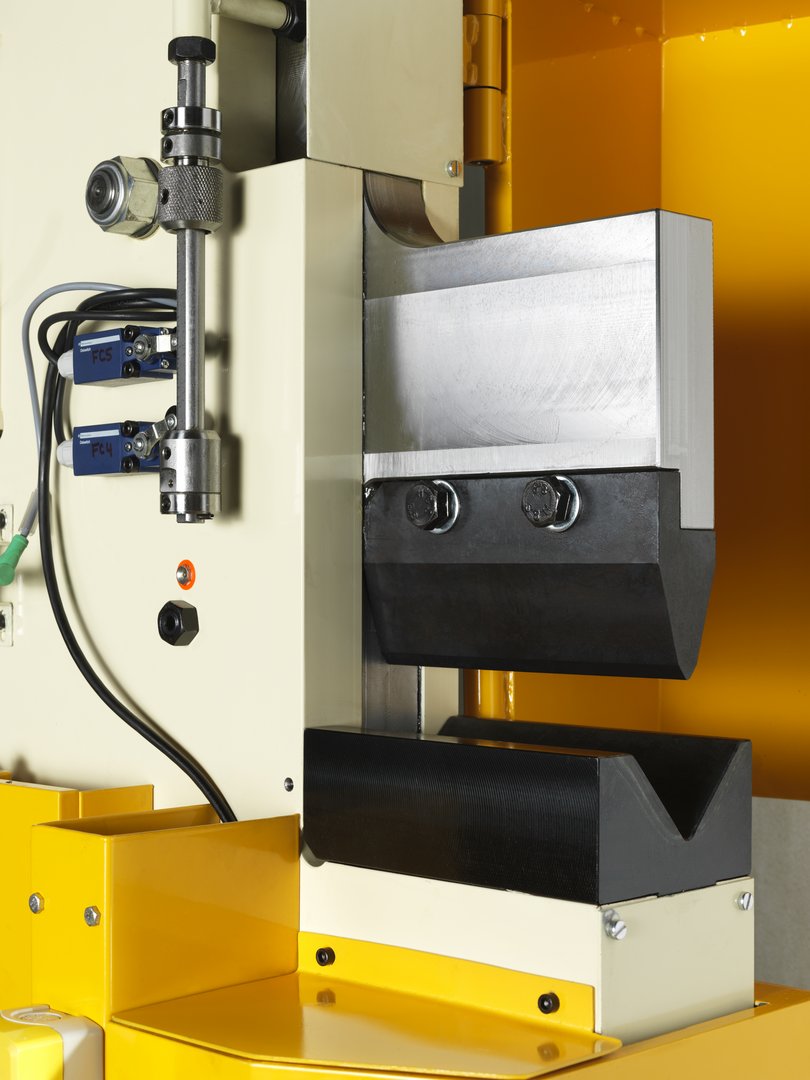

bending unit with 2 dies, V40 and V70
flat steel station with device for reducing deformation

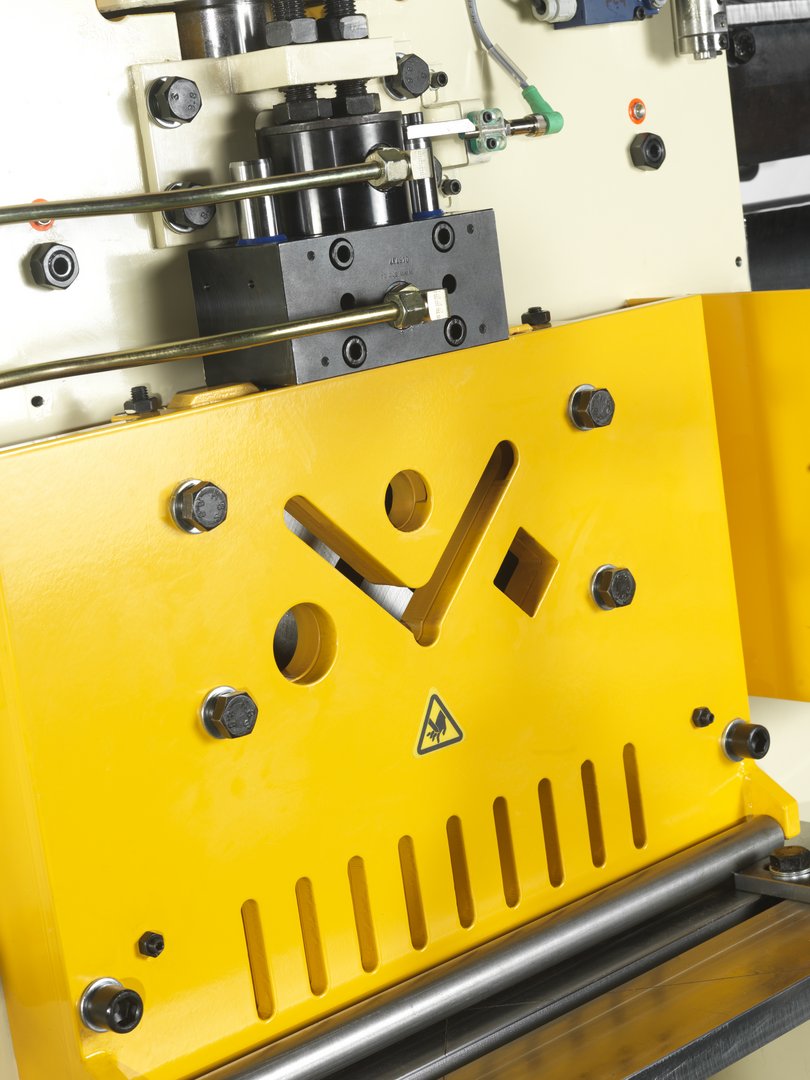

angle iron station with round and square bar cutting
hydraulic downhold for flat- and angle station
triangular notching station with table and gauge
punching station with table and gauge
gauge 1000 mm with contact switch, for angle / flat steel station
operating manual in German and Englisch
