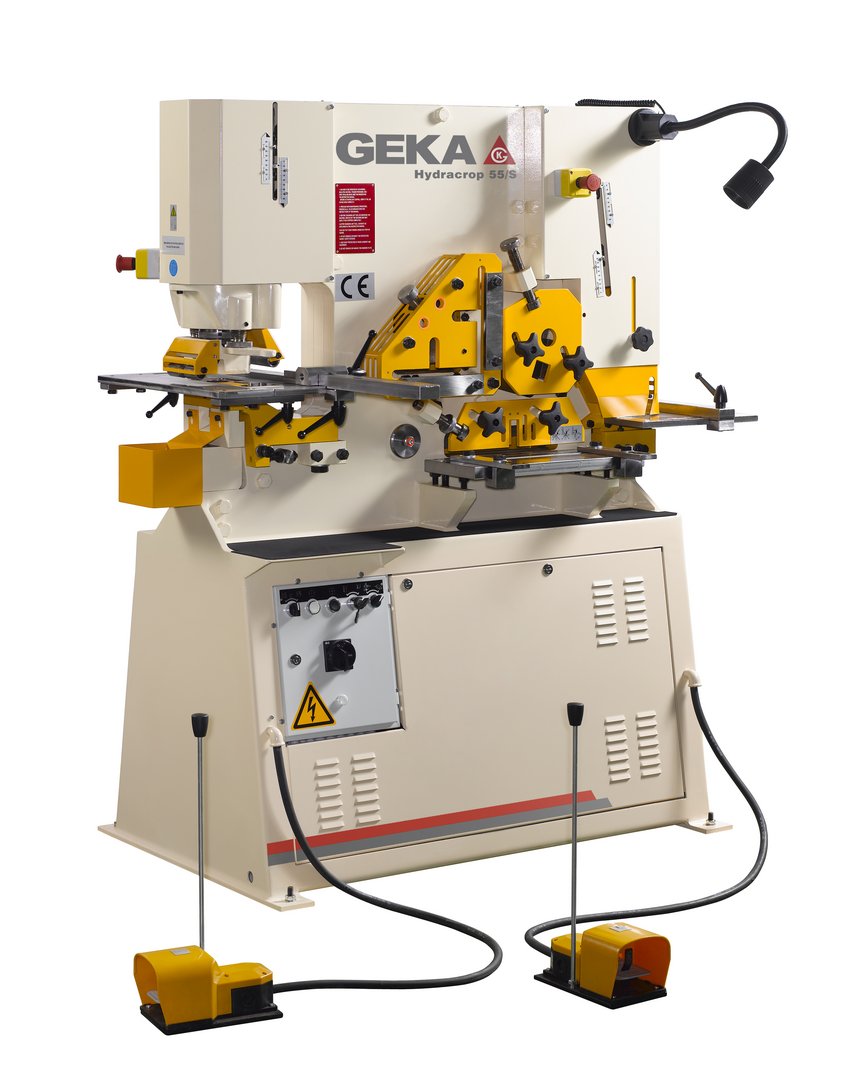

Steelworker GEKA HYD 55 S
| Model | HYD 55 S |
| Brand | GEKA |
| Condition | new |
| Year of manufacture | 2025 |
| Punching power | 55 ton |
| Max. diameter at sheet thickness (mild steel) | 40/10 mm |
| Stock number | 90054 |
| Origin | Spain |
General characteristics
| Punching power | 55 ton |
| Throat depth | 250 mm |
| Number of stations | 5 |
| Max. diameter at sheet thickness (mild steel) | 40/10 mm |
| Stroke | 20 mm |
| Strokes | 37 1/min |
| Flat steel | 300x15 mm |
| Angle steel | 120x10 mm |
| Round / square steel | 40 mm |
| Notcher | 10 mm |
| Motor | 5 kW |
Dimensions and weight
| Length | 1670 mm |
| Width | 1160 mm |
| Height | 2090 mm |
| Weight | 1390 kg |
Description
2 foot pedal for independent working on 2 stations
flatsteel station
anglesteel station
round- and square steel station
rectangular notching station
punching station
table on flat steel station
table on punching station
table on notching station
complete with hydraulic oil
user manual in GERMAN and ENGLISH
Option:
Kit € 930,00
length stop 1000 mm with contact switch, for angle, flat or bar station
magnetic machine lamp
10 set round punches and dies: 8, 10, 12, 14, 16, 18, 20, 22, 24 and 26 mm
