General characteristics
| Punching power | 55 ton |
| Throat depth | 500 mm |
| Number of stations | 5 |
| Max. diameter at sheet thickness (mild steel) | 40/10 bzw. 20/20 mm |
| Stroke | 20 mm |
| Strokes | 37 1/min |
| Flat steel | 300x15 / 200x20 mm |
| Notcher | 10x42x90 mm |
| Motor | 5 kW |
Dimensions and weight
| Length | 2100 mm |
| Width | 1160 mm |
| Height | 2090 mm |
| Weight | 1750 kg |

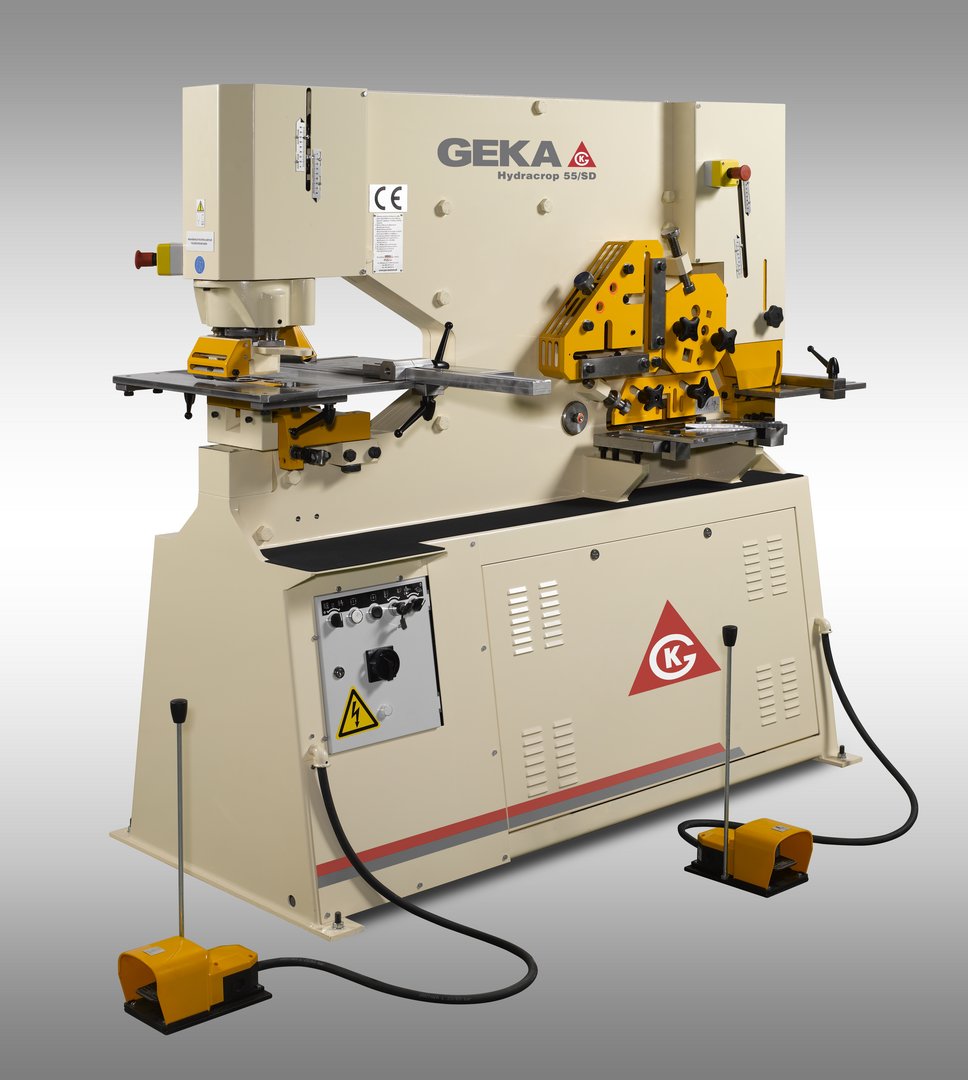

Description
2 foot pedals for independent work at 2 stations
hydr. drive
flat bar shear
angle bar shear with minimum deformation
by diagonal moving of the blade
round and square bar shear
rectangular notching unit
punching unit up to diam. 40 mm
fast hydraulic, Ankörnvorrichtung
oilfilling
table at the punching station with gauge
table at the notching unit with gauge
table at the flat bar shear
user manual in GERMAN and ENGLISH
Option:
Kit € 930,00
length stop 1000 mm with contact switch, for angle, flat or bar station
magnetic machine lamp
10 set round punches and dies: 8, 10, 12, 14, 16, 18, 20, 22, 24 and 26 mm
