Steelworker GEKA HYD 165 SD
| Model | HYD 165 SD |
| Brand | GEKA |
| Condition | new |
| Punching power | 165 ton |
| Max. diameter at sheet thickness (mild steel) | 40/30 bzw. 34/34 mm |
| Origin | Spain |
General characteristics
| Punching power | 165 ton |
| Throat depth | 610 mm |
| Number of stations | 5 |
| Max. diameter at sheet thickness (mild steel) | 40/30 bzw. 34/34 mm |
| Stroke | 110 mm |
| Strokes | 31 1/min |
| Flat steel | 750x20 / 400x30 mm |
| Angle steel | 205x205x18 mm |
| Round / square steel | 60 mm |
| Notcher | 16x58x110 mm |
| Motor | 15 kW |
Dimensions and weight
| Length | 2950 mm |
| Width | 1600 mm |
| Height | 2200 mm |
| Weight | 6300 kg |
Description
2 foot pedals for independent work at 2 stations
hydr. drive
flat bar shear
angle bar shear with minimum deformation by diagonal moving of the blade
round and square bar shear
rectangular notching unit
punching unit up to diam. 40 mm
fast hydraulic, centring device
oilfilling
table at the punching station with gauge
table at the notching unit with gauge
table at the flat bar shear
user manual in GERMAN and ENGLISH

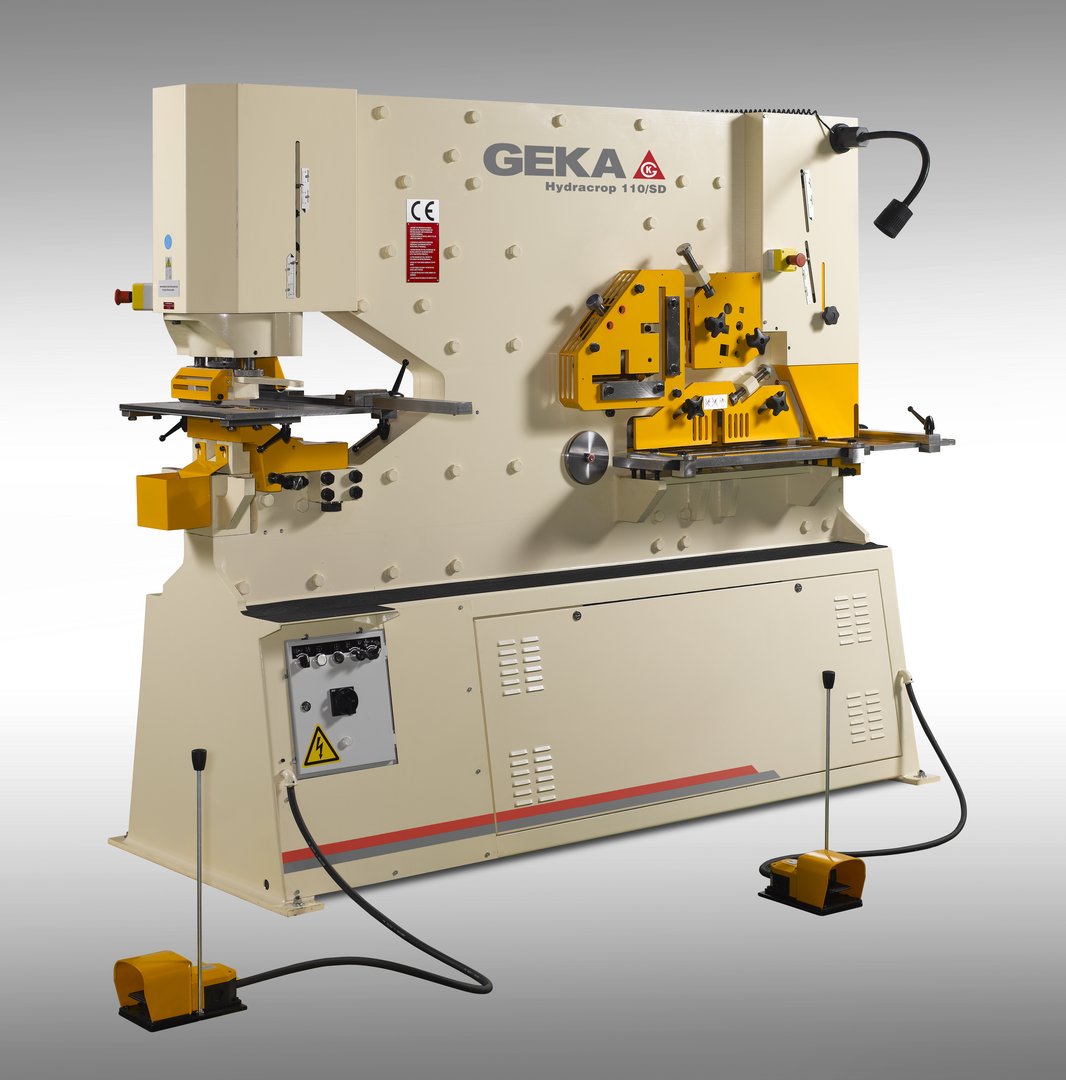

(sample photos)
| Option "Kit" | € 930,-- |
length stop 1000 mm with contact switch, for angle, flat or bar station
magnetic machine lamp
10 set round punches and dies: 8, 10, 12, 14, 16, 18, 20, 22, 24 and 26 mm
| Further available models of HYD 165 series: | |
| model S | € 55.200,-- |
| as model SD but 510 mm gap | |
| weight 5.200 kg |
(sample photos)
