General characteristics
| Punching power | 80 ton |
| Throat depth | 300 mm |
| Number of stations | 5 |
| Max. diameter at sheet thickness (mild steel) | 40/14 bzw. 24/24 mm |
| Stroke | 70 mm |
| Strokes | 40 1/min |
| Flat steel | 450x15 / 300x20 mm |
| Angle steel | 130x130x13 mm |
| Round / square steel | 45 mm |
| Notcher | 12x52x90 mm |
| Motor | 9 kW |
Dimensions and weight
| Length | 2310 mm |
| Width | 1200 mm |
| Height | 2050 mm |
| Weight | 2070 kg |
Description
2 foot pedals for independent work at 2 stations
hydr. drive
flat bar shear
angle bar shear with minimum deformation by diagonal moving of the blade
round and square bar shear
rectangular notching unit
punching unit up to diam. 40 mm
standard hydraulic, centring device
oilfilling

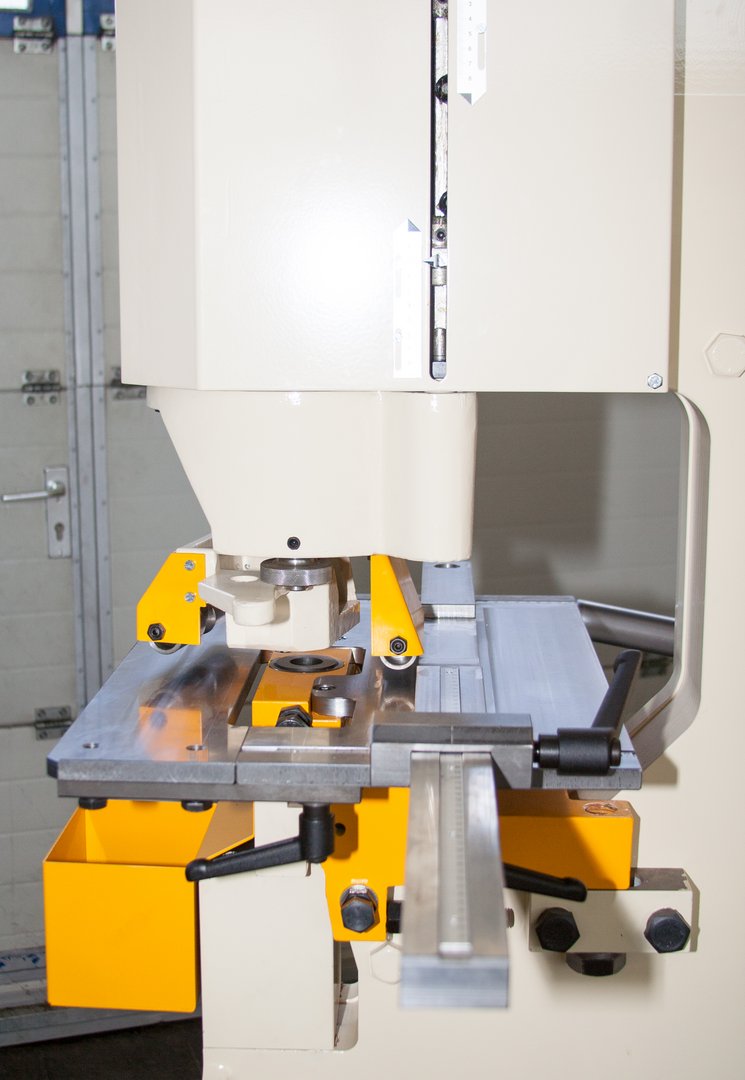

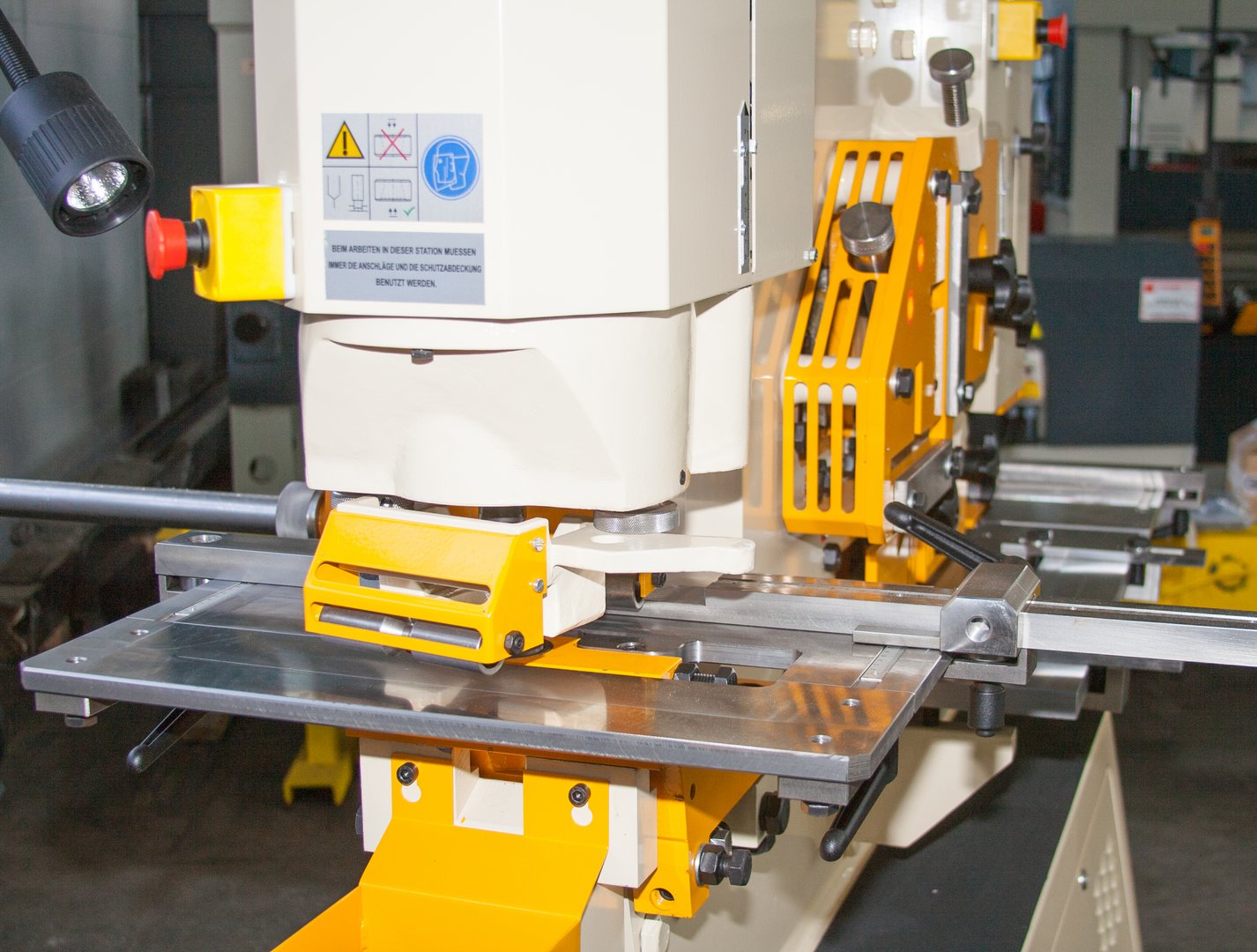

table at the punching station with gauge
table at the notching unit with gauge
table at the flat bar shear
user manual in GERMAN and ENGLISH

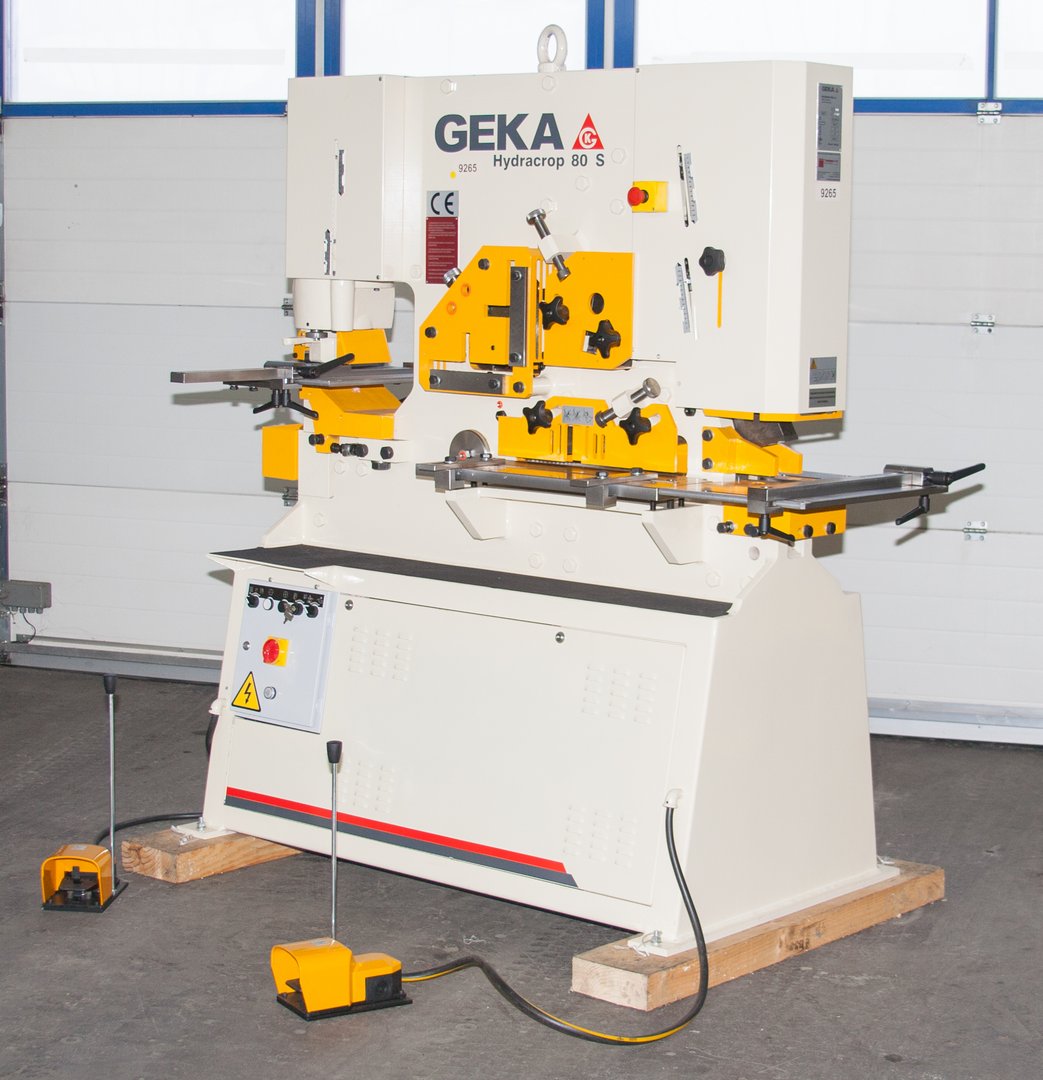

(sample photo shows mod. hyd 80 SD)
| option "Kit" | EURO 970,-- |

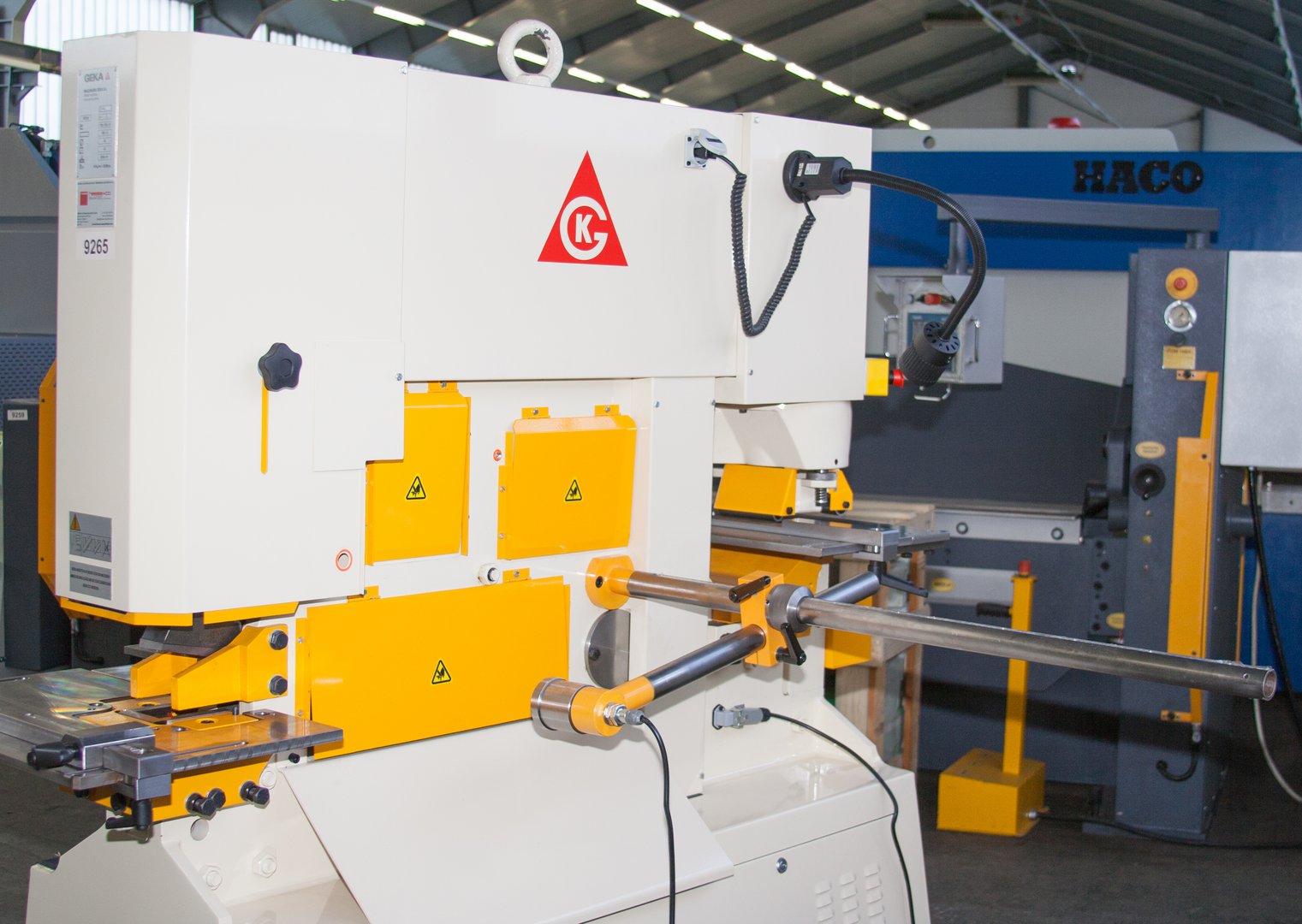

length stop 1000 mm with contact switch, for angle, flat or bar station
magnetic machine lamp
10 set round punches and dies: 8, 10, 12, 14, 16, 18, 20, 22, 24 and 26 mm
| Further available models of HYD 80 series: | |
| model SD | EURO 23.700,-- |
| as model S but 500 mm gap | |
| weight 2.400 kg |
We have more than 700 references!
