General characteristics
Dimensions and weight
Description

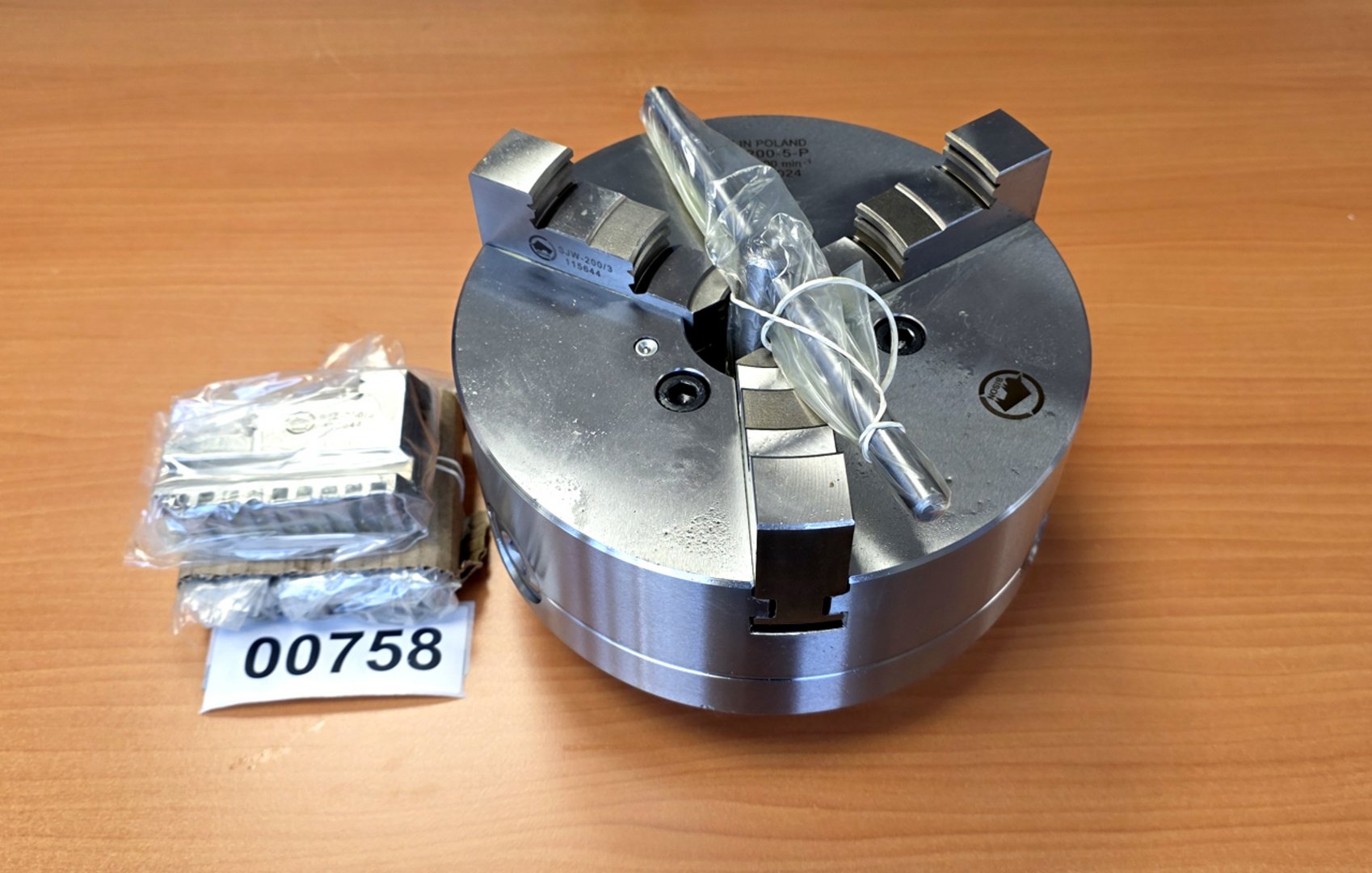

The Bison 3544-200-5-P is a 3-jaw precision flat-spiral chuck with a diameter of 200 mm (8 inches) and an integrated size 5 Camlock short-taper mount in accordance with DIN 55029. The suffix ‘P’ (Premium/Precision) denotes the highest accuracy class (Class 1).
Key technical features:
- Chuck type: 3-jaw centring chuck (self-centring).
- Body material: Robust, forged steel for high speeds and a long service life.

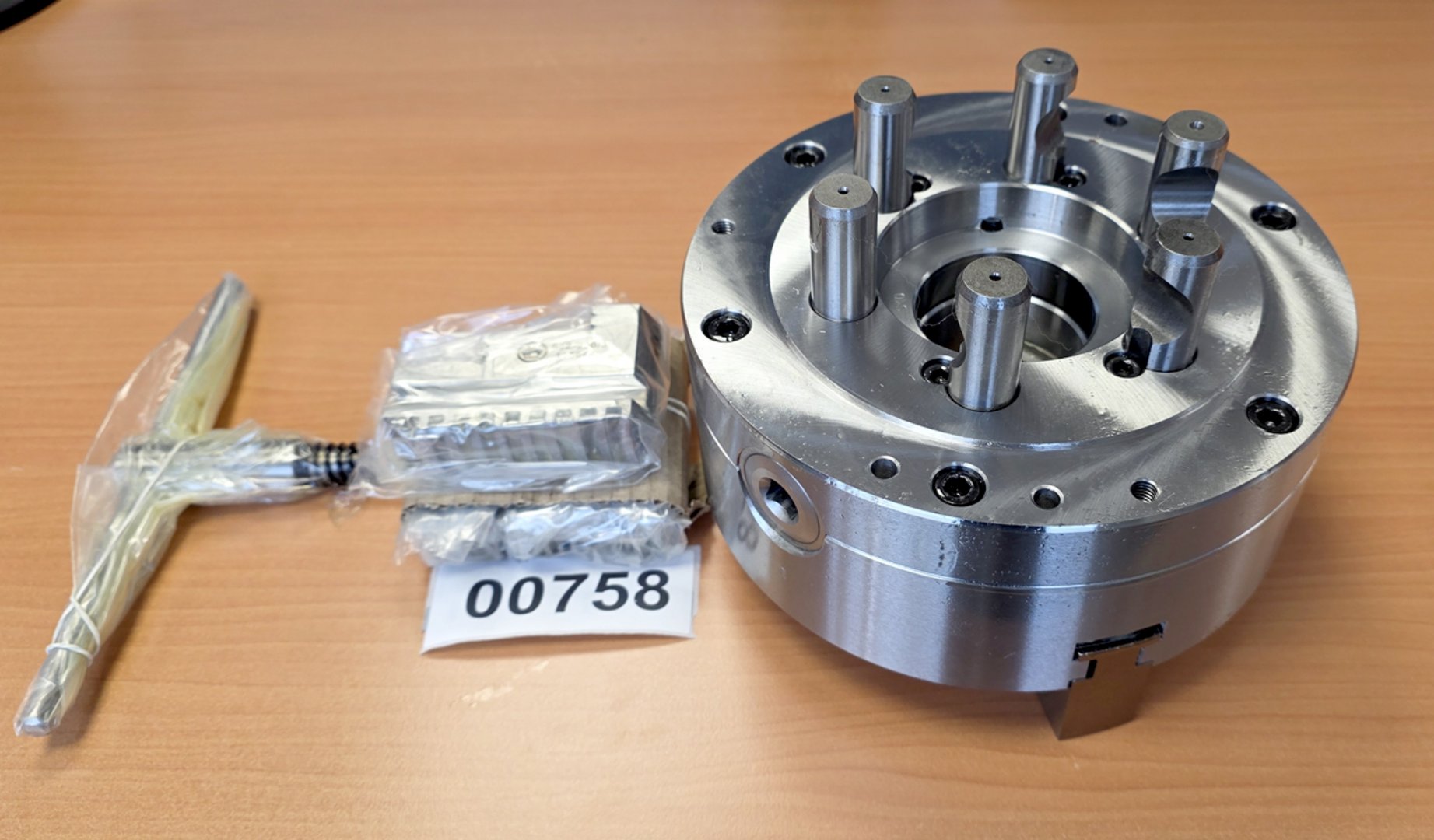

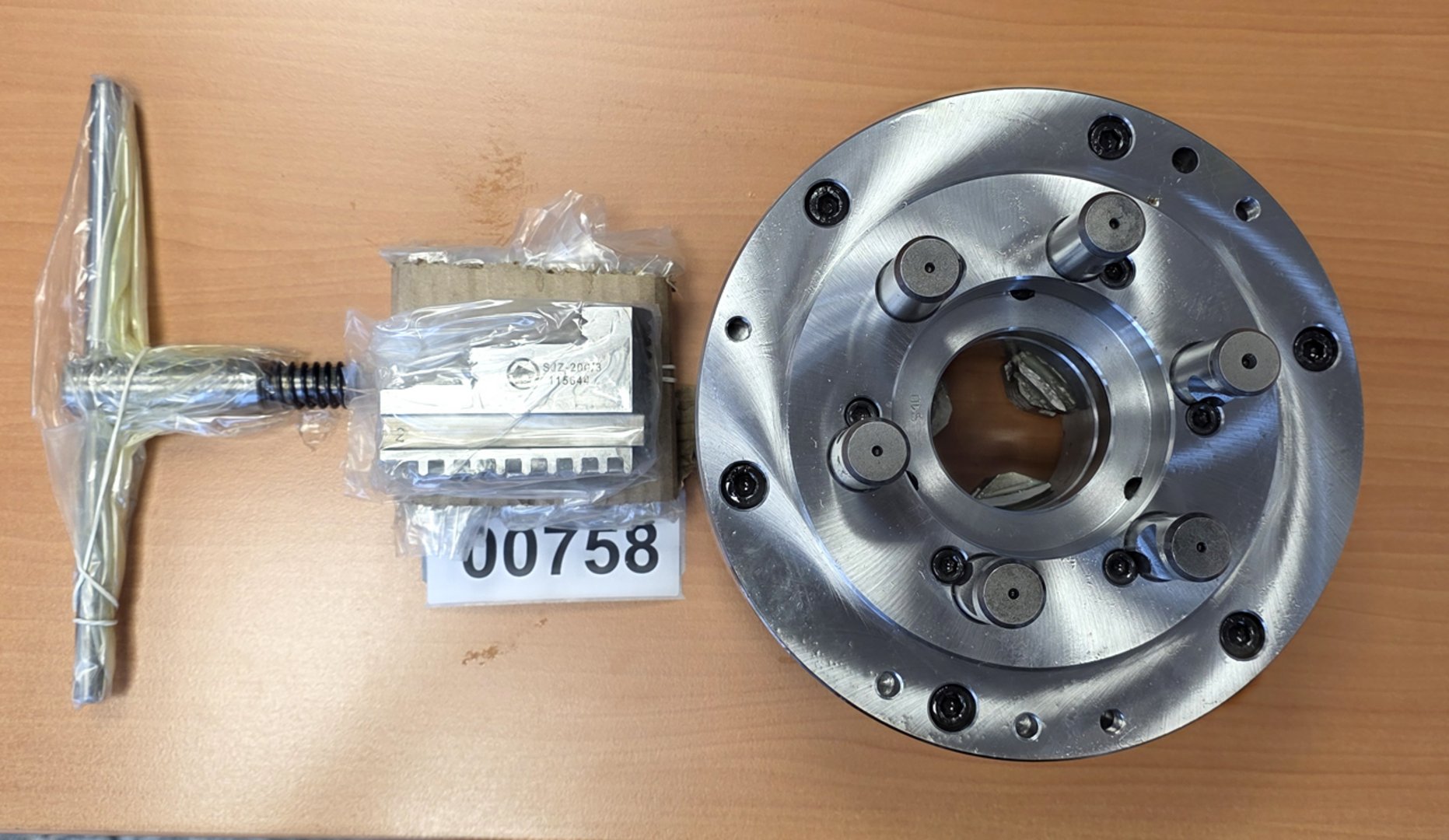

- Mounting: Camlock Type D (DIN 55029), taper size 5. Mounting is carried out directly via the stud bolts on the machine spindle, without the need for an additional flange plate.
- Accuracy class: Precision class (First Class Accuracy / Class 1).
- Through-bore: Yes, with a clear passage of 55 mm.

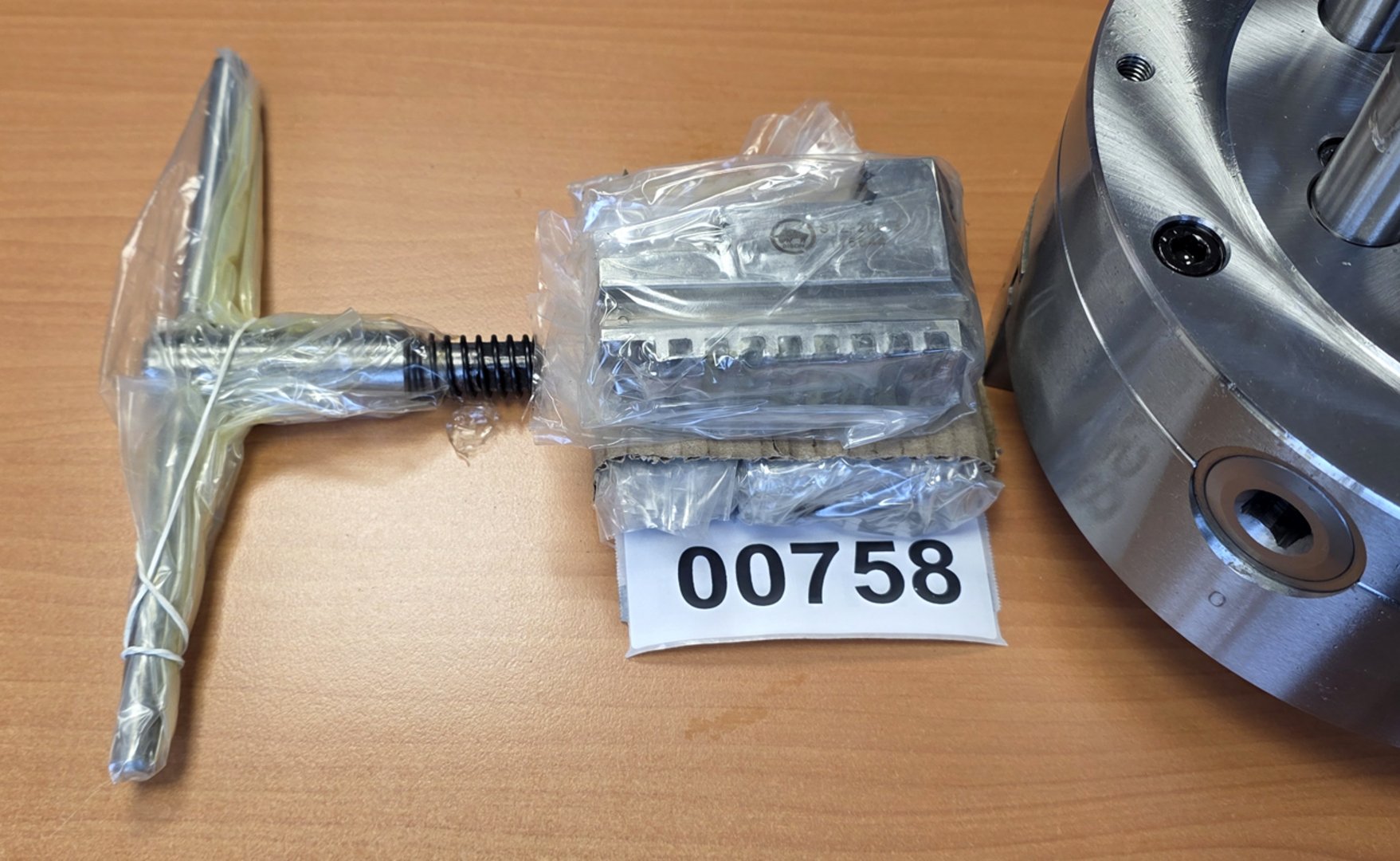

- Jaw type: One-piece, hard solid jaws. The scope of supply includes one set of drilling jaws and one set of turning jaws as standard.
Quality features
- Durability: Hardened and ground working and guide surfaces ensure repeatability over the long term.
- Smooth running: A balanced flat spiral reduces vibrations to a minimum at high speeds.
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
