General characteristics
| Round tube | 42 x 2,5 mm |
| Square tube | 40 x 1,2 mm |
| Rect. tube easy way | 30 x 40 x 1,7 mm |
| Rect. tube hard way | 40 x 30 x 1,3 mm |
| Max. bending radius | 255 mm |
| Min. bending radius | 22 mm |
| Max. bending angle | 180 ° |
| Speed | 90 °/s |
| Motor | 5 kW |
| Hydraulic oil capacity | 120 l |
Dimensions and weight
| Length | 4665 mm |
| Width | 800 mm |
| Height | 1160 mm |
| Weight | 1470 kg |
Description
Capacity specifications refer to 400 N/mm²
Maximum bending radius with pipe guide rollers: 255 mm
Maximum bending radius with pipe guide slide: 175 mm
Minimum bending angle: 4°
Maximum usable length without positioning device: 3900 mm
Maximum usable length with positioning device: 3370 mm
Adjustable mandrel extension travel from 8 mm
Opening and closing travel of the counter-clamping jaws: 0-45 mm
Opening and closing travel of the rollers or slides: 12-22-42 mm
Operating manual in German
Machine does not comply with AMVO or UVV regulations
Tools not included
Further information
Product video

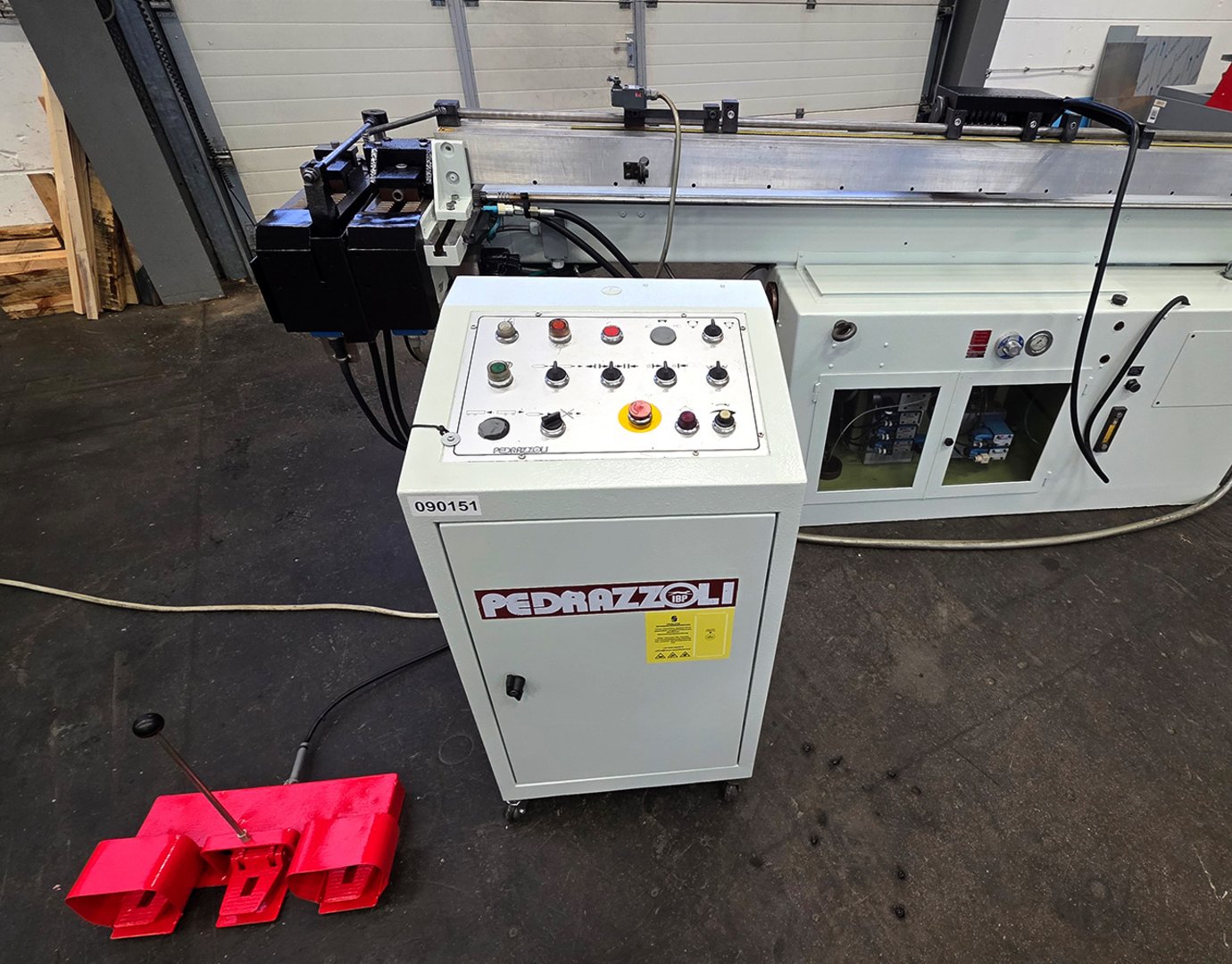

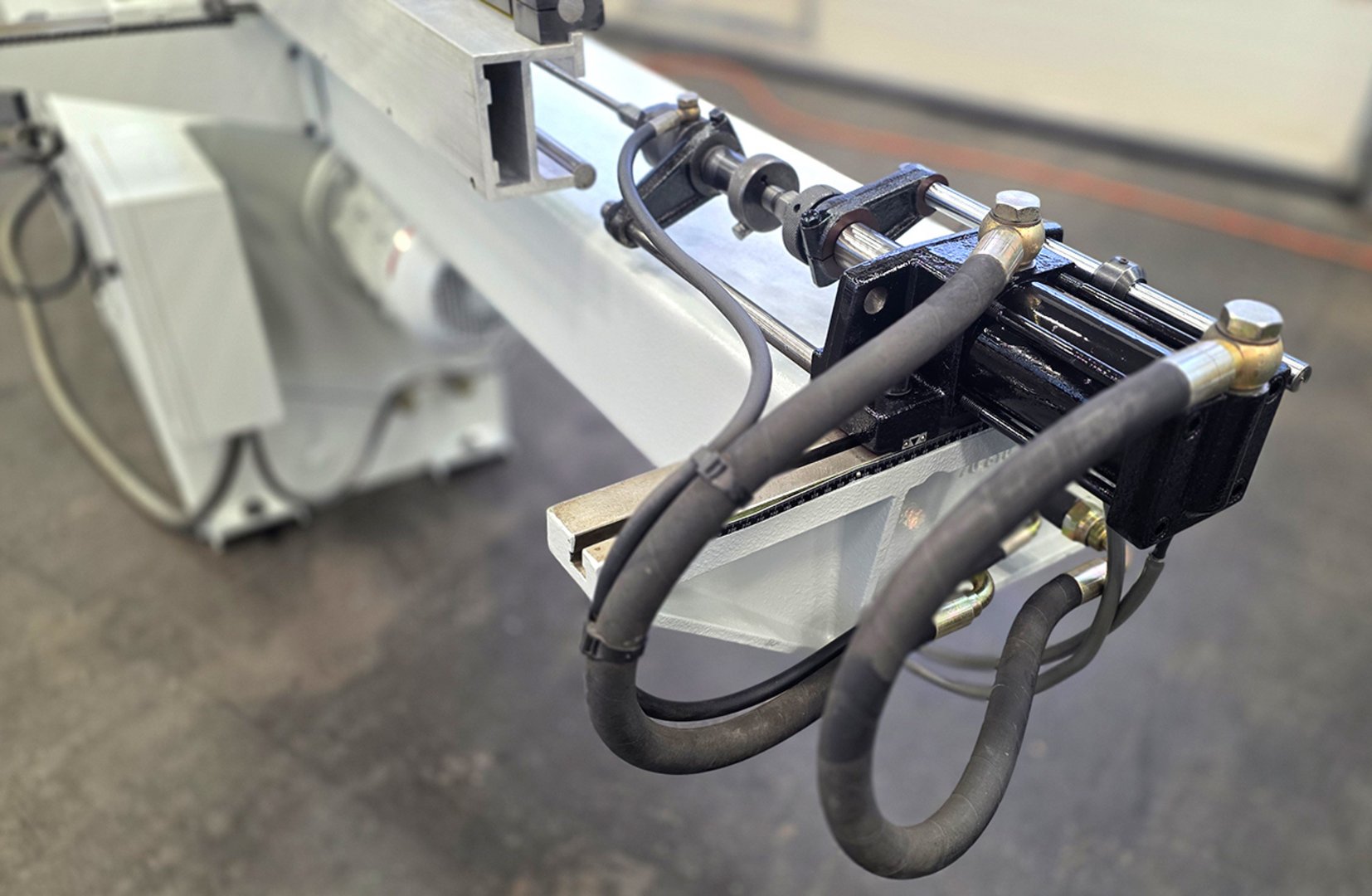

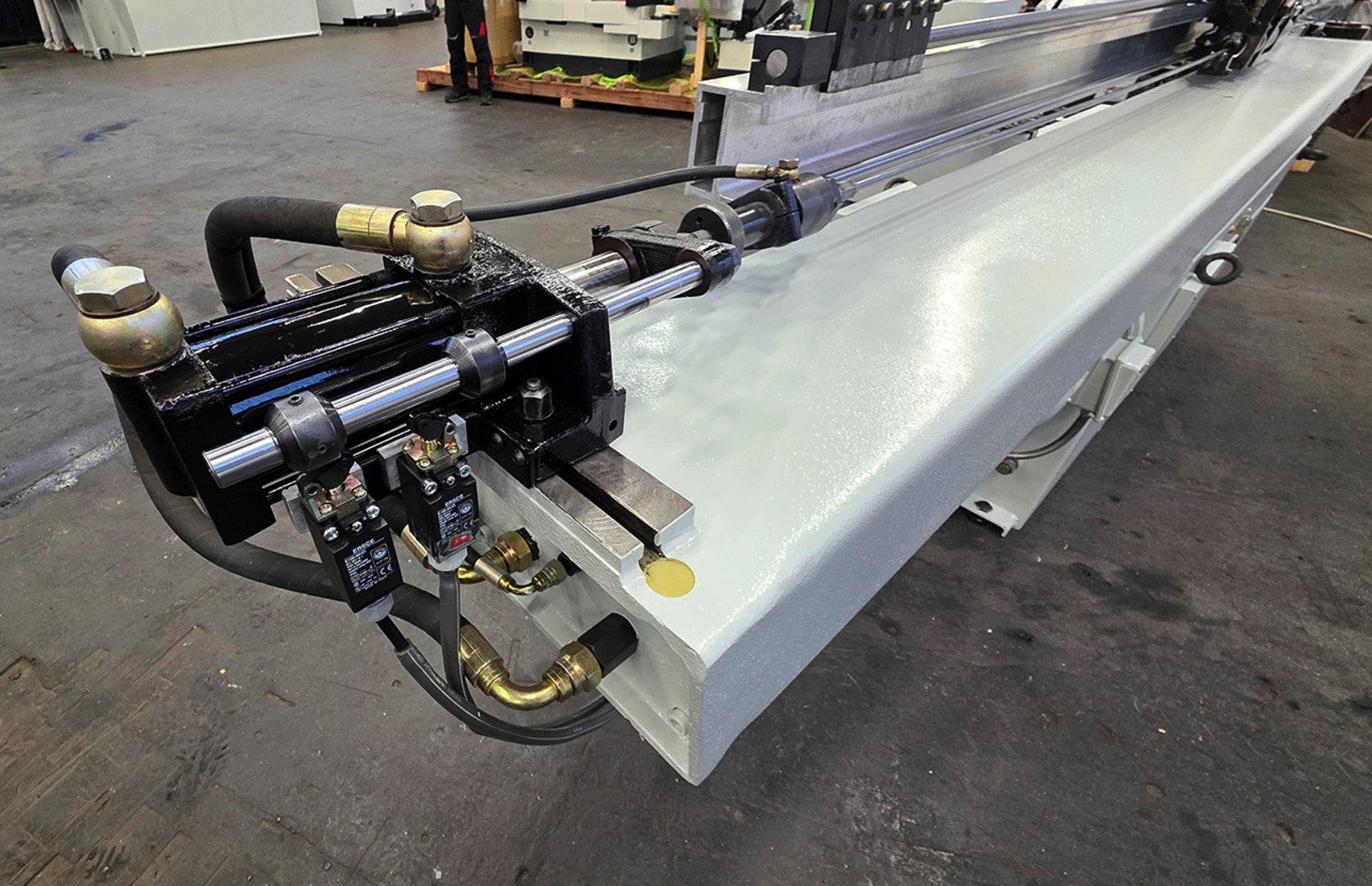

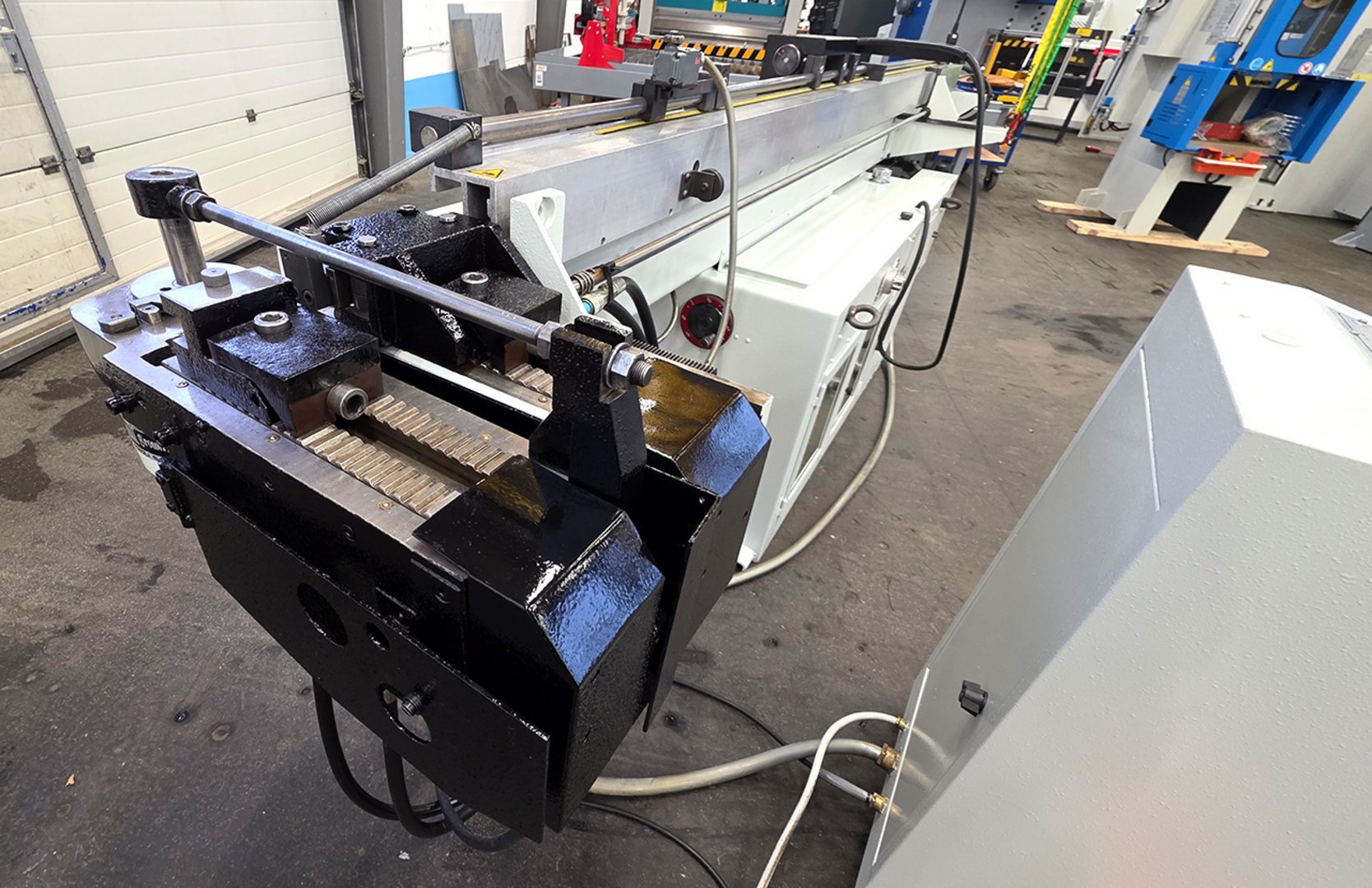

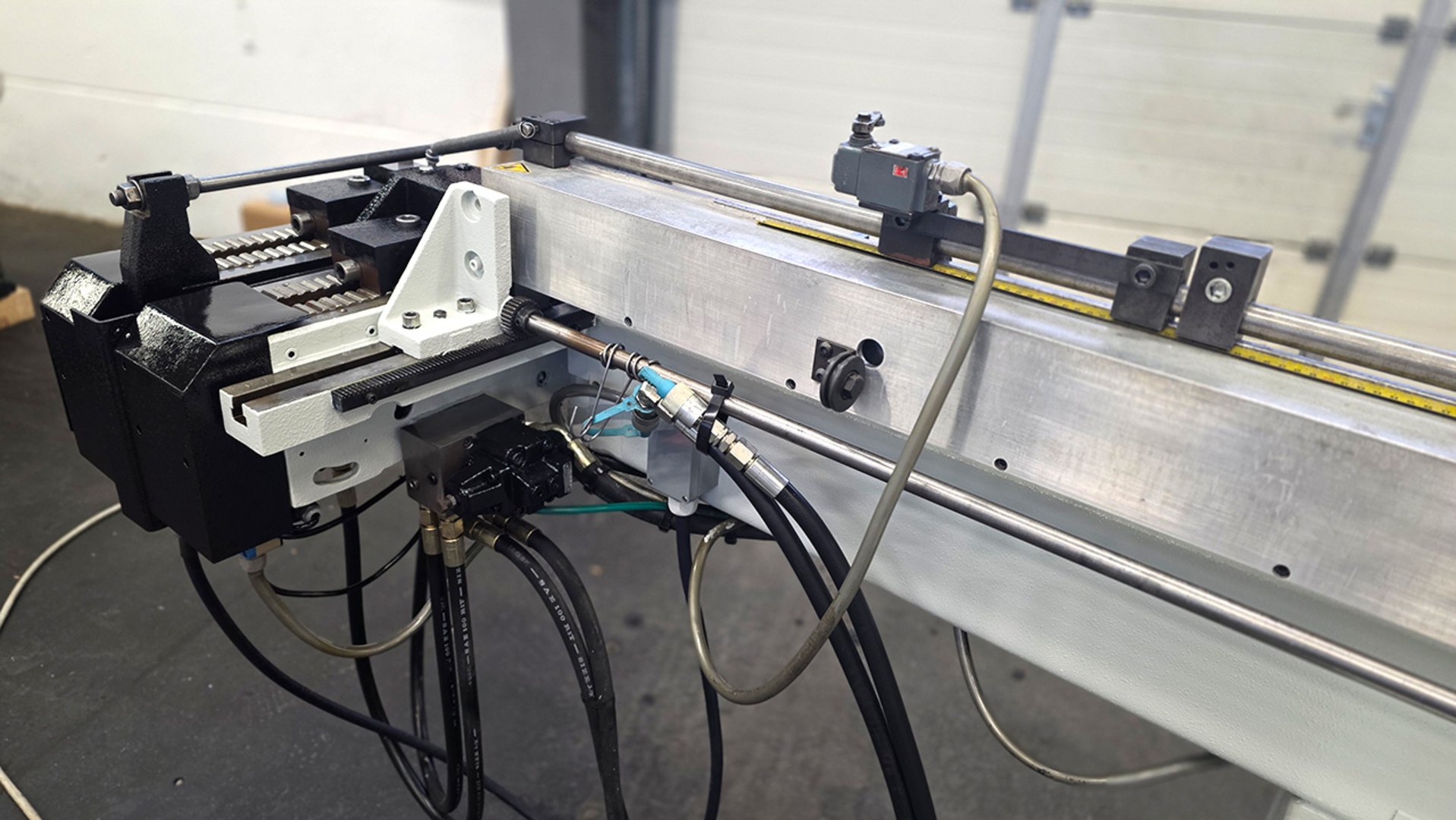

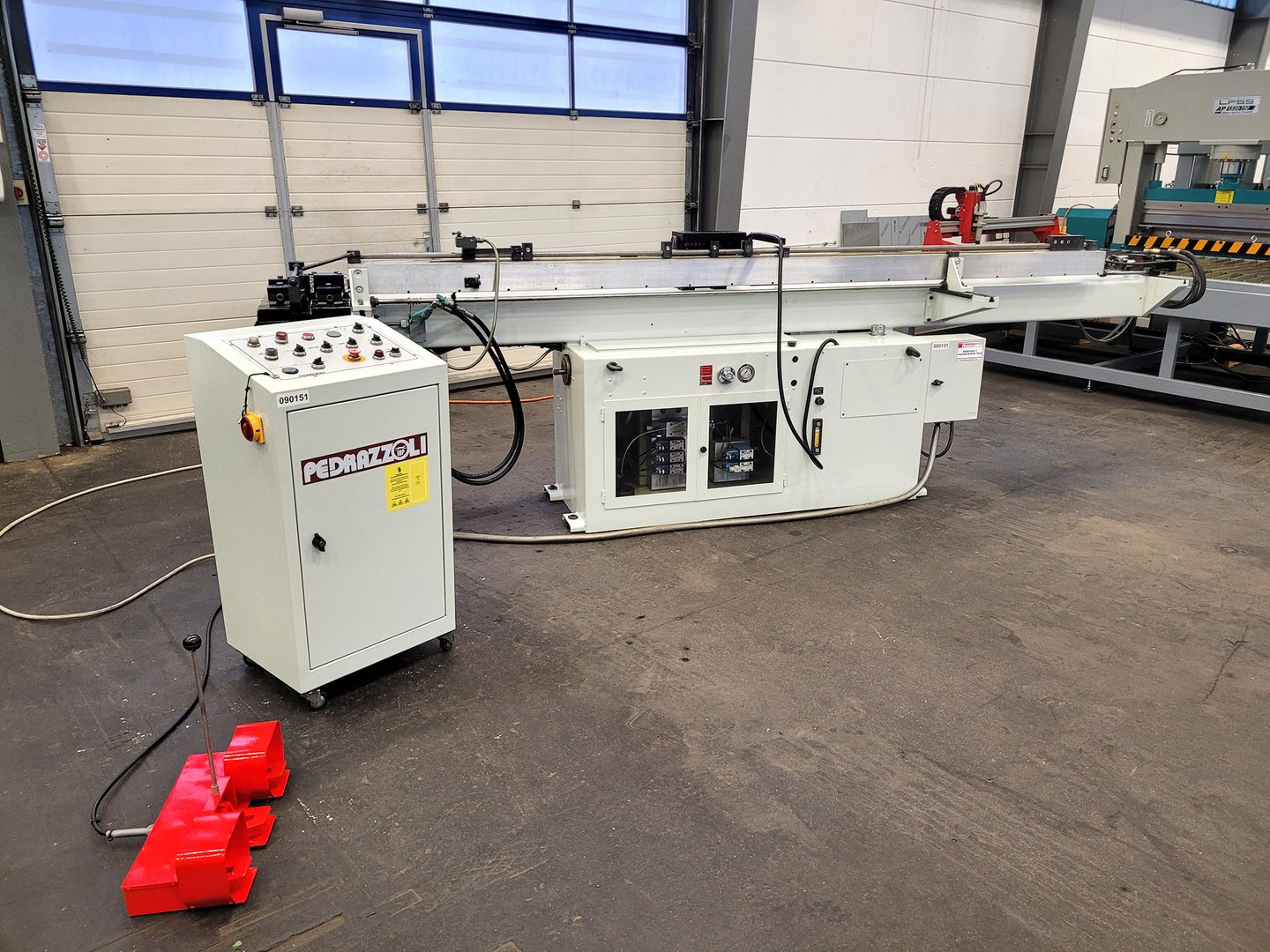

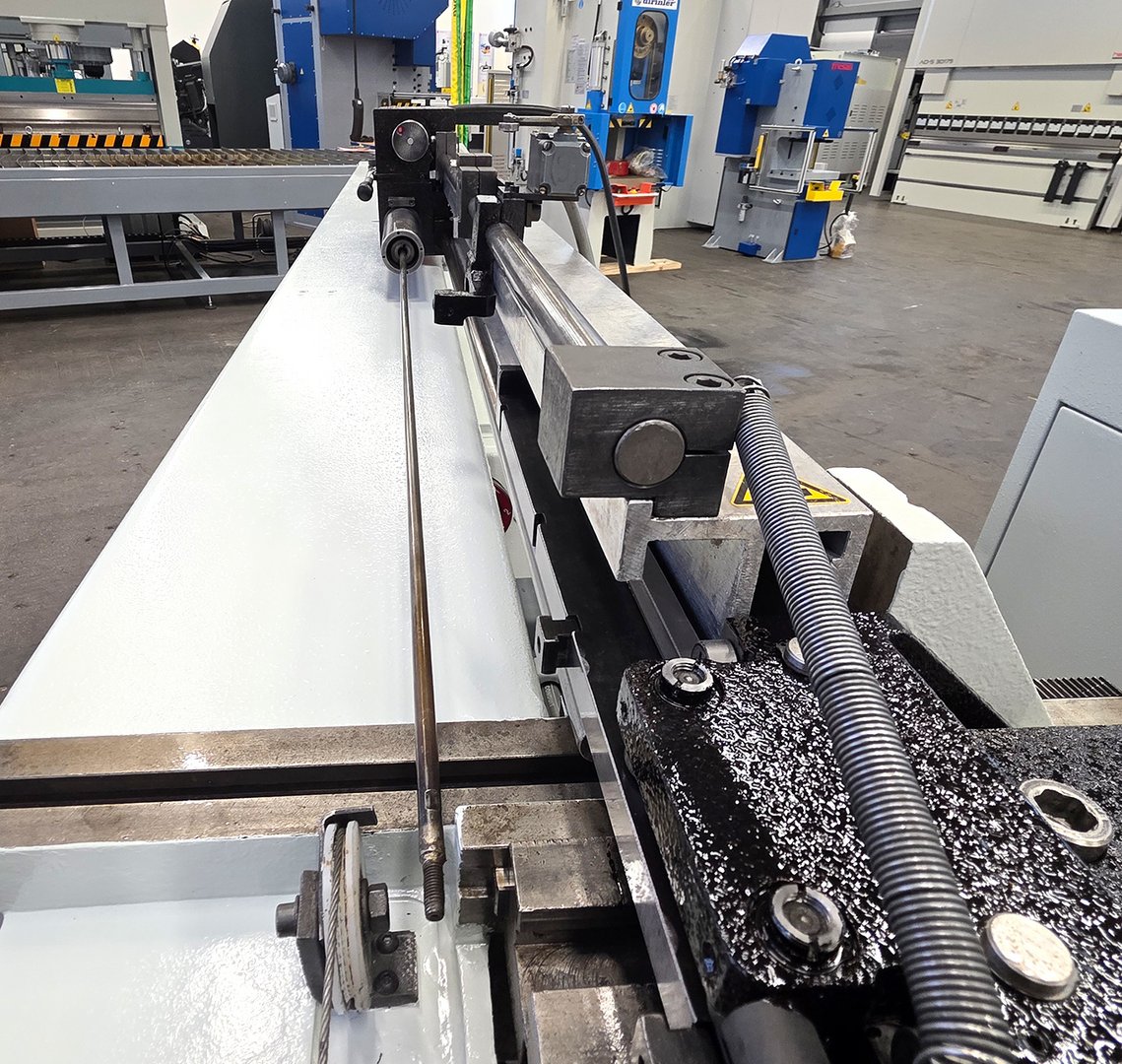

Tube bending machine with mandrel PEDRAZZOLI UNI 42 CD
