General characteristics
| Motor | 2.2 kW |
| Rotation speed | 5 U/min |
| Flat steel | 100 x 15 mm |
| Tube diameter | 48 x 3 |
Dimensions and weight
| Length | 870 mm |
| Width | 590 mm |
| Height | 940 mm |
| Weight | 300 kg |
Description

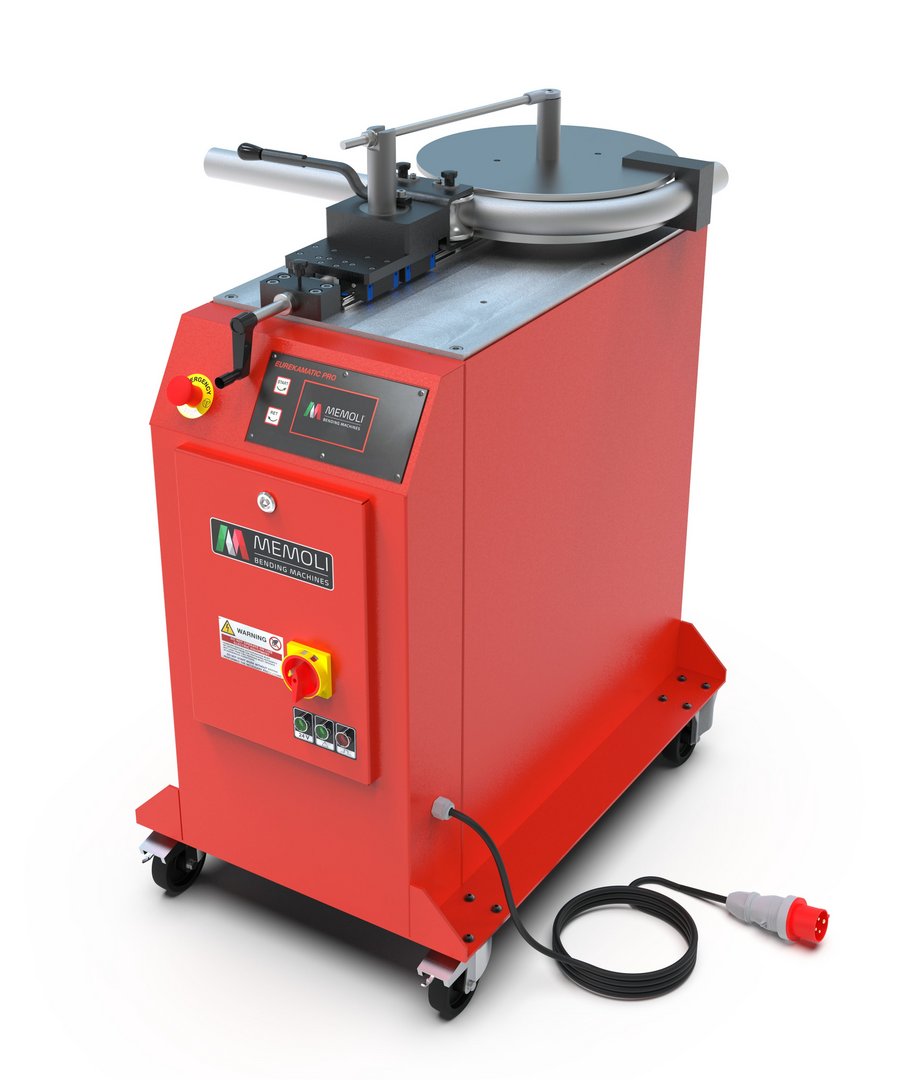

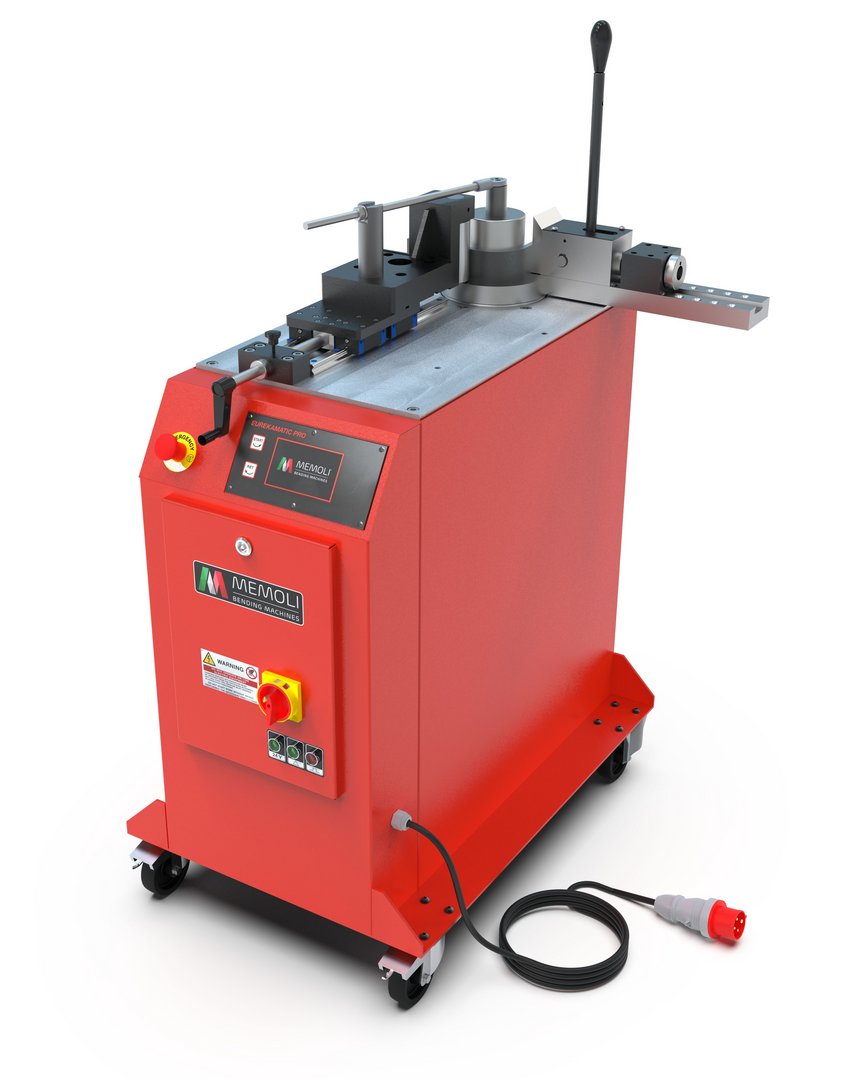

One machine, 4 different operations:

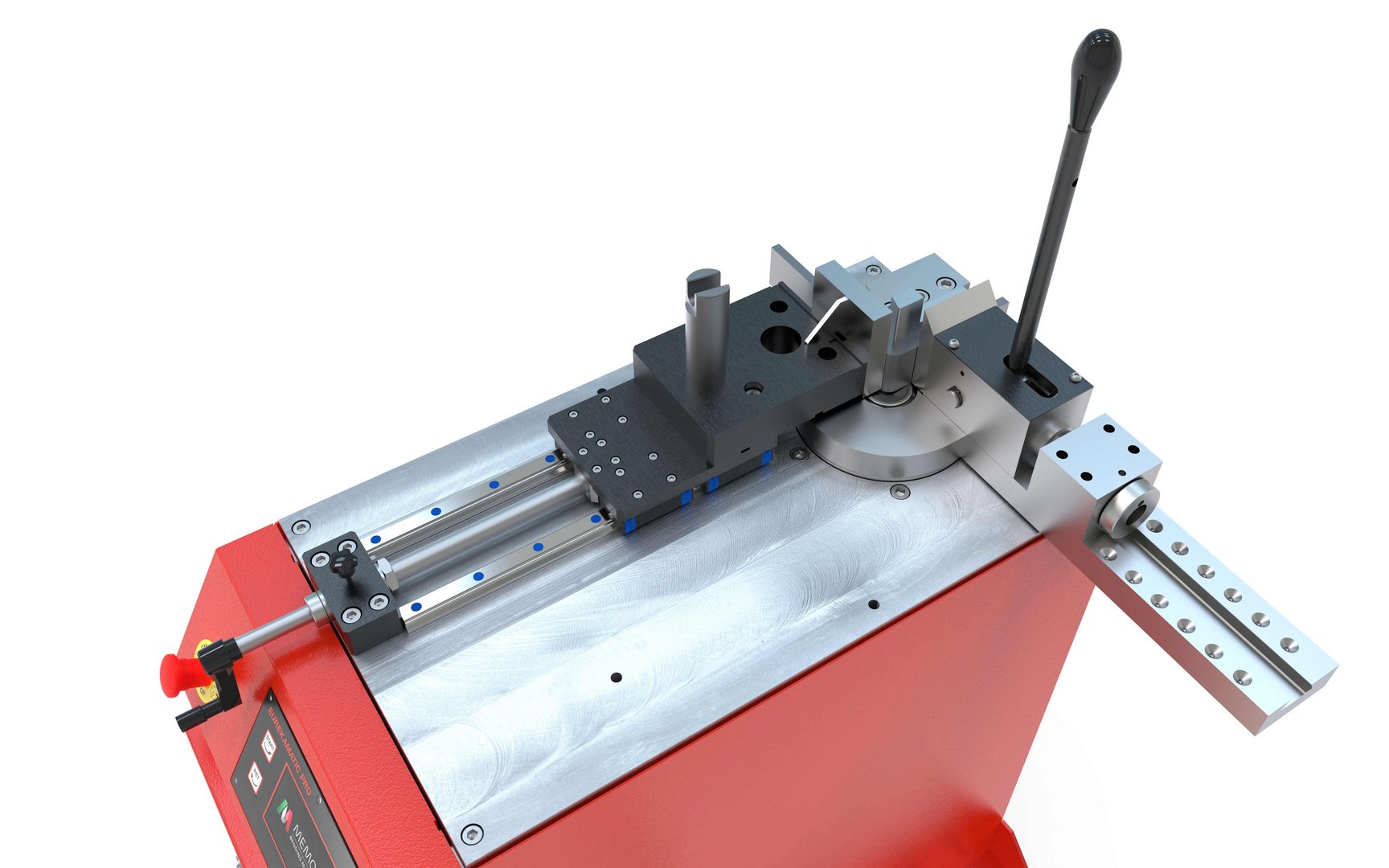

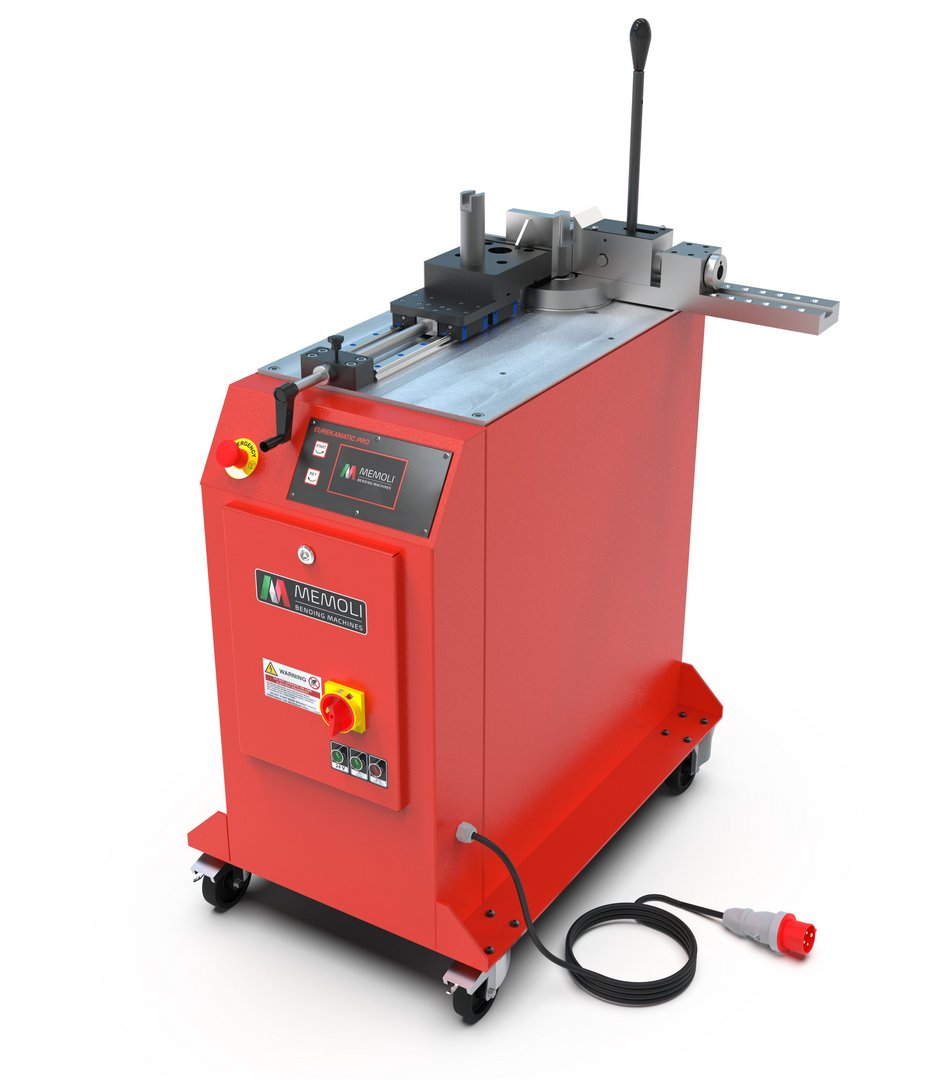

- Angle bending (AB-PF) - Round steel diameter. 35 mm, square steel 30 mm, flat steel 100 x 15 mm

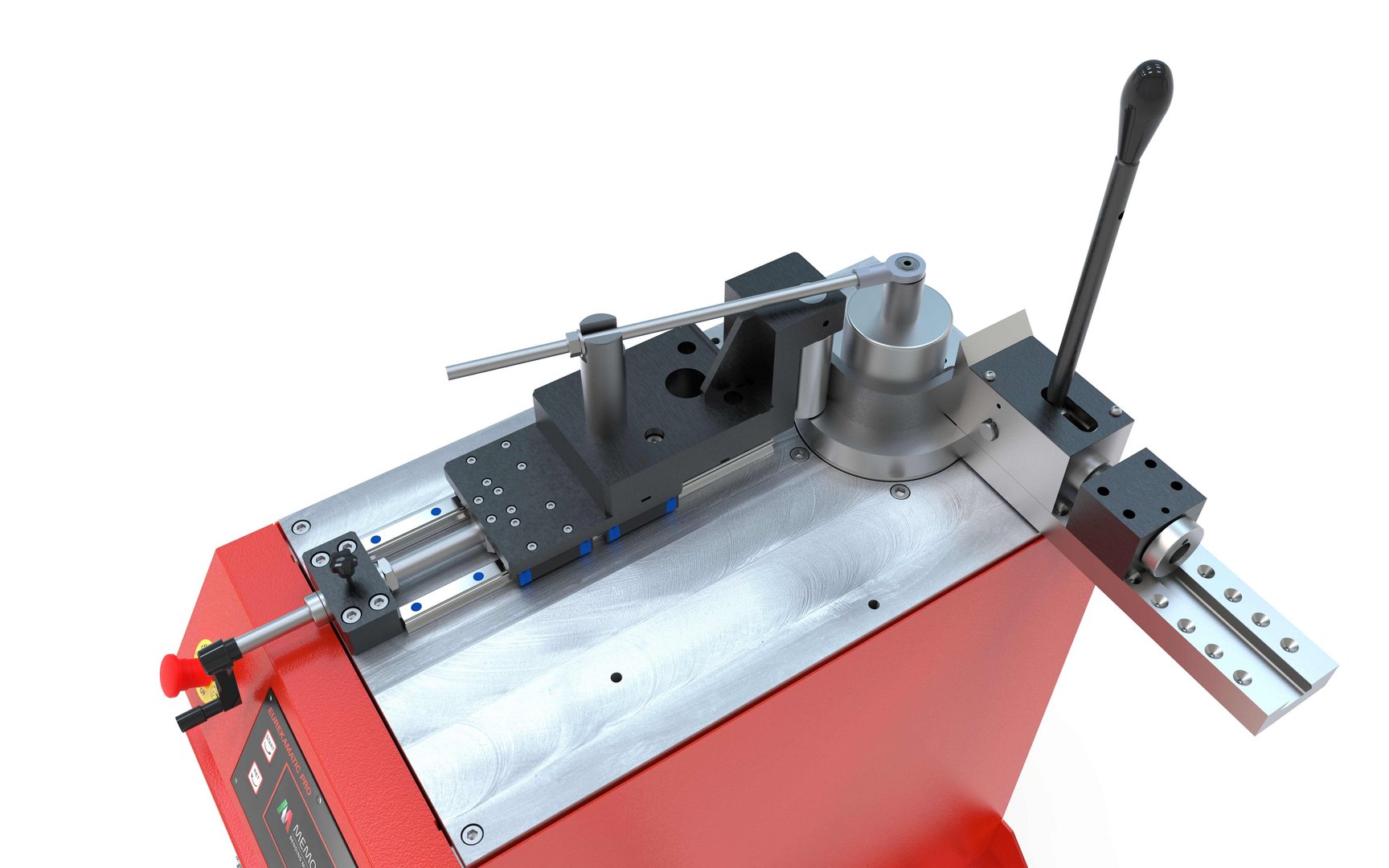

- Round bending (AB-CF) - Round steel diameter. 35 mm, square steel 30 mm, flat steel 100 x 15 mm

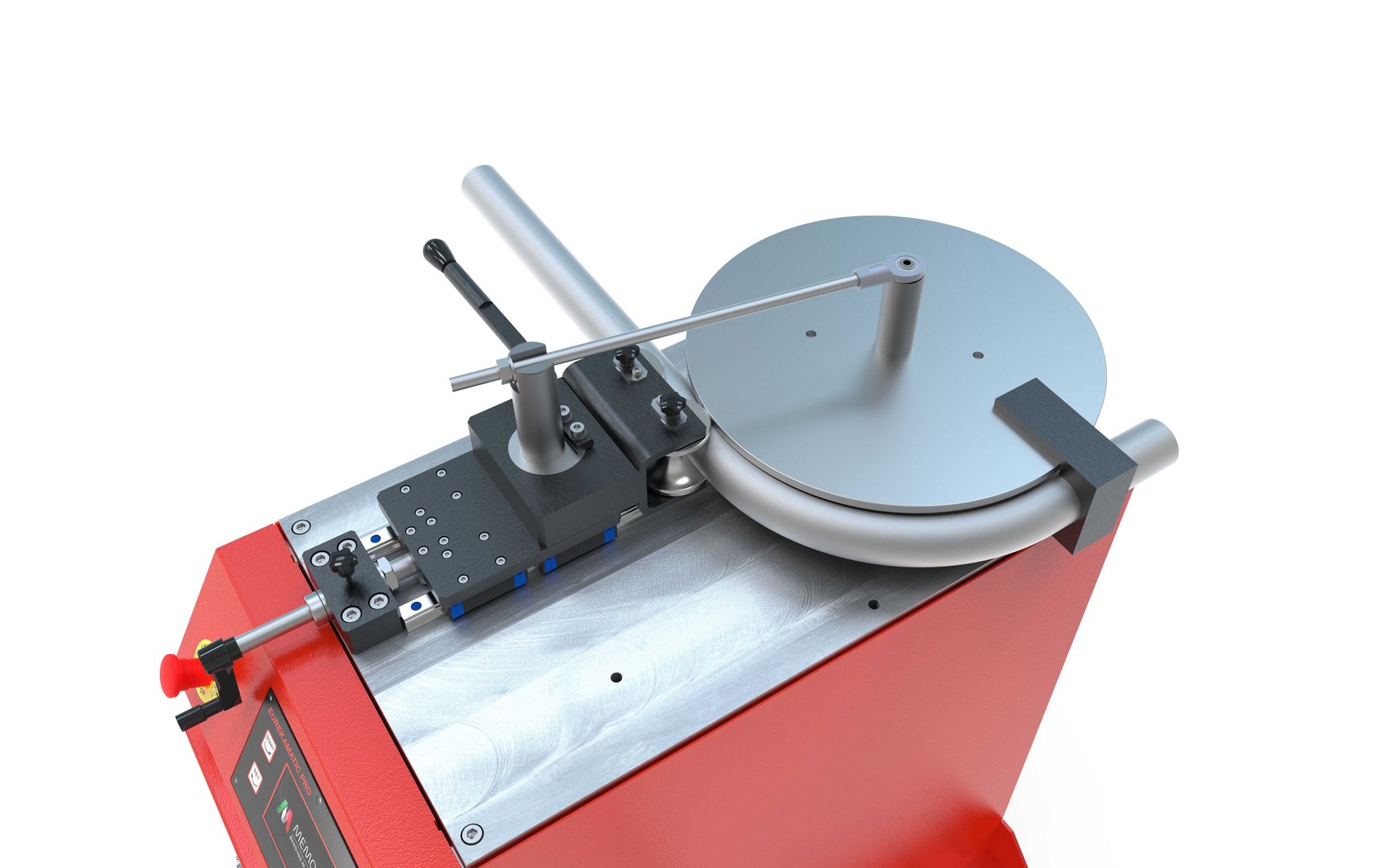

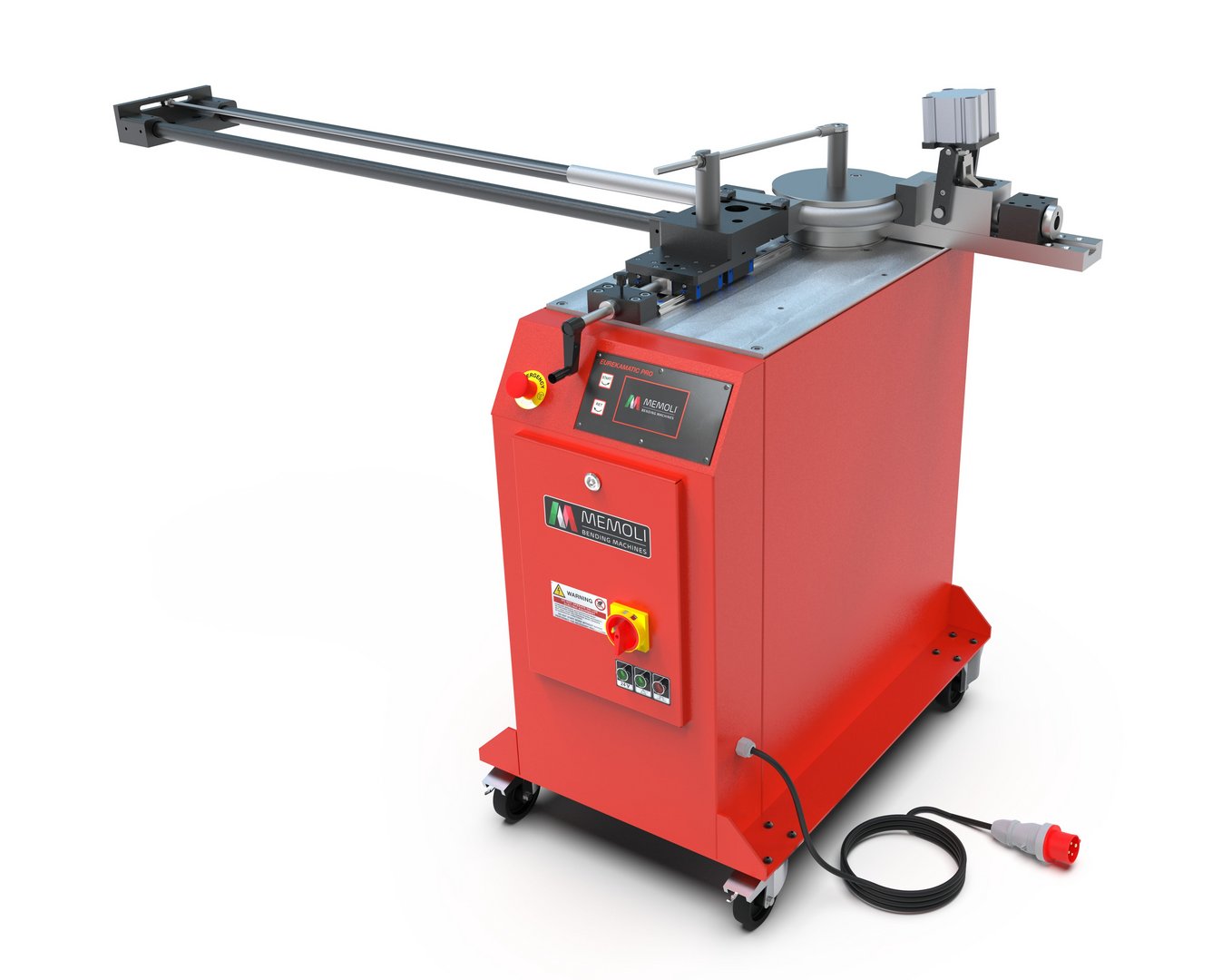

- Pipe bending without mandrel (AB-CT) - Round steel diameter. 35 mm, tube diameter 48 x 3 mm

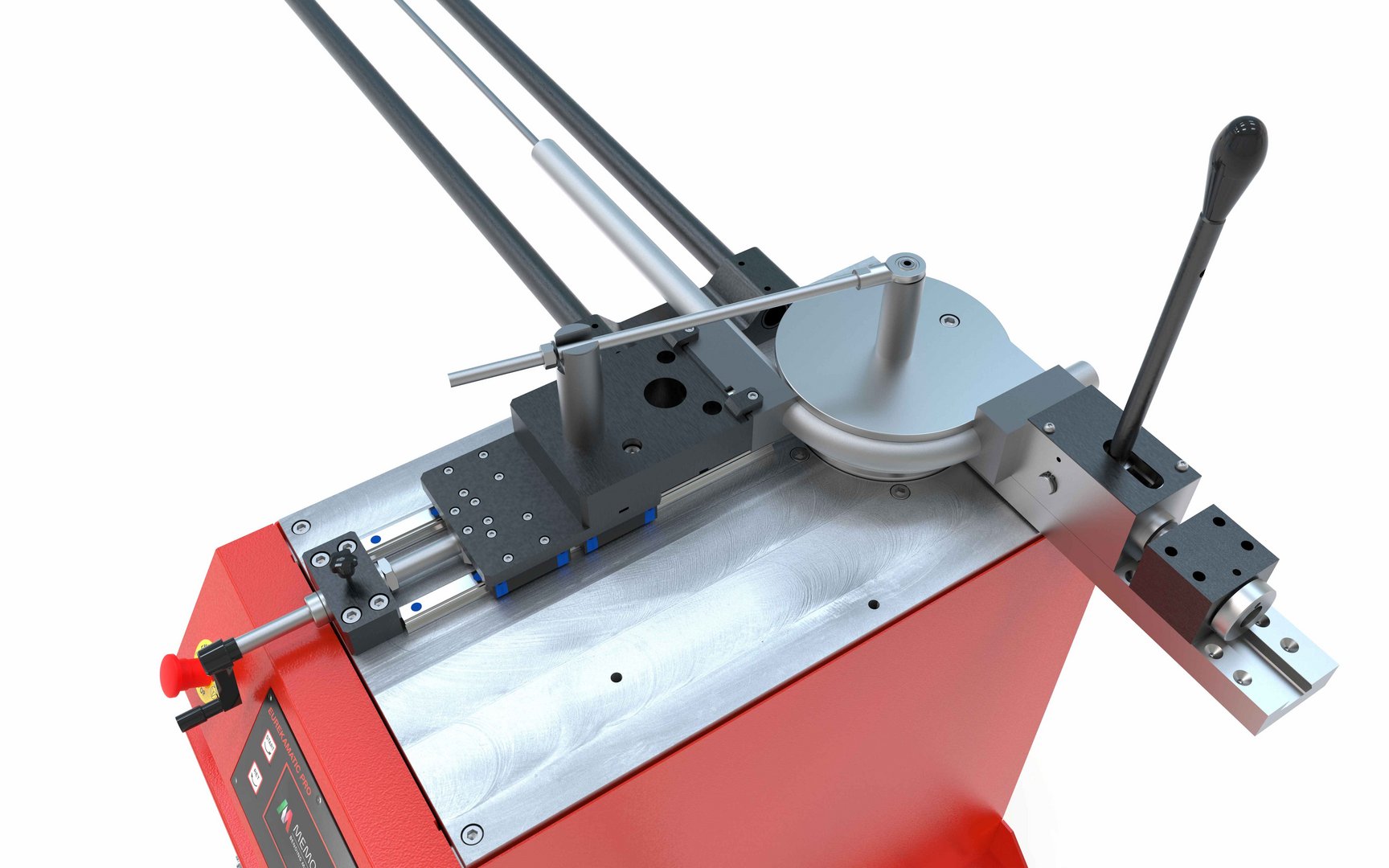

- Pipe bending with mandrel (AB-CTA) - Round steel diameter. 35 mm, tube diameter 48 x 2 mm
Touch screen
- Display of programmed and current angle
- up to 49 programs
- Programming the springback compensation
Price of the basic machine without bending devices
Fast tool change
Manual, semi-automatic or automatic operating mode
Options (prices on request):
Bending device for angle bending AB-PF
Bending device for round bending (AB-CF)
Bending device for pipe bending without mandrel (AB-CT)
Bending device for pipe bending with mandrel (AB-CTA)

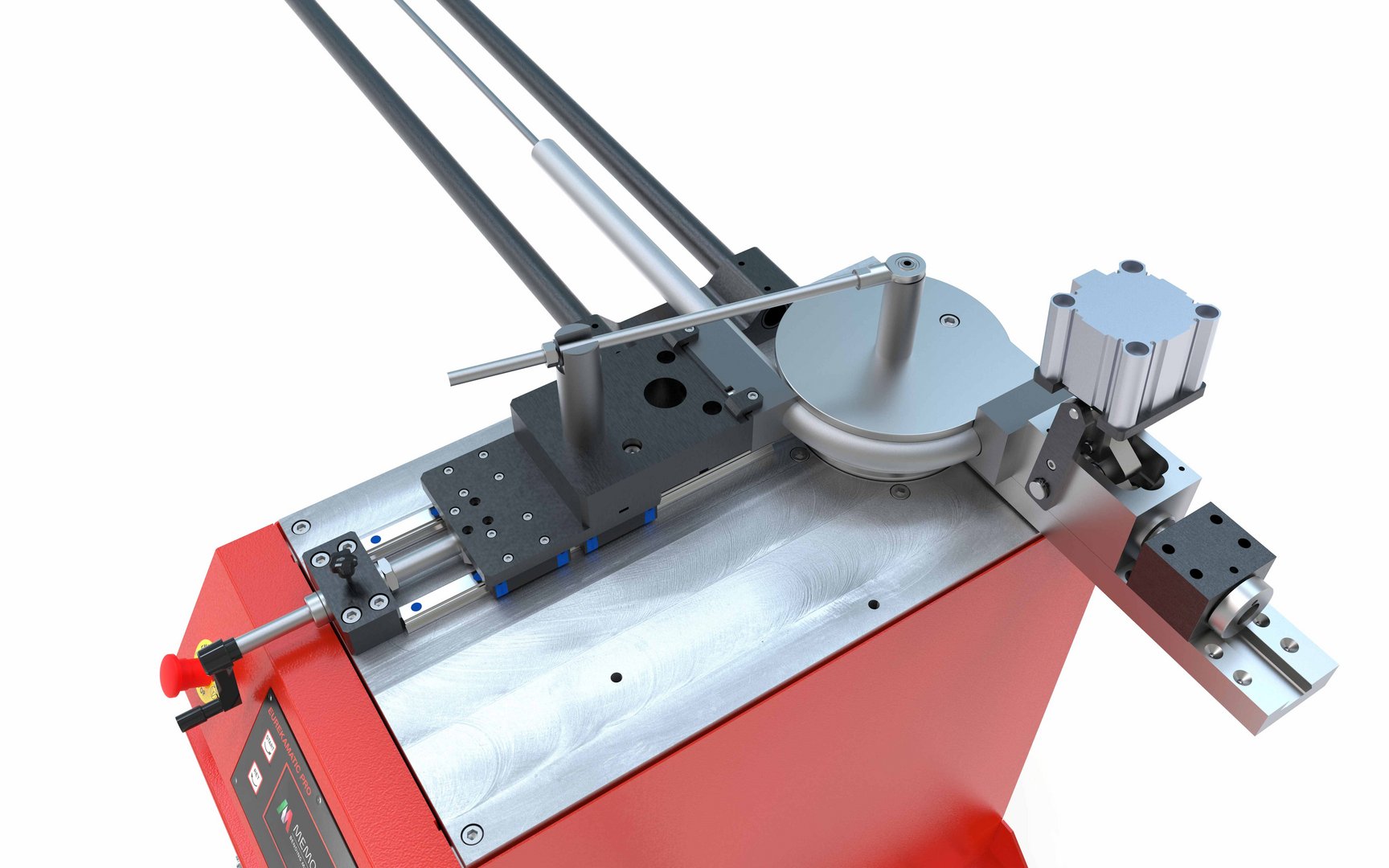

Manual or pneumatic vice
Foot pedal
Double foot pedal with emergency stop

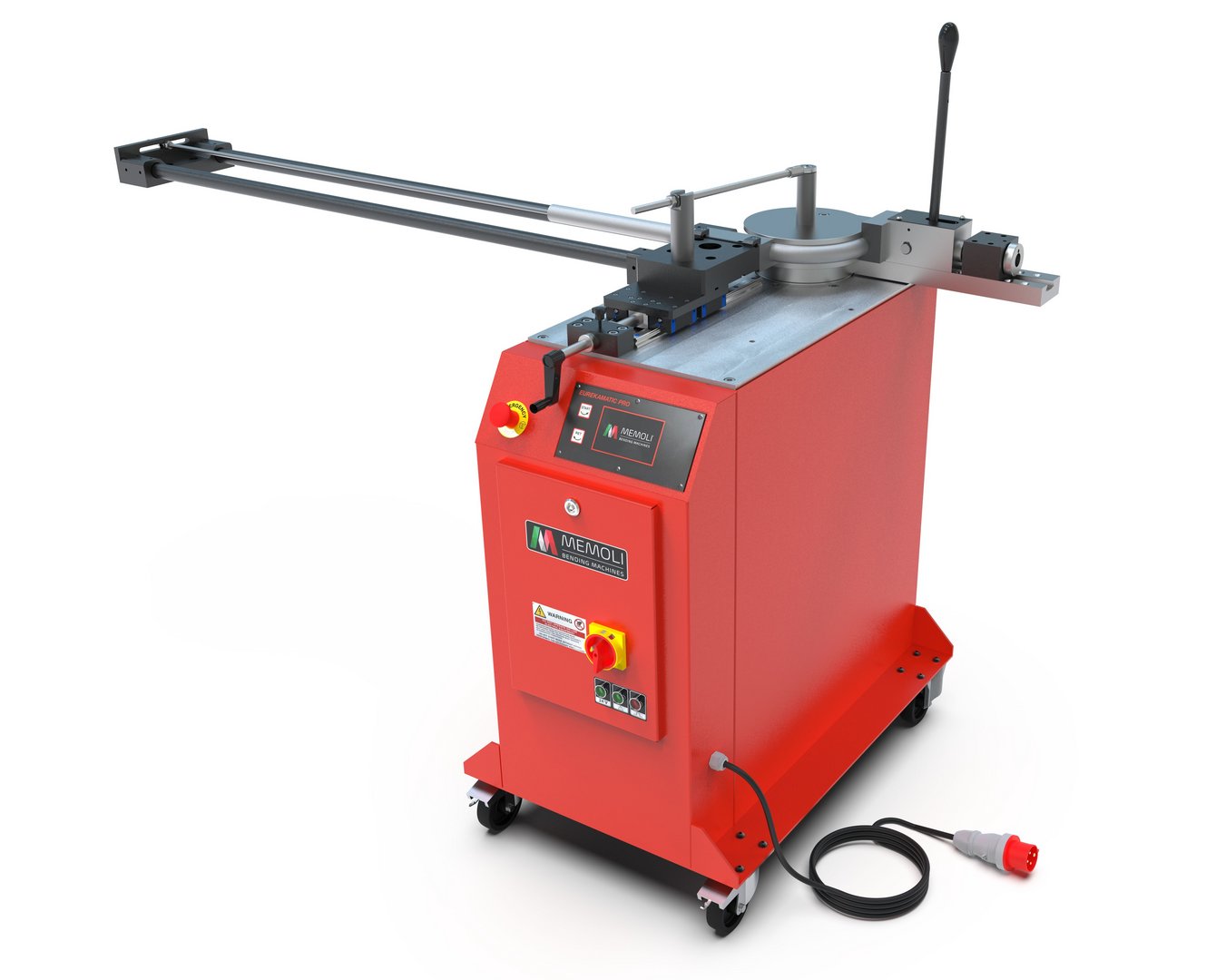

Positioning device 2.5 m - X axis with 5 stops, Z axis with 4 stops
