General characteristics
| Load capacity | 3000 kg |
| Rated center of gravity | 150 mm |
| Rated eccentricity | 150 mm |
| Rated tilt torque | 135 kgm |
| Voltage / Frequency | 400 / 50 V / Hz |
| Rotation motor | 1.1 kW |
| Hydraulic motor | 1.1 kW |
| Table diameter | 1200 mm |
| Height of rotating center at horizontal rotation | 700 - 950 mm |
Dimensions and weight
Description

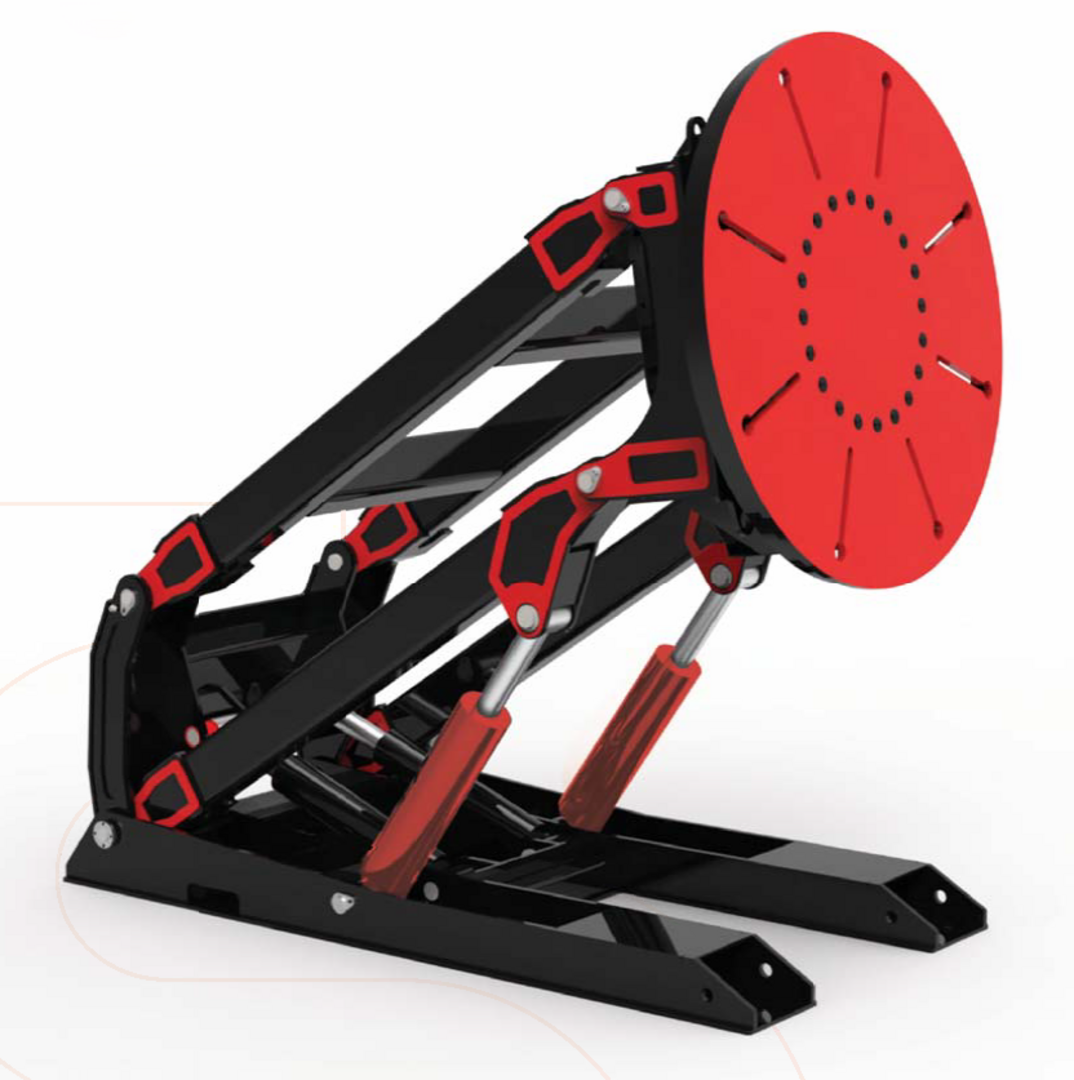

The hydraulic positioners are available in standard sizes for load capacities from 1.000 kg to 3.000 kg.
The frame is optimally designed for rotation and tilting operations.
The positioners consist of a motor, gearbox, table tilting system, steel gears, and control system and are structurally optimally protected.
For heavy workpieces, the positioners are mounted to the floor.
Tilting and rotation are controlled by steel gears.
For safety, the positioner is equipped with a reduction gear that holds the table in the desired position.
The rotation speed can be adjusted via a potentiometer.
