General characteristics
| Load capacity | 500 kg |
| Rated center of gravity | 150 mm |
| Rated eccentricity | 150 mm |
| Rated tilt torque | 360 kgm |
| Voltage / Frequency | 230 / 50 V / Hz |
| Rotation motor | 0.37 kW |
| Tilting motor | 0.37 kW |
| Rotation speed | 0.1 - 3 U/min |
| Tilting time | 45 s |
| Table diameter | 800 mm |
| T-slots | M20X6 mm |
| Height of rotating center at horizontal rotation | 640 mm |

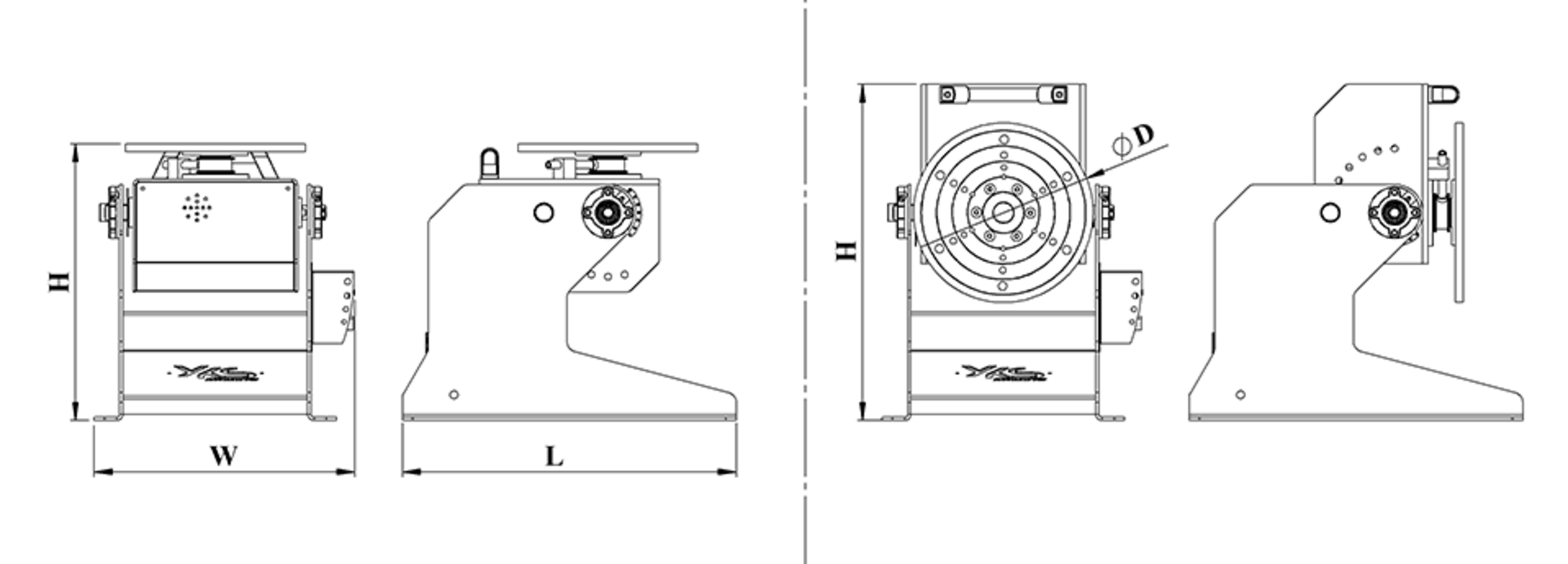

Dimensions and weight

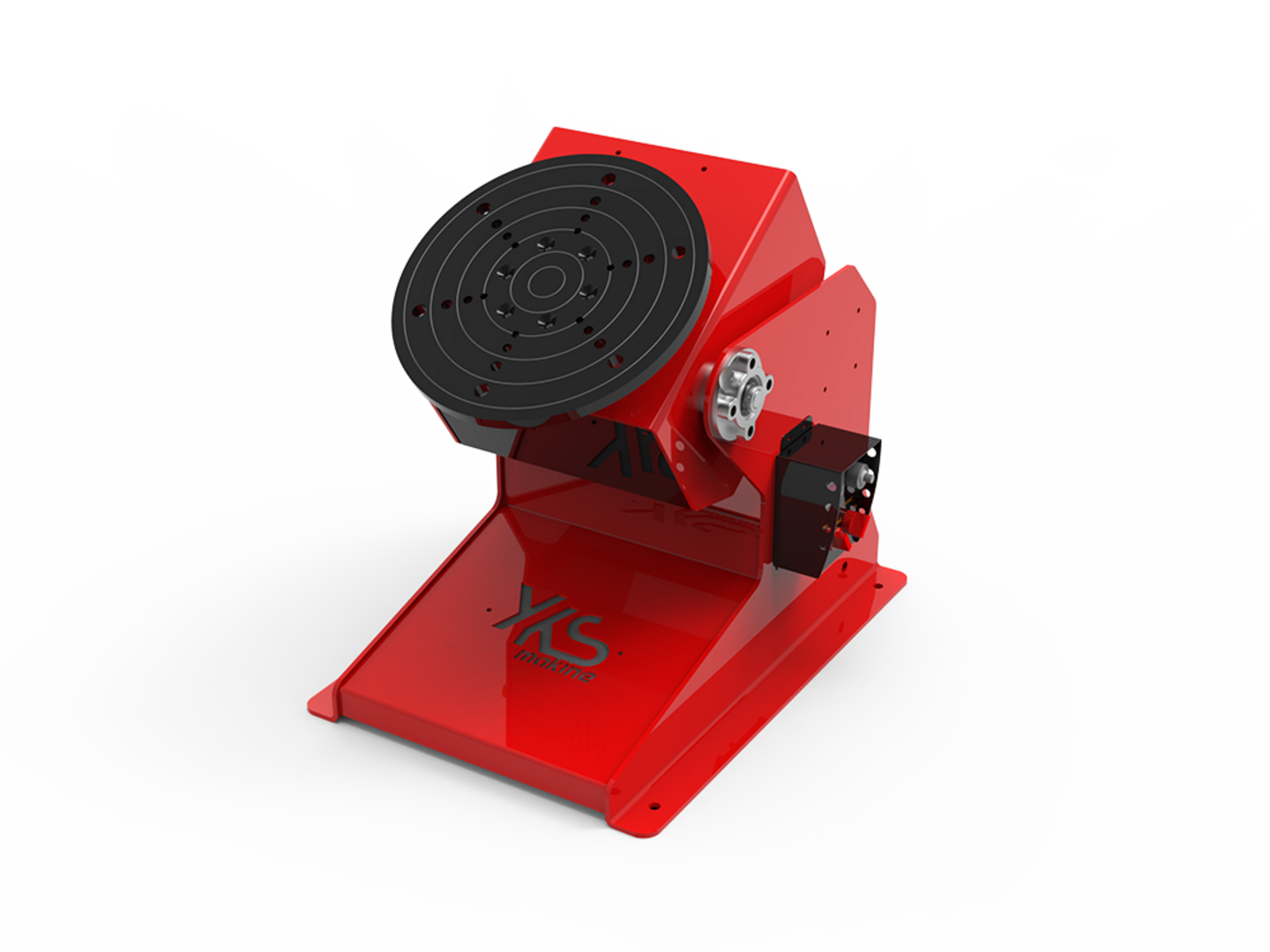

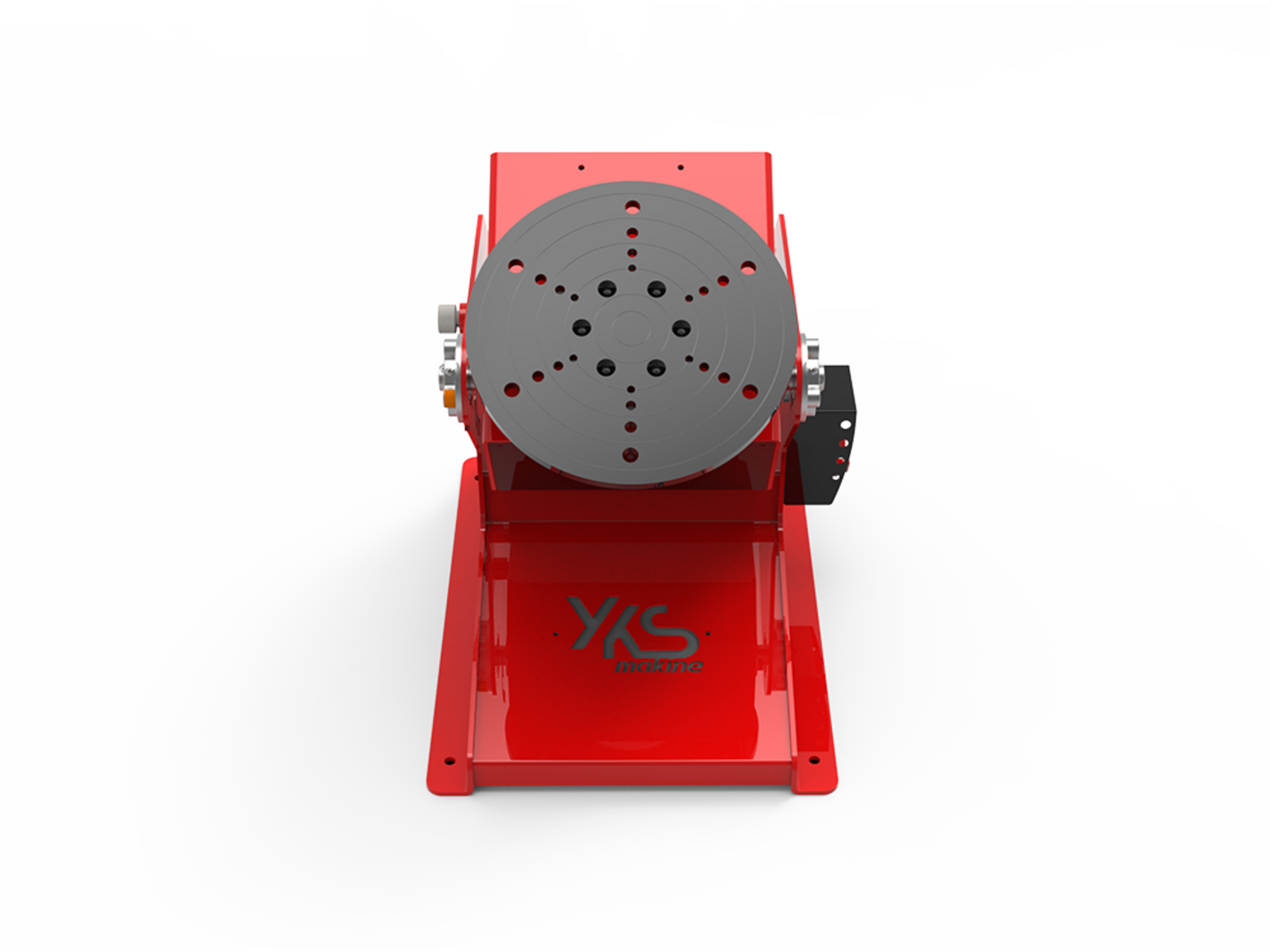

Description
The positioners are available in standard sizes for load capacities from 150 kg to 3,000 kg.
The frame is optimally designed for rotation and tilting operations.
The positioners consist of a motor, gearbox, table tilting system, steel gears, and control system and are structurally optimally protected.
For heavy workpieces, the positioners are mounted on the floor.
The tables have radial T-slots that enable quick clamping of the workpieces.
Tilting and rotation are controlled by steel gears.
For safety, the positioner is equipped with a reduction gear that holds the table in the desired position.
The rotation speed can be adjusted via a potentiometer.
