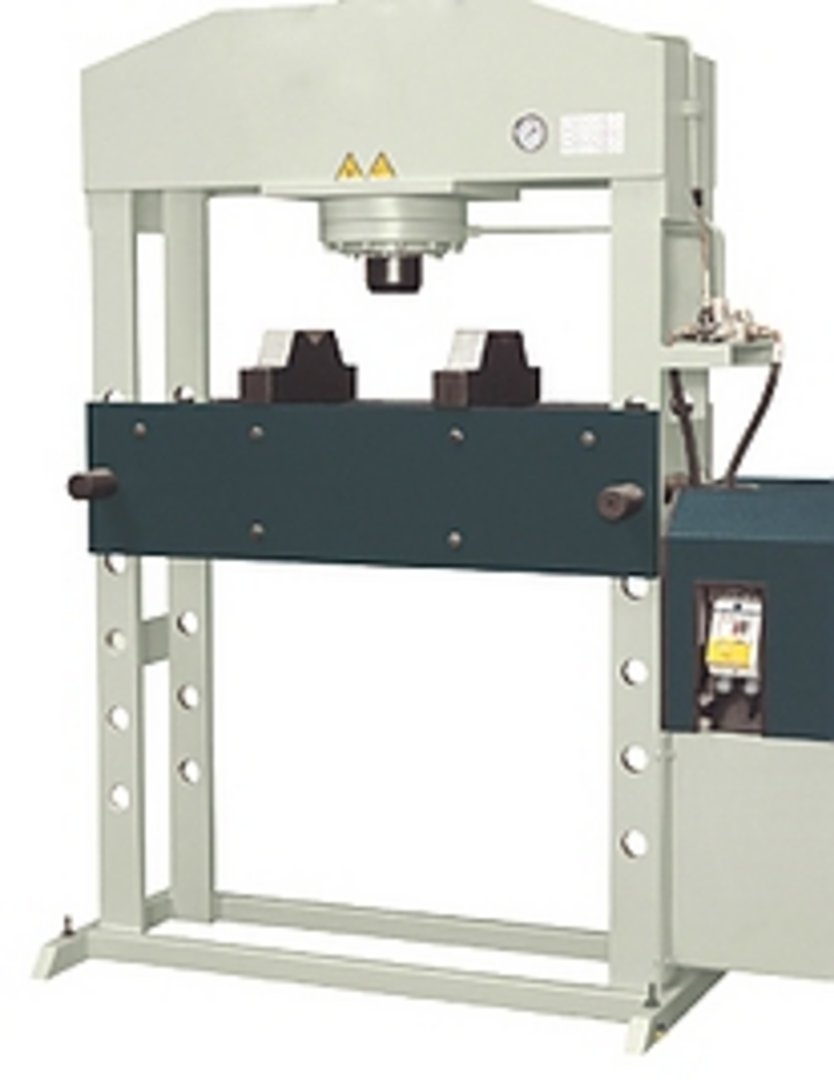

Hydraulic workshop press HESSE by LFSS DPM 1040-60
| Model | DPM 1040-60 |
| Brand | HESSE by LFSS |
| Condition | new |
| pressing capacity | 60 to |
| Distance between columns | 1040 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 60 to |
| Cylinder fix or moveable | fix |
| Stroke | 250 mm |
| Distance between columns | 1040 mm |
| Piston diameter | 180x120 mm |
| Working speed | 4 mm/s |
| Retraction speed | 10 mm/s |
Dimensions and weight
| Length | 1710 mm |
| Width | 700 mm |
| Height | 2100 mm |
| Weight | 800 kg |
Description
steel welded frame
stop at any position
pressure manometer
safety valve against overloading
2 V-blocks
table height adjustable
table up-down movement attachment
control by operating lever
according to CE regulations user manual in GERMAN and ENGLISH user manual in GERMAN and ENGLISH
