General characteristics
| pressing capacity | 70 to |
| Cylinder fix or moveable | fix |
| Stroke | 350 mm |
| Daylight | 900 mm |
| Distance between columns | 1050 mm |
| Working speed | max. 9 mm/s |
| Motor power | 2 kW |
Dimensions and weight
| Length | 1900 mm |
| Width | 850 mm |
| Height | 2250 mm |
| Weight | 1030 kg |
Description

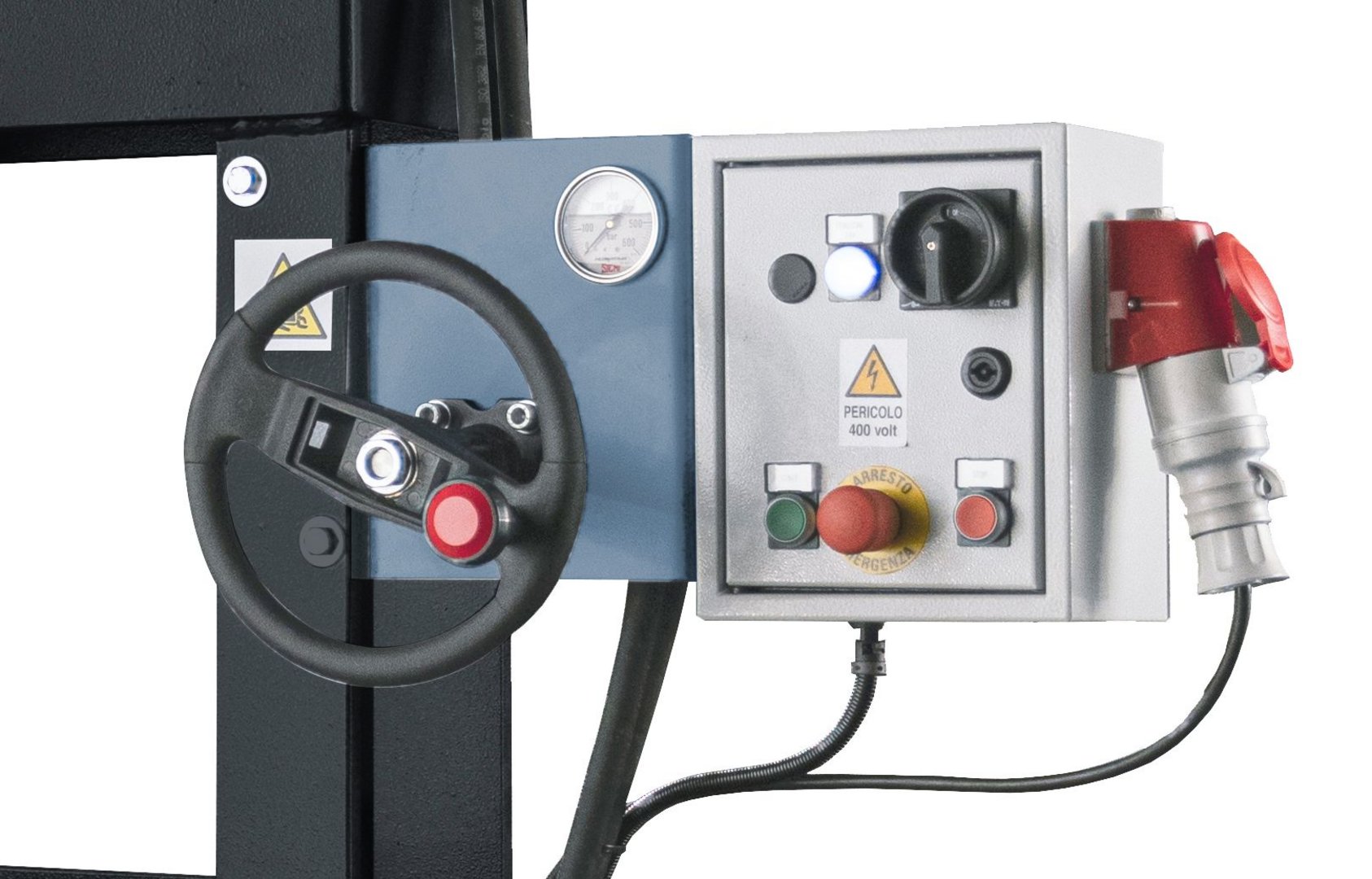

The hydraulic movement of the piston is controlled by a handwheel,
which enables very sensitive and precise positioning.
One-handed operation is possible thanks to the working speed of less than 10 mm/s.
Very suitable for straightening and pressing work.
The cylinder can be moved sideway by handwheel (only "M" versions)
Further information
Product video

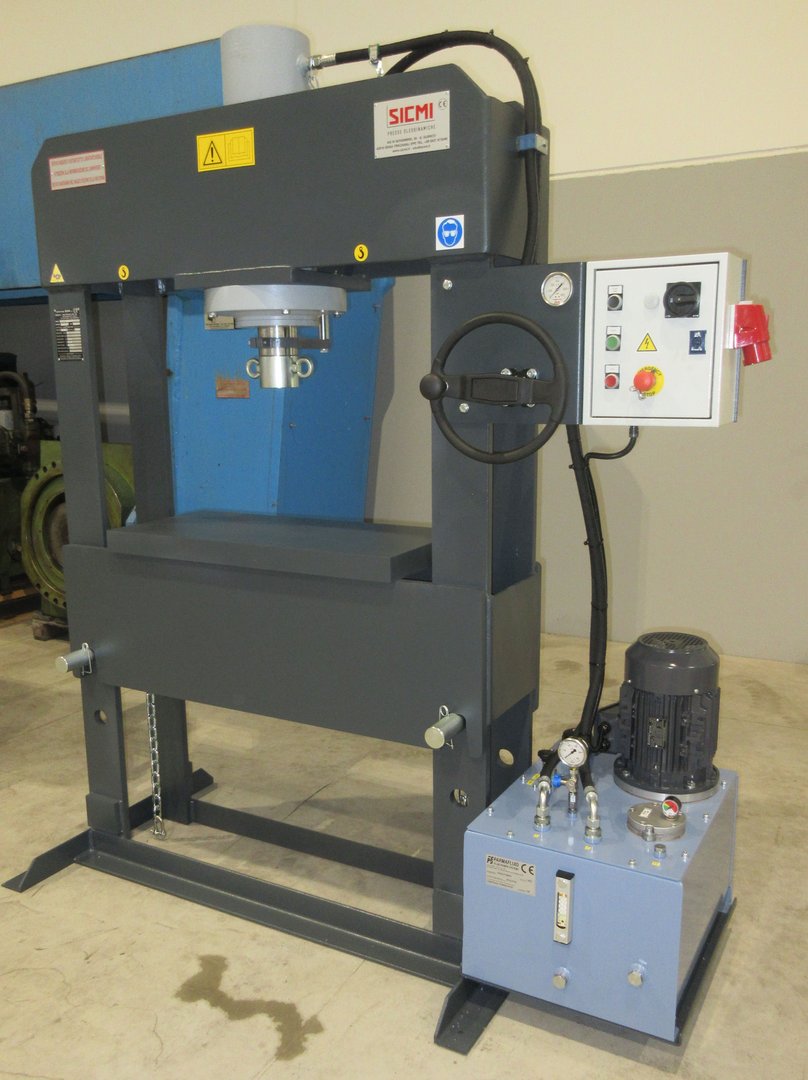

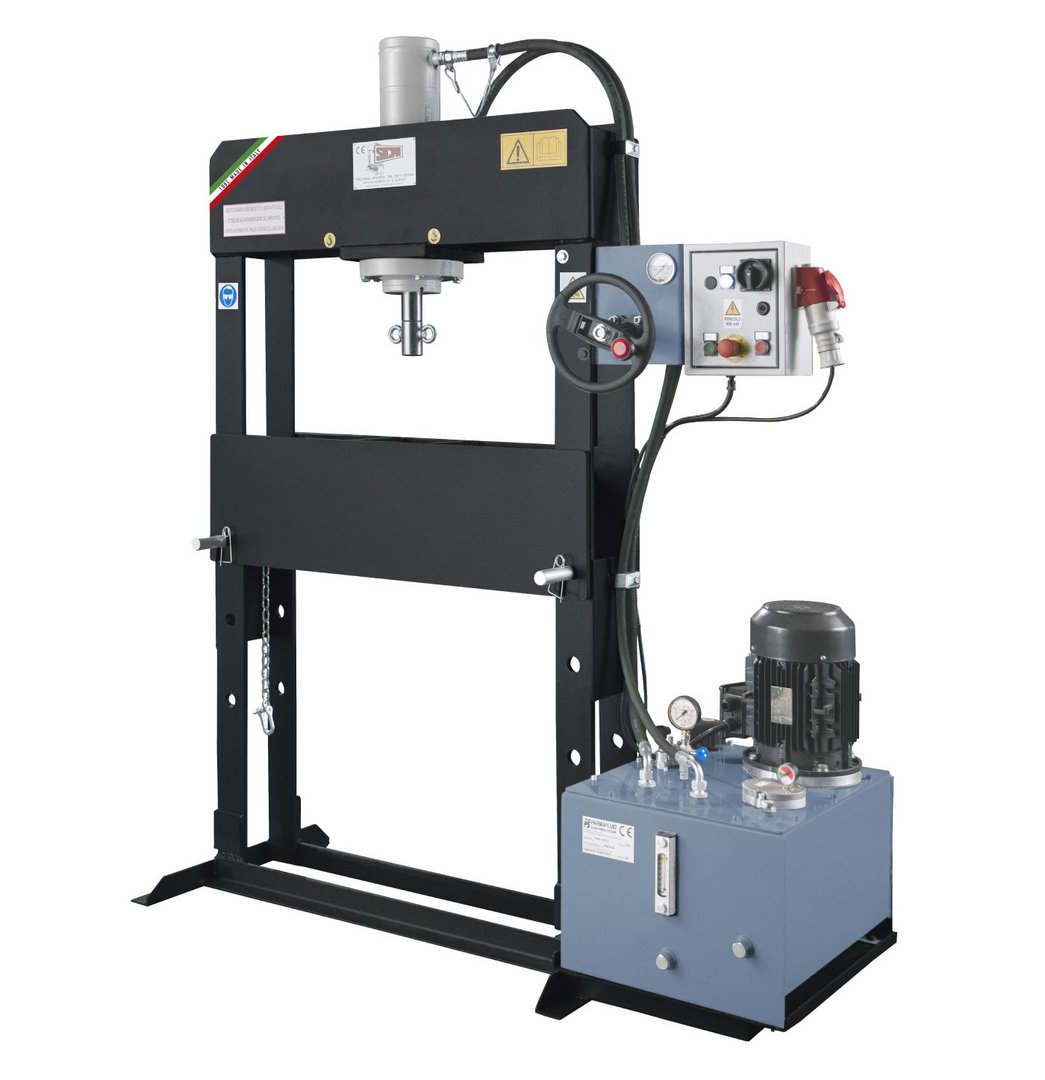

Hydraulic workshop press PSV 70
