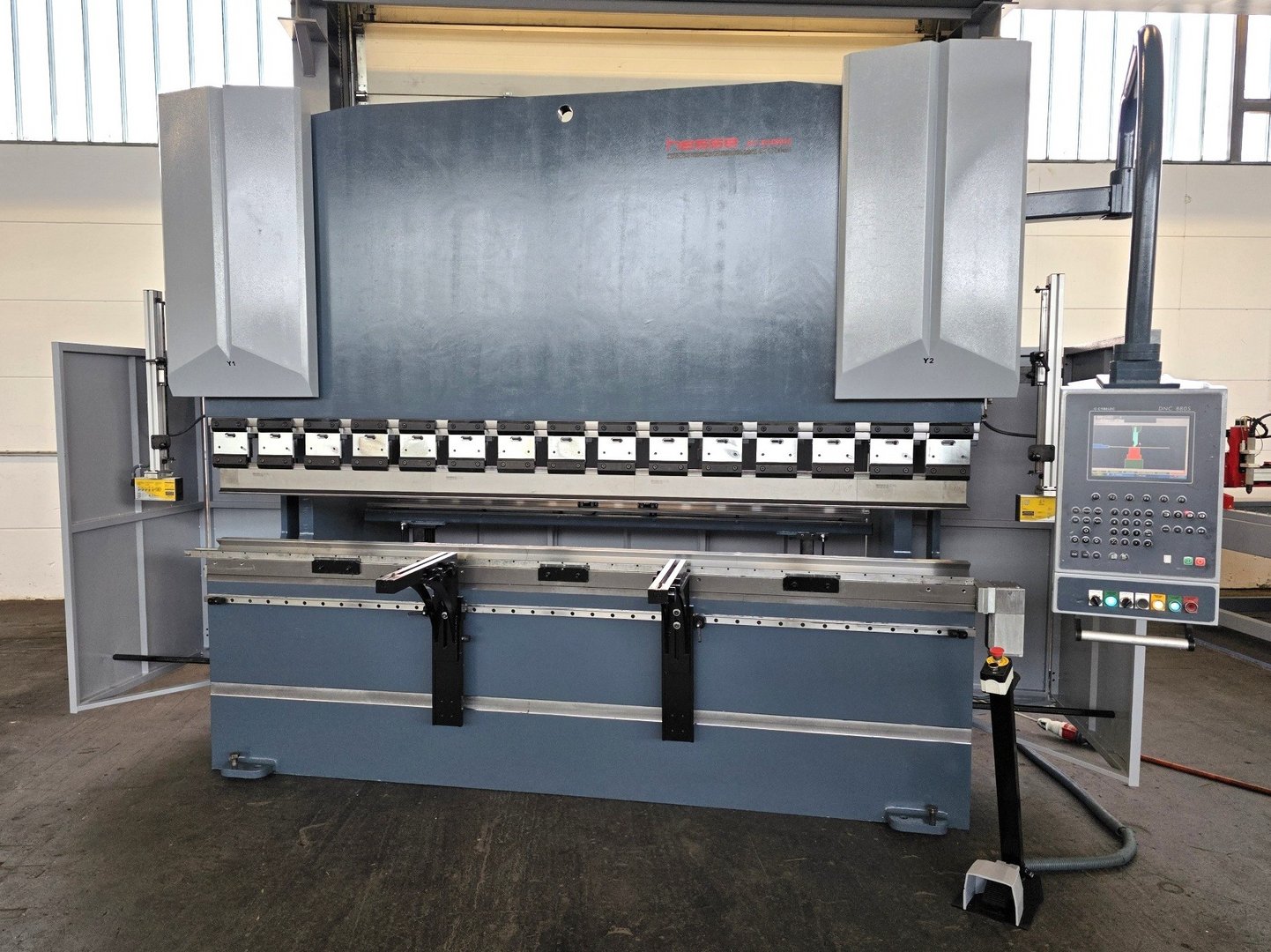

Hydraulic CNC press brake HESSE by DURMA AD-R 30175
| Model | AD-R 30175 |
| Brand | HESSE by DURMA |
| Condition | used |
| Year of manufacture | 2015 |
| pressing capacity | 175 to |
| Bending length | 3050 mm |
| Stock number | 80242 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 175 to |
| Bending length | 3050 mm |
| Axes | 4 |
| Stroke | 265 mm |
| Inside distance between side frames | 2600 mm |
| Gap in side frame | 410 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 120 mm/s |
| Working speed Y-axis | 10 |
| Retractionspeed Y-axis | 100 |
| Motor | 18.5 kW |
Dimensions and weight
| Length | 4250 mm |
| Width | 1850 mm |
| Height | 2770 mm |
| Weight | 10520 kg |
Description
4 axes (Y1, Y2, X, and R-axis)

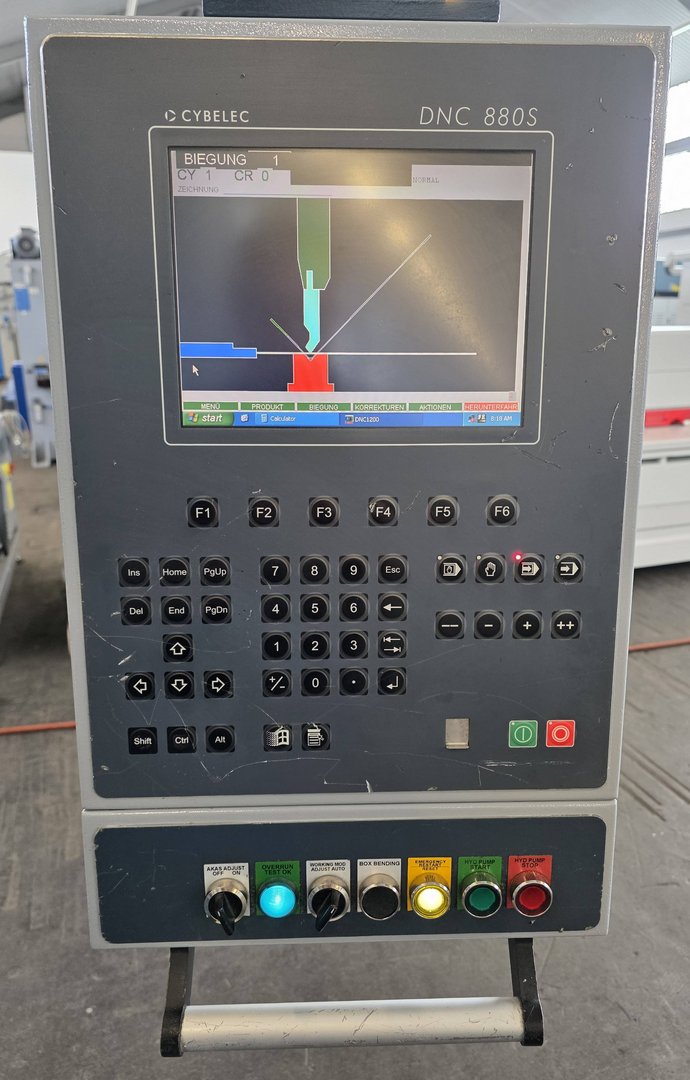

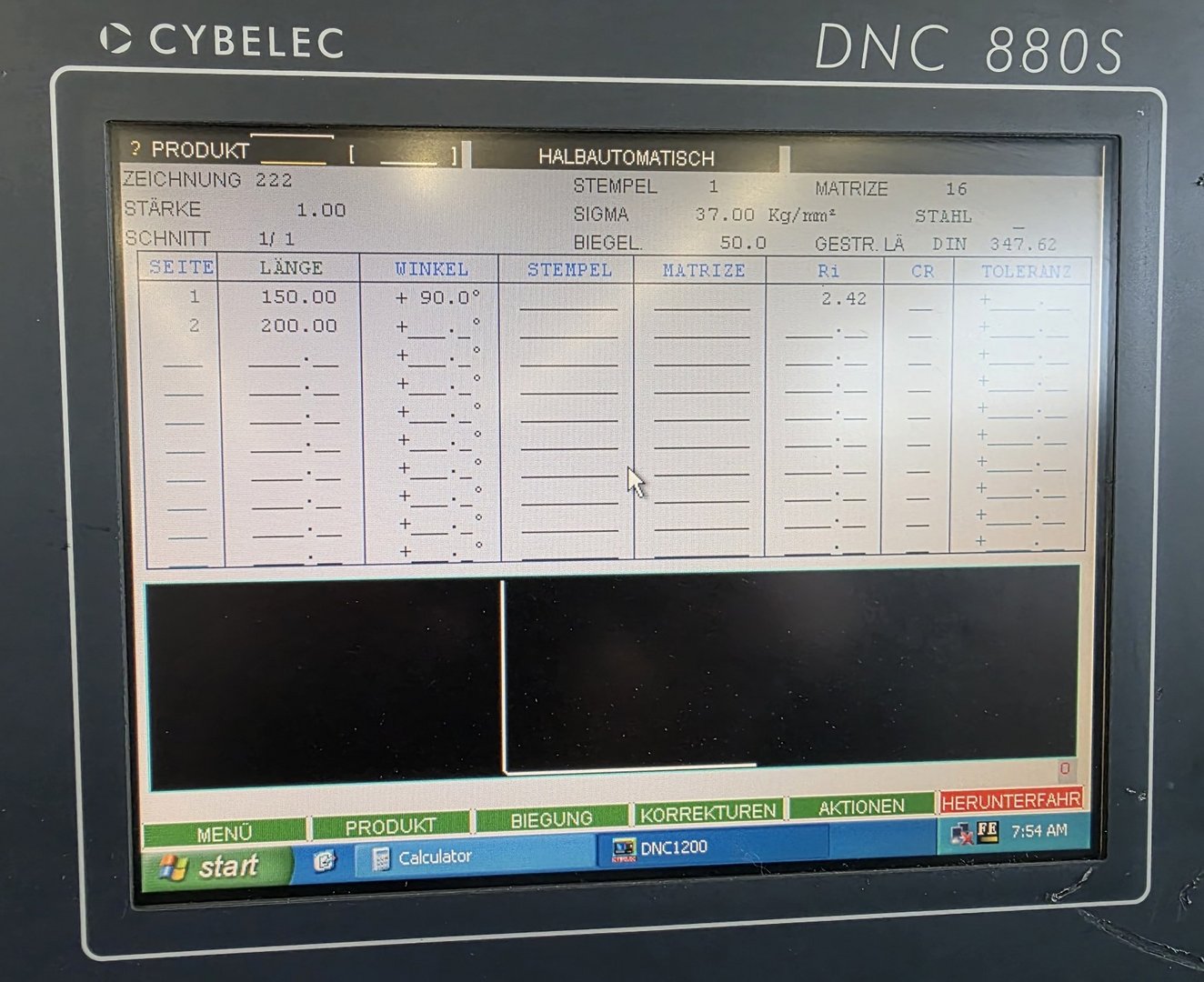

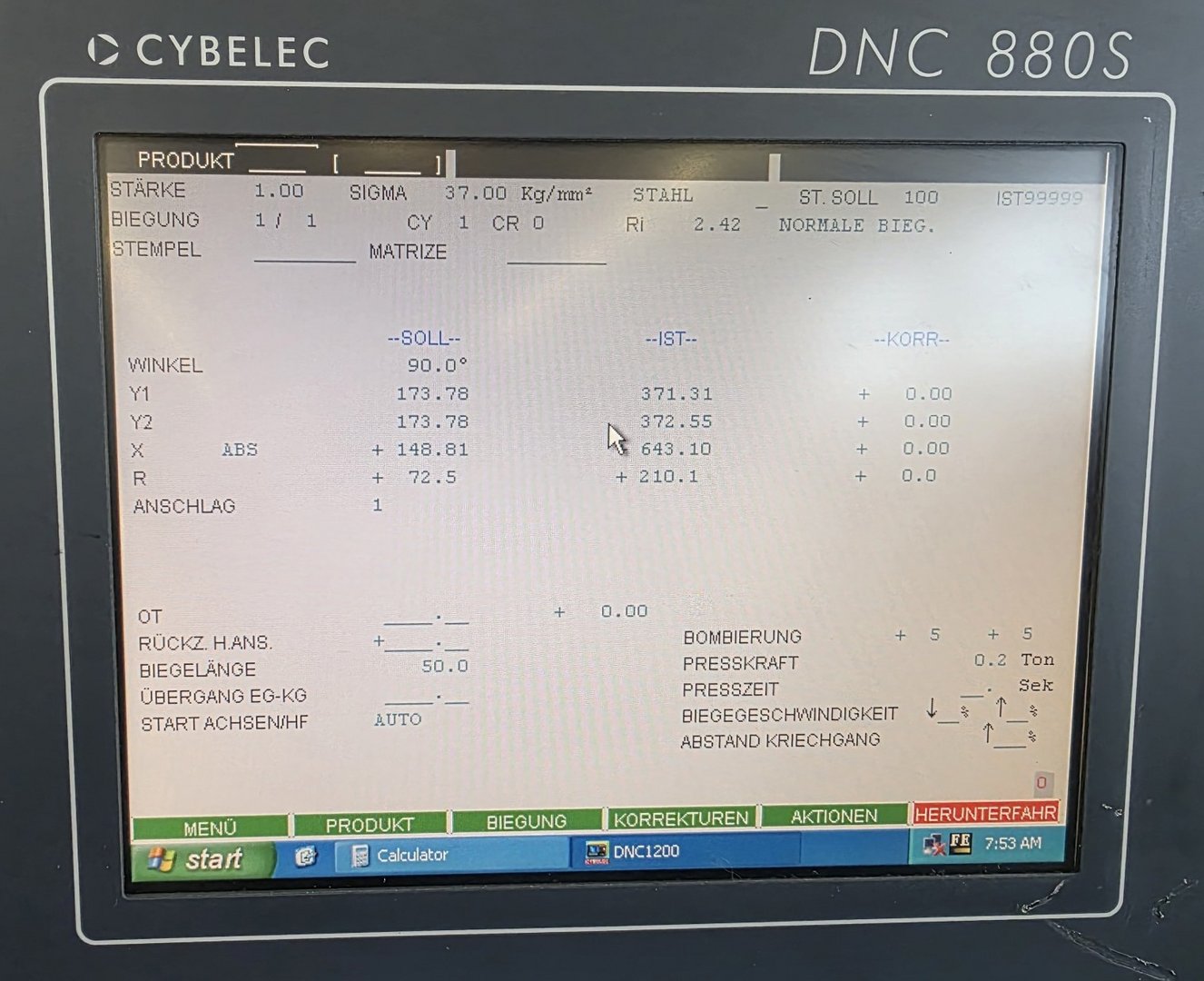

Cybelec DNC 880 S CNC control
- 2D graphic display
- User-friendly conversational programming
- Automatic bending sequence calculation
- Automatic calculation of developed length for blank cutting

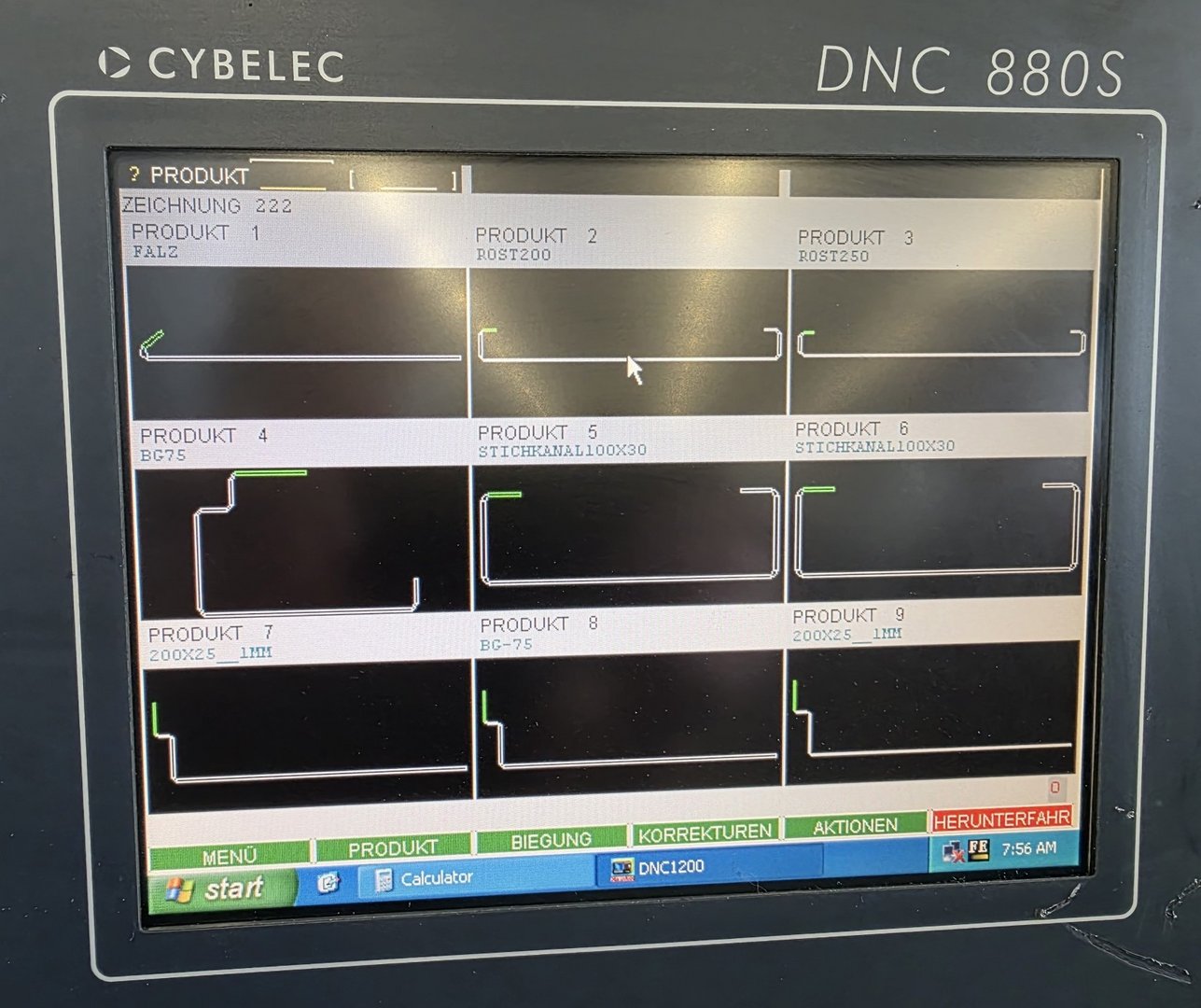

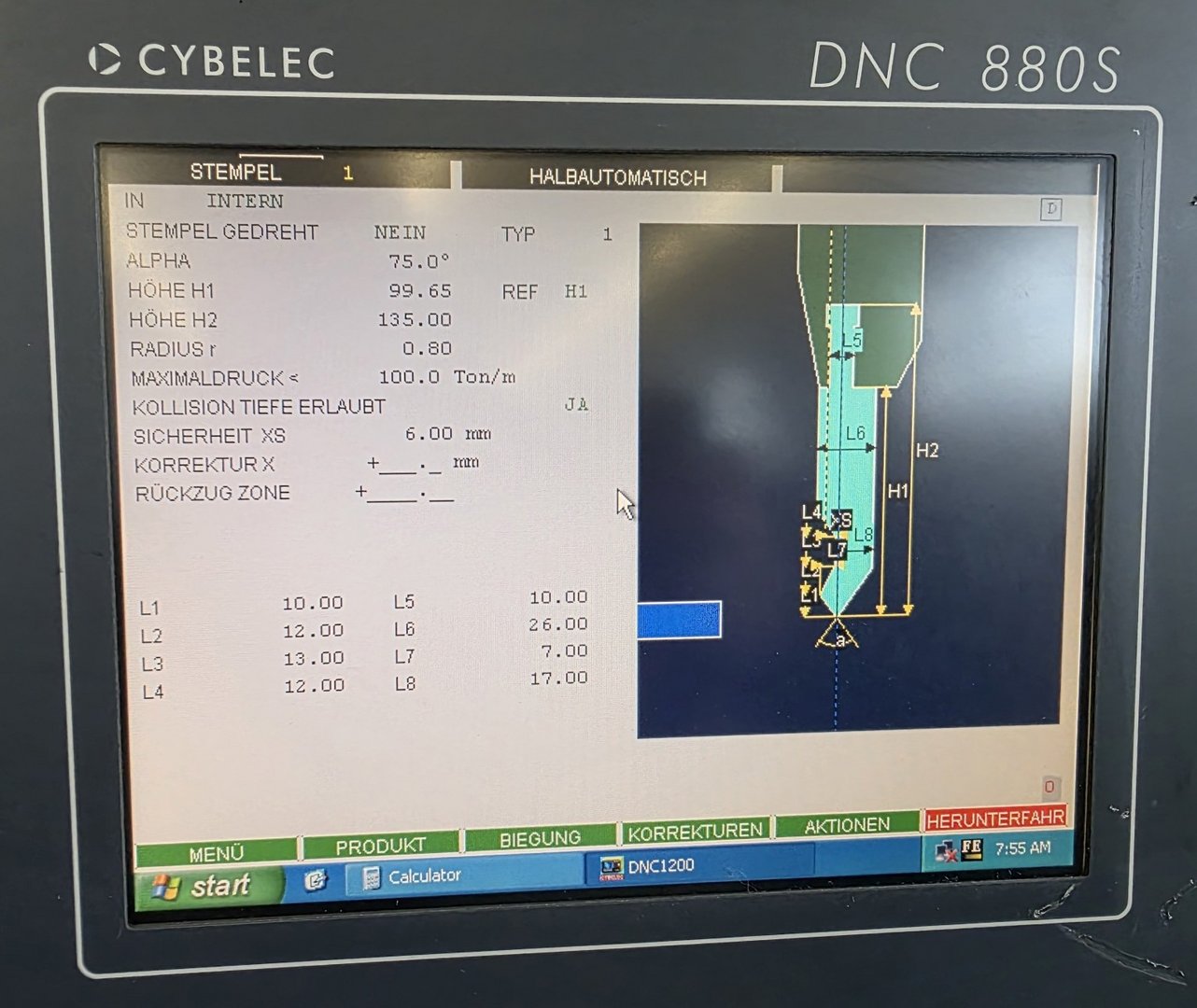

- Product and tool memory
- Correction capability
- USB ports for backup and program storage
CNC-controlled backgauge on linear guide and ball screws
Backgauge finger blocks on linear guide
CNC-controlled crowning
New upper tool 1010/A/75°/0.8/105, sectional and gooseneck
New lower tool 2009/85° (V = 16, 22, 35, and 50 mm), sectional

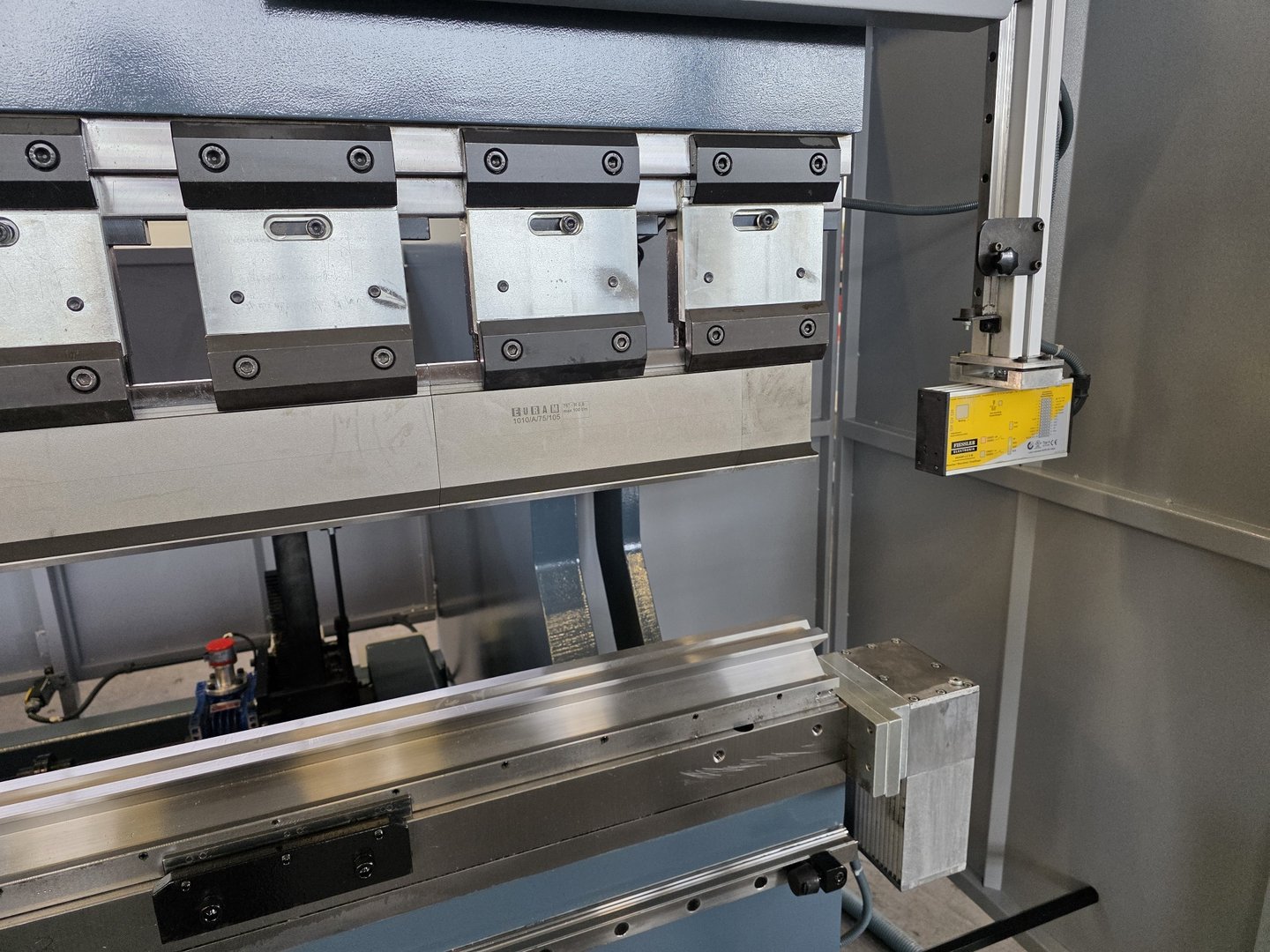

Fiessler AKAS laser safety device mounted on the upper beam

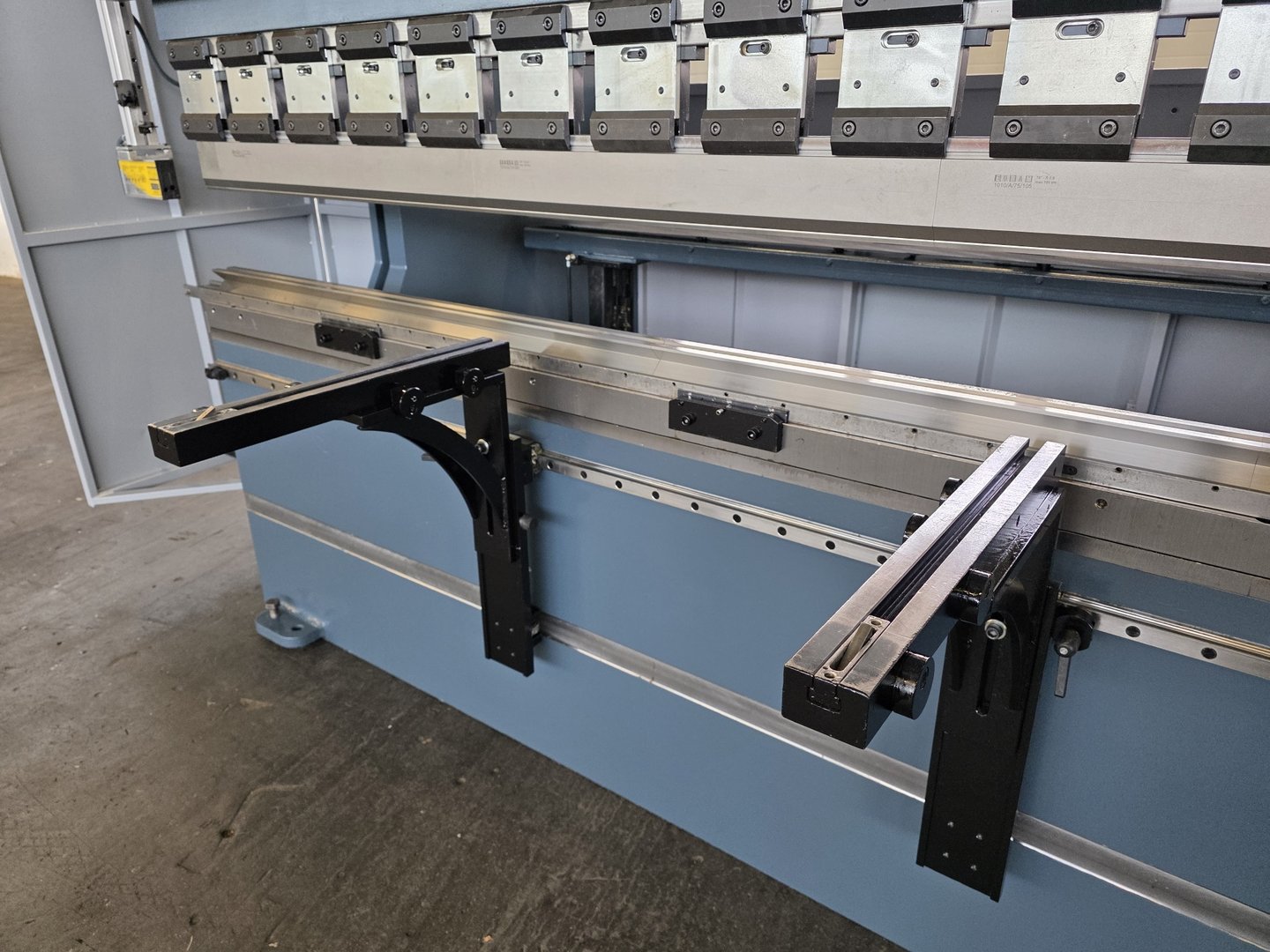

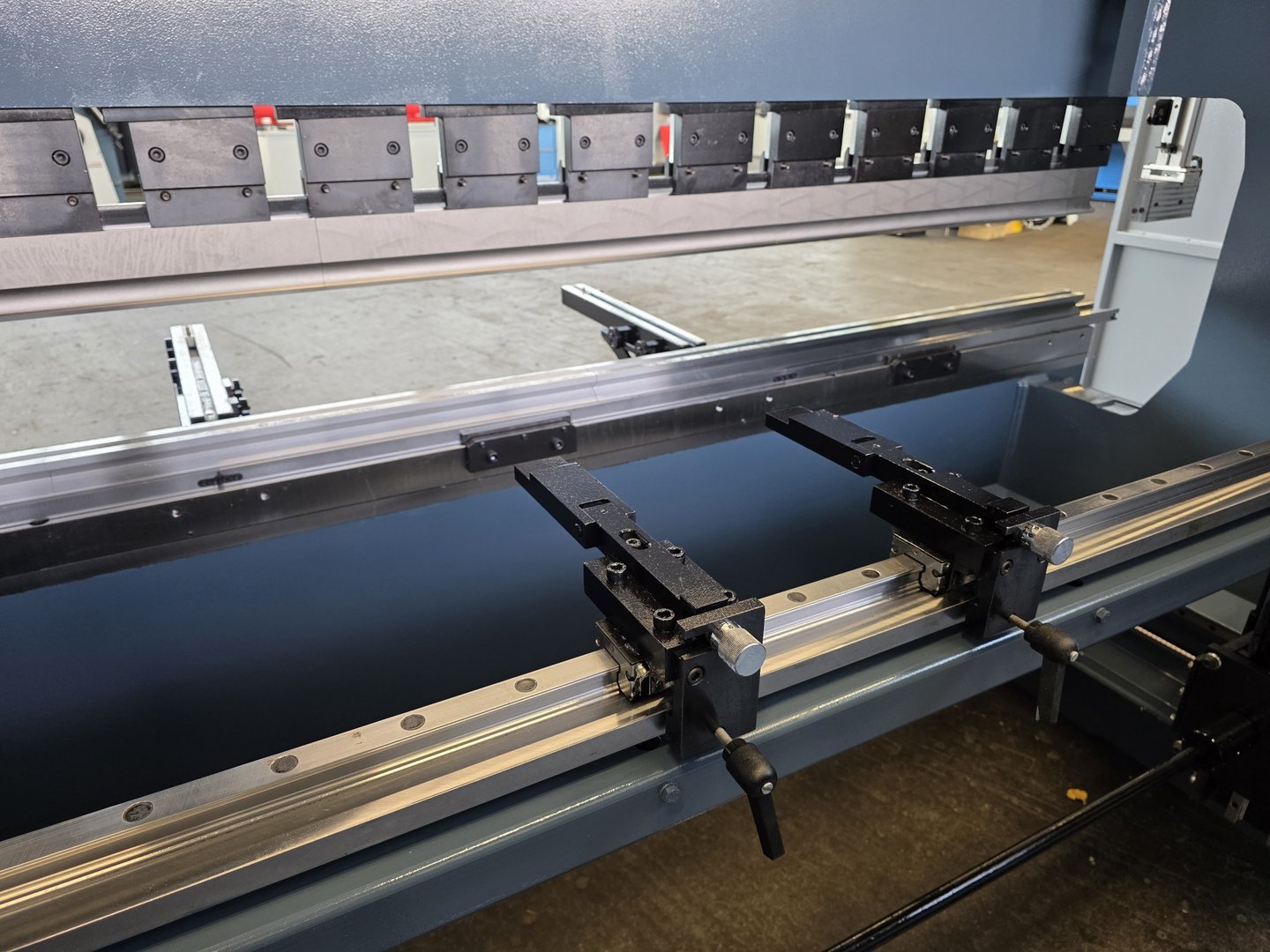

2 sheet support arms on linear guides
Foot pedal
Oil fill
Operating manual in German
