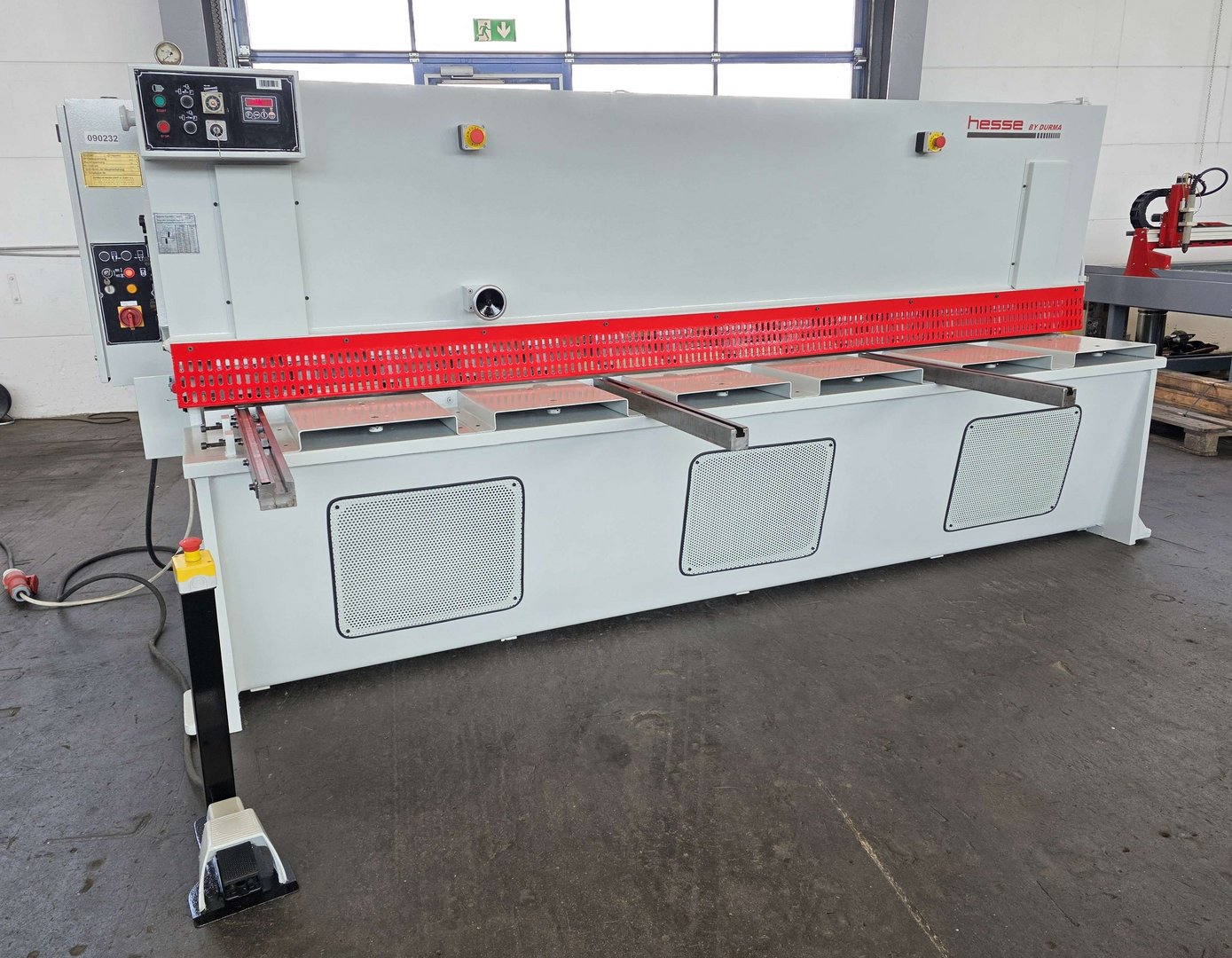

Hydraulic plate shear HESSE by DURMA JDHGM 3006
| Model | JDHGM 3006 |
| Brand | HESSE by DURMA |
| Condition | used |
| Year of manufacture | 1996 |
| Max. thickness - mild steel | 6 mm |
| Cutting length | 3100 mm |
| Stock number | 90232 |
| Origin | Türkiye |
General characteristics
| Cutting length | 3100 mm |
| Max. thickness - mild steel | 6 mm |
| Strokes | 19 1/min |
| Cutting angle | 1.5 ° |
| Number of downholders | 14 pcs. |
| Back gauge | 1000 mm |
| Motor power | 15 kW |
| Oiltank | 200 l |
Dimensions and weight
| Length | 3700 mm |
| Width | 2250 mm |
| Total width with support arm und protection fence | 2700 mm |
| Height | 1830 mm |
| Weight | 5600 kg |
Description
Swing-beam cutting design

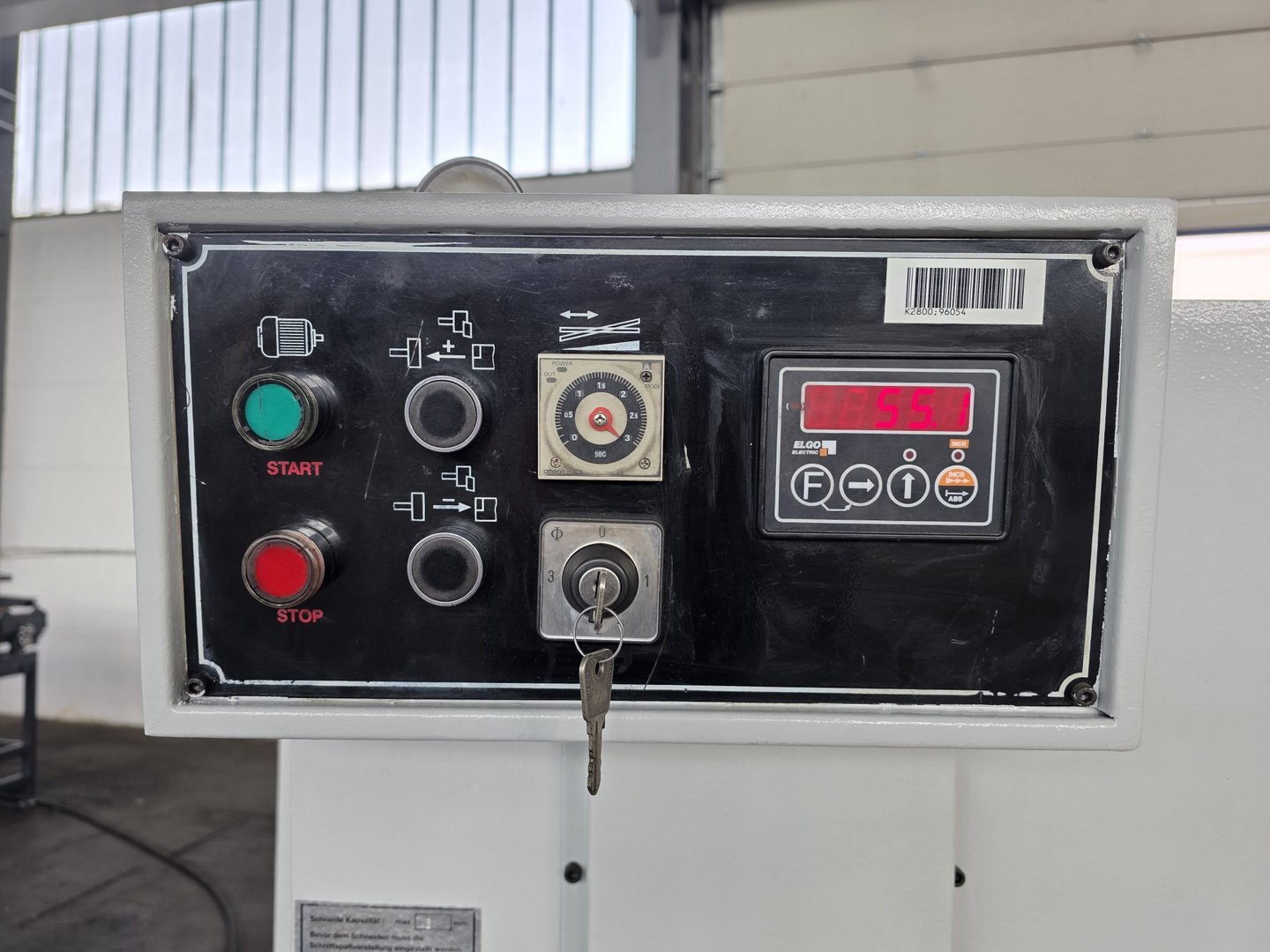

Motorized backgauge (1000 mm) with digital display
Footpedal
Central manual blade gap adjustment
Cutting line illumination
Wide support table with transfer balls
1 side gauge with scale, T-slot, and flip-stop
2 sheet support arms with T-slots
Oil fill
Light curtains at the rear of the machine
The blades were grinded
Operating manual in German with EC Declaration of Conformity
