General characteristics
| Grinding lenght | 1200 mm |
| Distance spindle - table | 730 mm |
| Table | 1200 x 600 mm |
| Magnetic table | 1200 x 600 mm |
| Table movement hydraulic | 1300 mm |
| Table speed | 5 - 30 m/min |
| Cross feed | 0-2250 m/min |
| Cross feed incremental | 0,001-32 mm |
| Max. cross feed | 685 mm |
| Automatic vertical feed | 560 mm |
| Vertical feed | 0-675 mm/min |
| Spindle revs | 500-2200 rpm |
| Spindle motor | 11 kW |
| Hydraulic motor | 5.5 kW |
| Cross feed motor | 3.1 kW |
| Feed motor grinding wheel | 3.1 kW |
| Max. workpiece weight on magnetic table | 1150 kg |
| Max. workpiece weight on t-slot table | 1600 kg |
| Grinding wheel dimensions | 405 x 75 x 127 mm |
Dimensions and weight
| Length | 4790 mm |
| Width | 3207 mm |
| Height | 2305 mm |
| Weight | 8100 kg |
Description

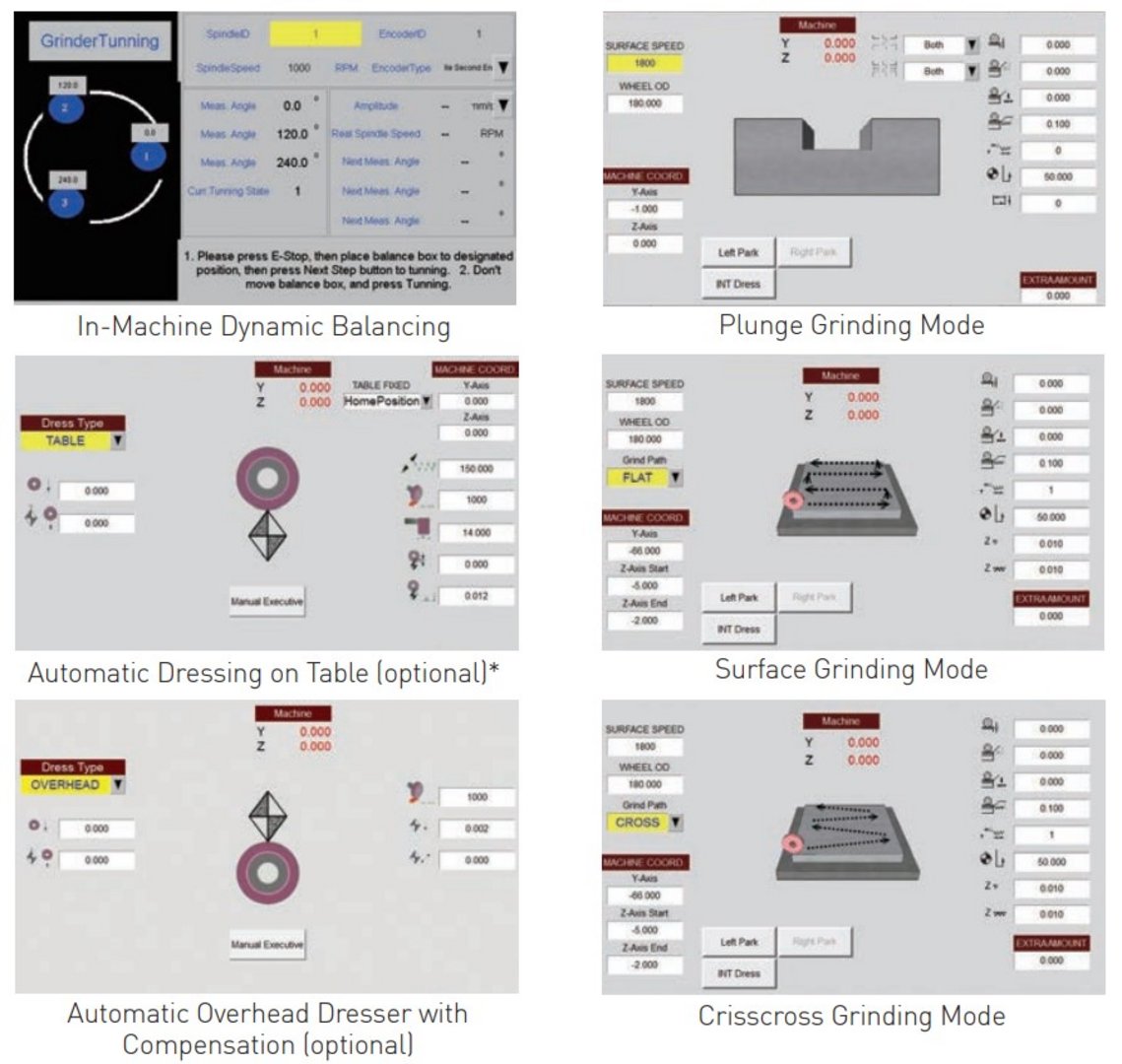

iSurface control with Touch screen for 3 axes fully automatic surface and plunge grinding system
10.4” TFT high resolution color control to ensure ease of operation
Rough increment, finish increment, spark out (0-9 times), and automatic grinding cycle
Cycle interrupt, flip over for part inspection & final dimensions set
Wheelhead will rise up to end, start or reference position nd table parks at left or right side after cycle is completed
Display accuracy 0.0001mm
I/O diagnosis & alarm display
Max. table speed (X axis) 30 m/min
Integrated machine-body temperature control
Double V table ways are coated with Turcite-B. Table is driven by hydraulic system with cooling unit
Liner guideways coupled with precision ballscrew and AC servo moter for precise position on Y and Z axes
Automatic lubrication system with a pressure switch to detect and shut down the machine when lubrication system is down
Wheel flange with scale, clamping width 43~50 mm (1.7"~2")
Grinding wheel Ø405x75xØ127mm (Ø16"x3"xØ5") double recessed
Electromagnetic chuck 1200 x 600 mm
Automatic dressing and compensation system (mounted over the wheel)
LED machine lamp
Integrated oil cooling system for lubrication, hydraulic and spindle
Splash guard
Double-sided water baffle
Heat exchanger for electric cabinet
Oil Film Guideway system
Air purge spindle
According to "CE" regulations
Operating manual in English or German
Options:
| Fully enclosed splash guard | € | 15.950,00 |
Further information
Product video

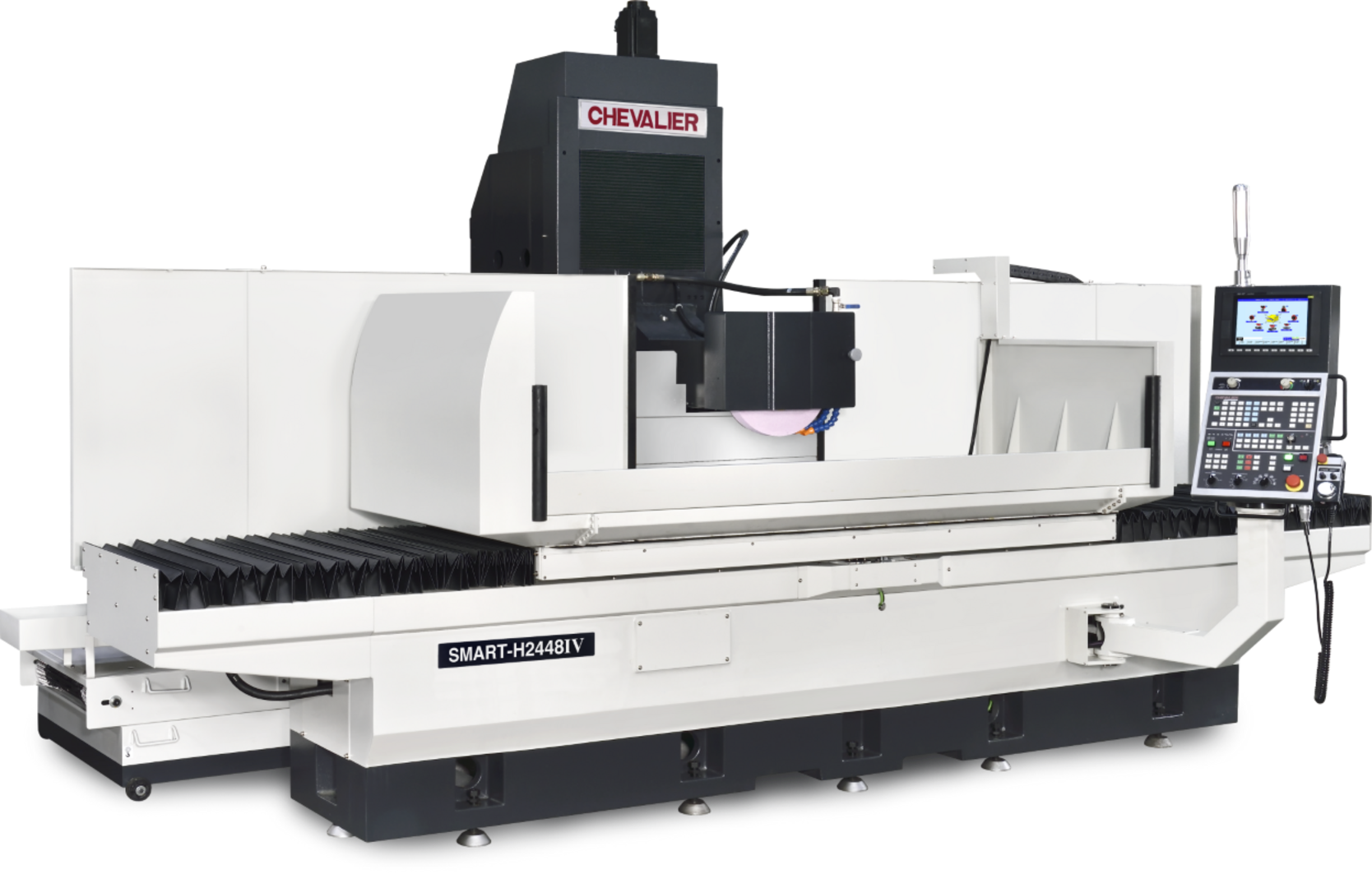

Flat grinding machine FSG-2448ADIV
