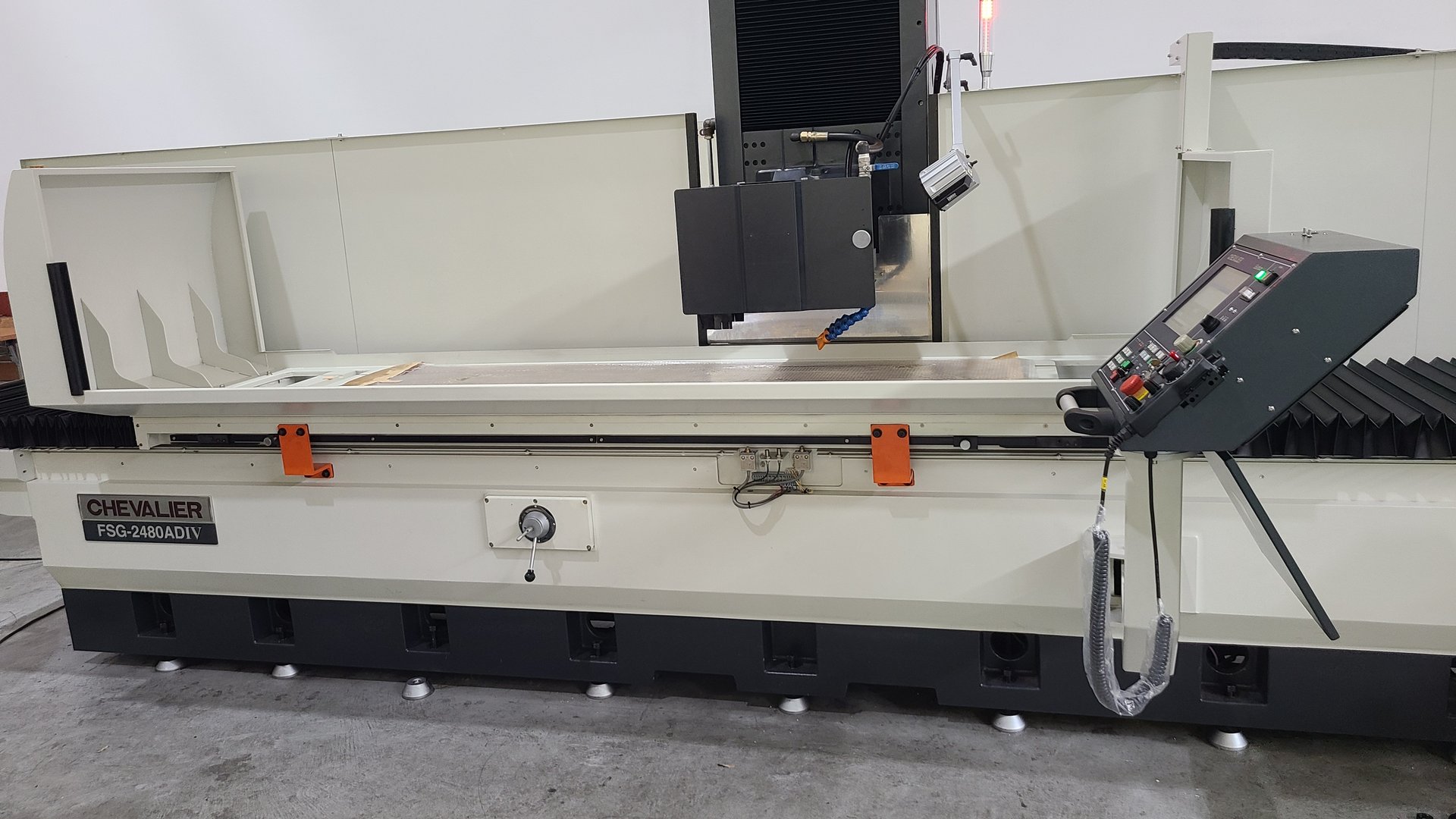

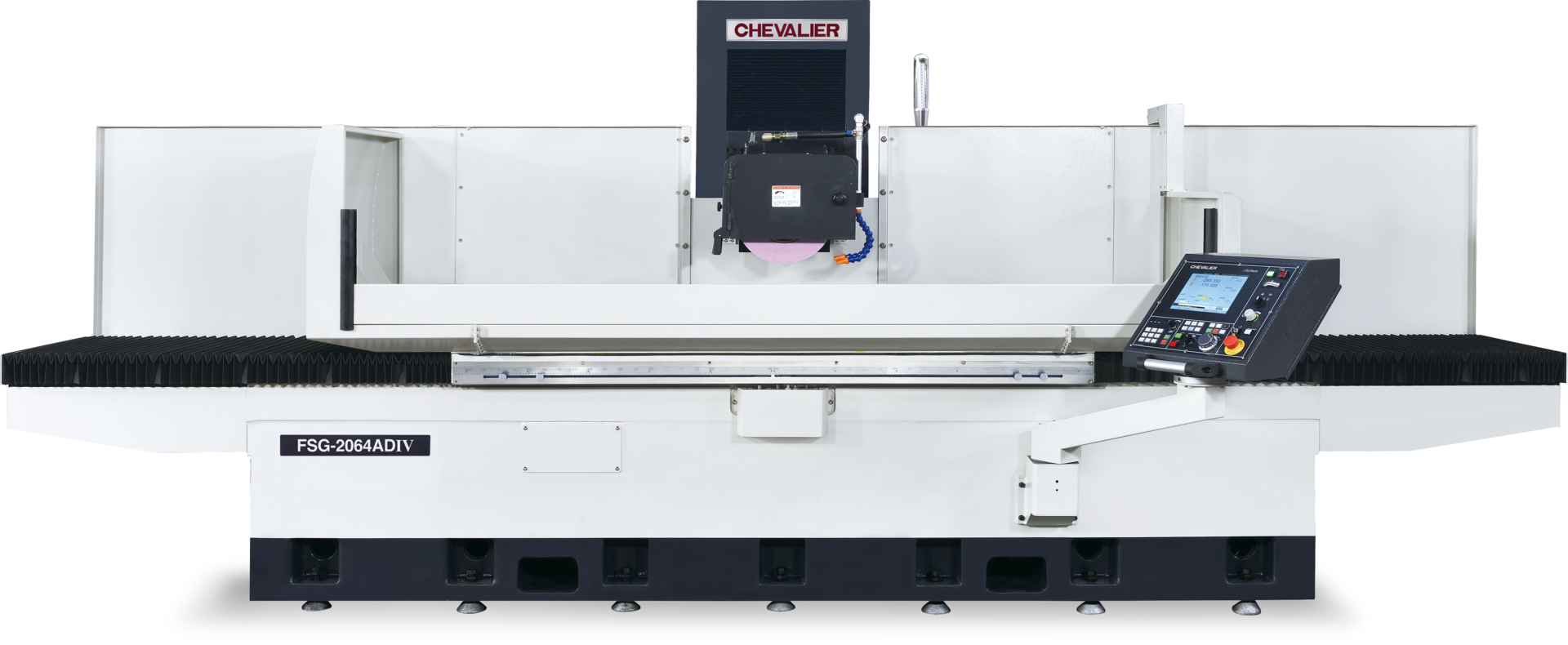

Flat grinding machine CHEVALIER FSG-2480ADIV
| Model | FSG-2480ADIV |
| Brand | CHEVALIER |
| Condition | new |
| Table | 2000 x 600 mm |
| Origin | Taiwan |
General characteristics
| Grinding lenght | 2000 mm |
| Distance spindle - table | 730 mm |
| Table | 2000 x 600 mm |
| Magnetic table | 2x 1000 x 600 mm |
| Table movement hydraulic | 2100 mm |
| Table speed | 5 - 30 m/min |
| Cross feed | 0 - 2250 m/min |
| Cross feed incremental | 0,001 - 32 mm |
| Max. cross feed | 685 mm |
| Vertical feed | 0 - 675 mm/min |
| Vertical feed incremental | 0.001 - 0.04 mm |
| Max. elevating movement | 560 mm |
| Spindle revs | 500 - 2200 rpm |
| Spindle motor | 11 kW |
| Hydraulic motor | 5.5 kW |
| Maximal table load | 1600 kg |
| Max. workpiece weight on magnetic table | 1150 kg |
| Max. workpiece weight on t-slot table | 1600 kg |
| Grinding wheel dimensions | Dm. 405 x 75 x 127 mm |
| Servo-axis motors Y/Z | je 3,1 |
Dimensions and weight
| Length | 6225 mm |
| Width | 3207 mm |
| Height | 2305 mm |
| Transport dimensions | 6530 × 3200 ×3350 (brutto 13.500 kg) mm |
| Weight | 10200 kg |
Description

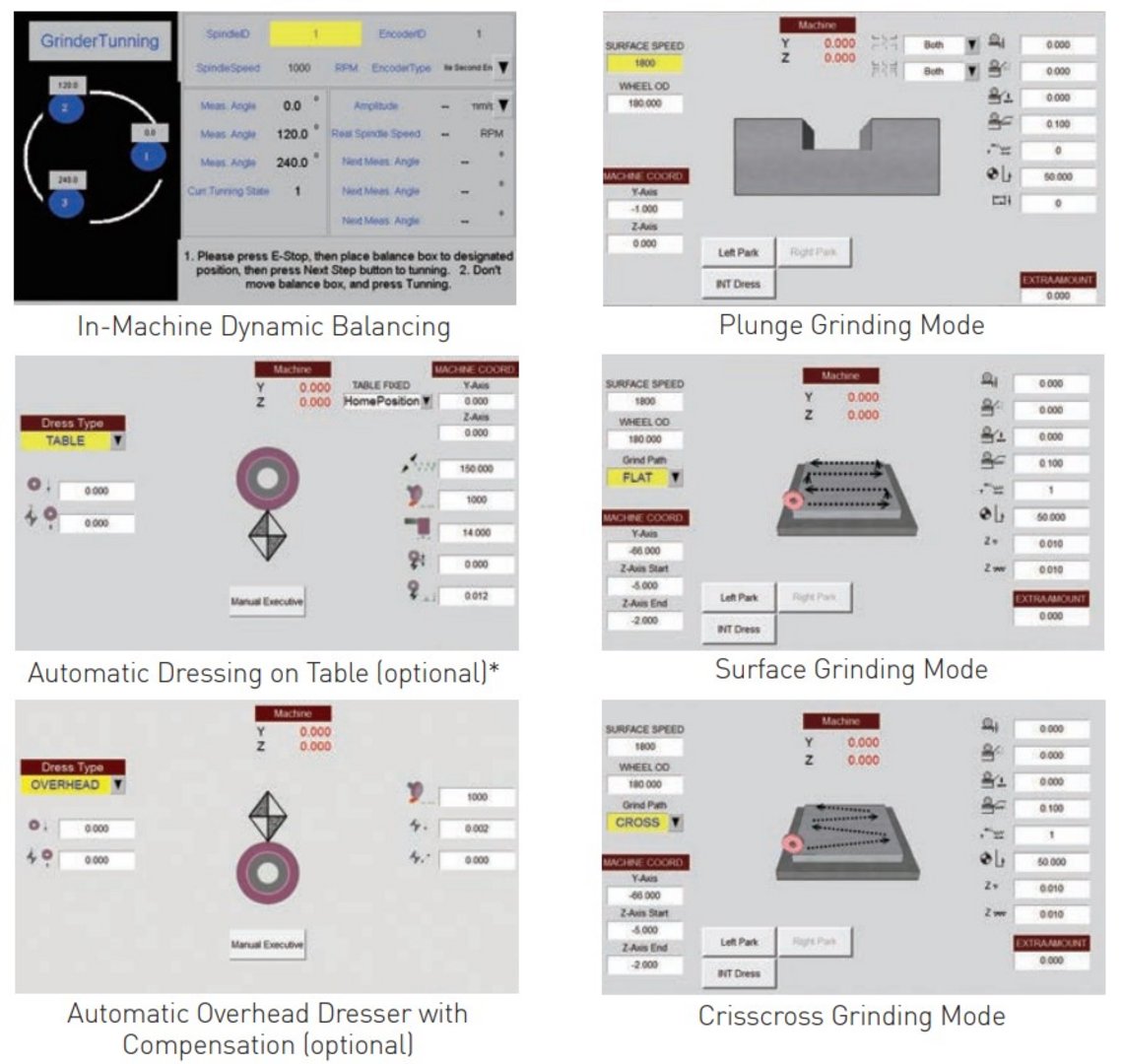

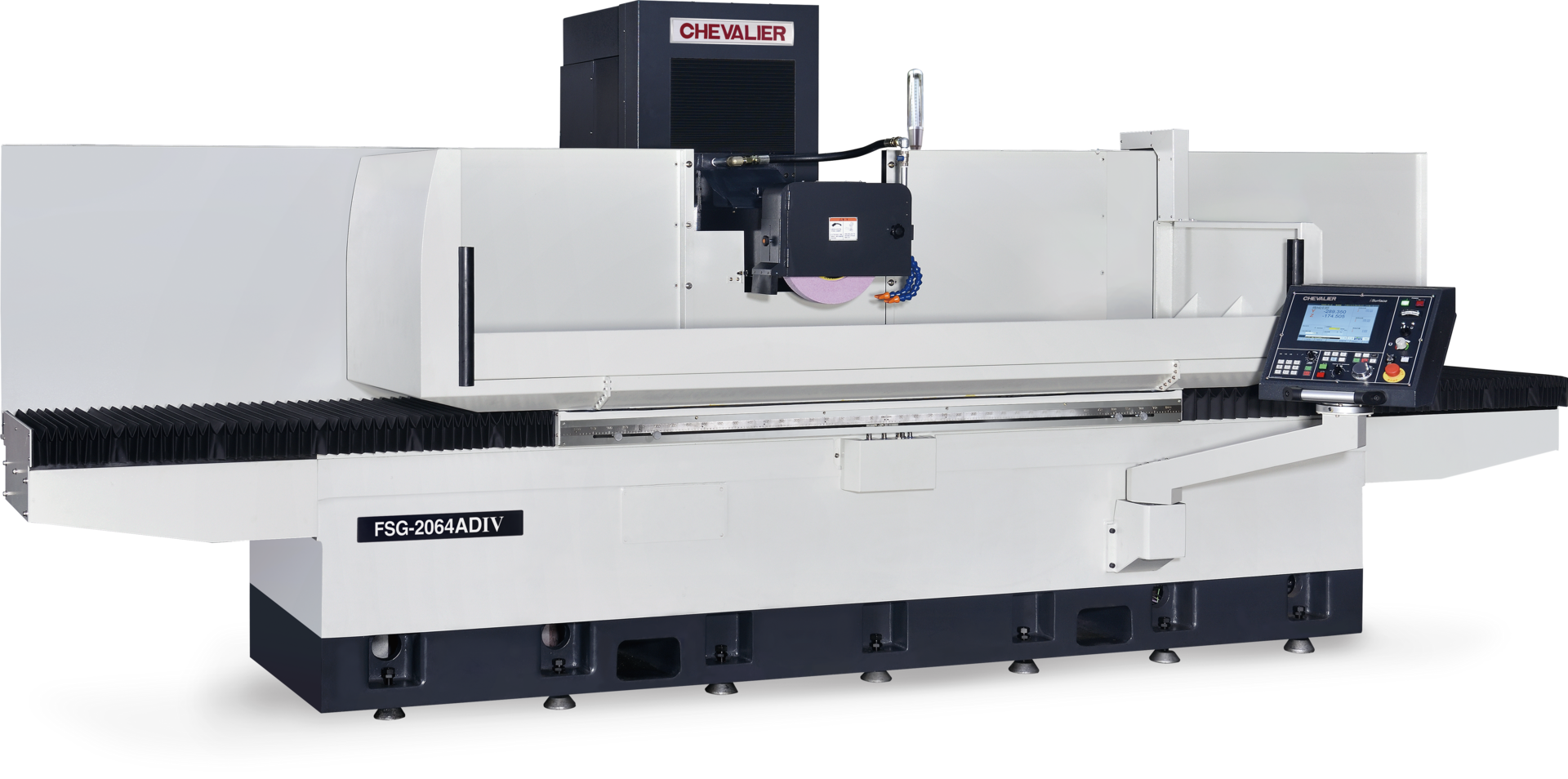

10.4" graphic NC control on a swivel arm with touchscreen for:
Operating mode selection
Cycle selection and program creation
Surface grinding
Cross grinding
Plunge grinding
Dressing with automatic compensation
Semi-automatic balancing in the machine
Automatic spindle speed for constant surface speed
Spindle load visualization
Unbalance control
Graphical status monitoring
Alarm list
Max. table speed 30 m/min
Integrated machine body temperature control
Turbide-coated double V-guides
Hydraulic table drive with cooling
Linear guides with recirculating ball screws and AC motors for precise positioning in the X and Z axes
Automatic lubrication with a pressure switch for automatic stop in case of pressure drop
Electro-magnetic chuck 2x 1000 x 600 mm
Coolant system with automatic paper filter and magnetic separator (500 l)
Automatic dressing device mounted on the table, without diamond, with automatic compensation
Grinding wheel flange with 1 grinding wheel
Grinding wheel balancing stand
LED machine light
Machine and equipment according to CE regulations
Operating manual in GERMAN or ENGLISH
Options:

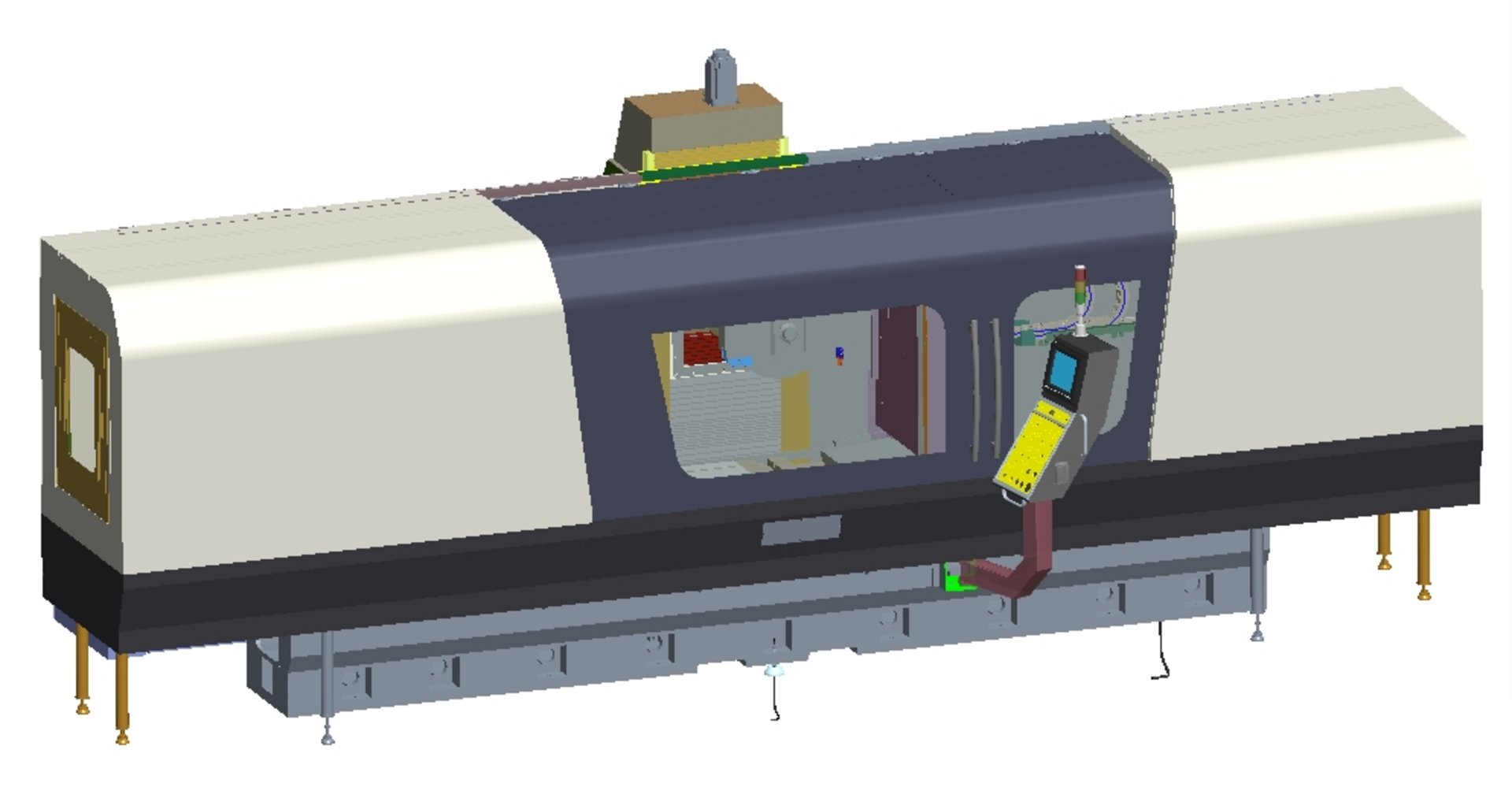

Complete enclosure of the work area
