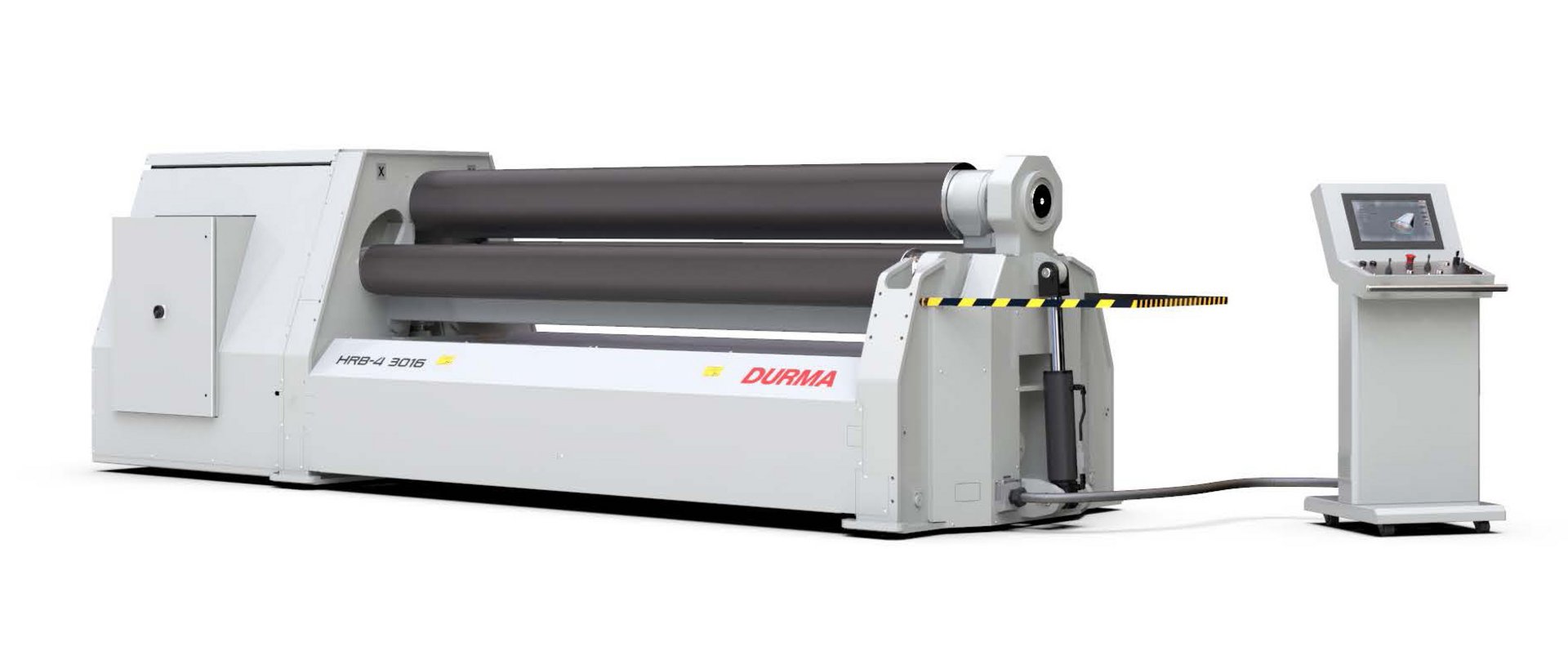

Hydraulic 4-roll plate bending machine HESSE by DURMA HRB-4 30360
| Model | HRB-4 30360 |
| Brand | HESSE by DURMA |
| Condition | new |
| Bending length | 3100 mm |
| Upper roll diameter | 360 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 3100 mm |
| Max. bending capacity - mild steel | 25 |
| Max. plate thickness without prebending at D=5x upper roll diam. - mild steel | 25 mm |
| Max. plate thickness without prebending at D=3x upper roll diam. - mild steel | 20 mm |
| Max. plate thickness without prebending at D=1,5x upper roll diam. - mild steel | 20 mm |
| Max. plate thickness with prebending at D=5x upper roll diam. - mild steel | 20 mm |
| Max. plate thickness with prebending at D=1,5x upper roll diam. - mild steel | 16 mm |
| Upper roll diameter | 360 mm |
| Lower roll diameter | 360 mm |
| Lateral roll diameter | 270 mm |
| Max. opening | 60 mm |
| Working height | 1510 mm |
| Motor power | 22 kW |
Dimensions and weight
| Length | 5560 mm |
| Width | 2060 mm |
| Height | 2050 mm |
| Weight | 16750 kg |
Description
4 rolls
fully hydraulic drive of upper and lower roll (from 30 mm bending capacity all four rolls) by planetary gear box
hydr. side rolls positioning with electronical synchronisation
hydr. lower roll feed with mechanical synchronisation
adjustable pinching pressure
variable rolling speed
hardened rolls
conical bending device
hydraulic drop-end bearing
moveable control panel
overload protection
user manual in GERMAN or ENGLISH
according to CE rules
optional:
NC control
upper and lateral supports
important issues at conical bending:
the max. sheet metal thickness is equivalent to 50 % of nominal capacity
