Hydraulic plate shear HESSE by DURMA DHGM 3010
| Model | DHGM 3010 |
| Brand | HESSE by DURMA |
| Condition | used |
| Year of manufacture | 2002 |
| Max. thickness - mild steel | 10 mm |
| Cutting length | 3100 mm |
| Stock number | 90129 |
| Origin | Türkiye |
General characteristics
| Cutting length | 3100 mm |
| Max. thickness - mild steel | 10 mm |
| Gap in side frame | 350 mm |
| Strokes | 10 1/min |
| Cutting angle | 1.5 ° |
| Back gauge | 1000 mm |
| Motor power | 22 kW |
Dimensions and weight
| Length | 3800 mm |
| Total width with support arm und protection fence | 3600 mm |
| Height | 2000 mm |
| Weight | 9800 kg |
Description
Swing cut construction
NC-preselection system ENC100 for back gauge, cutting length and piece counter

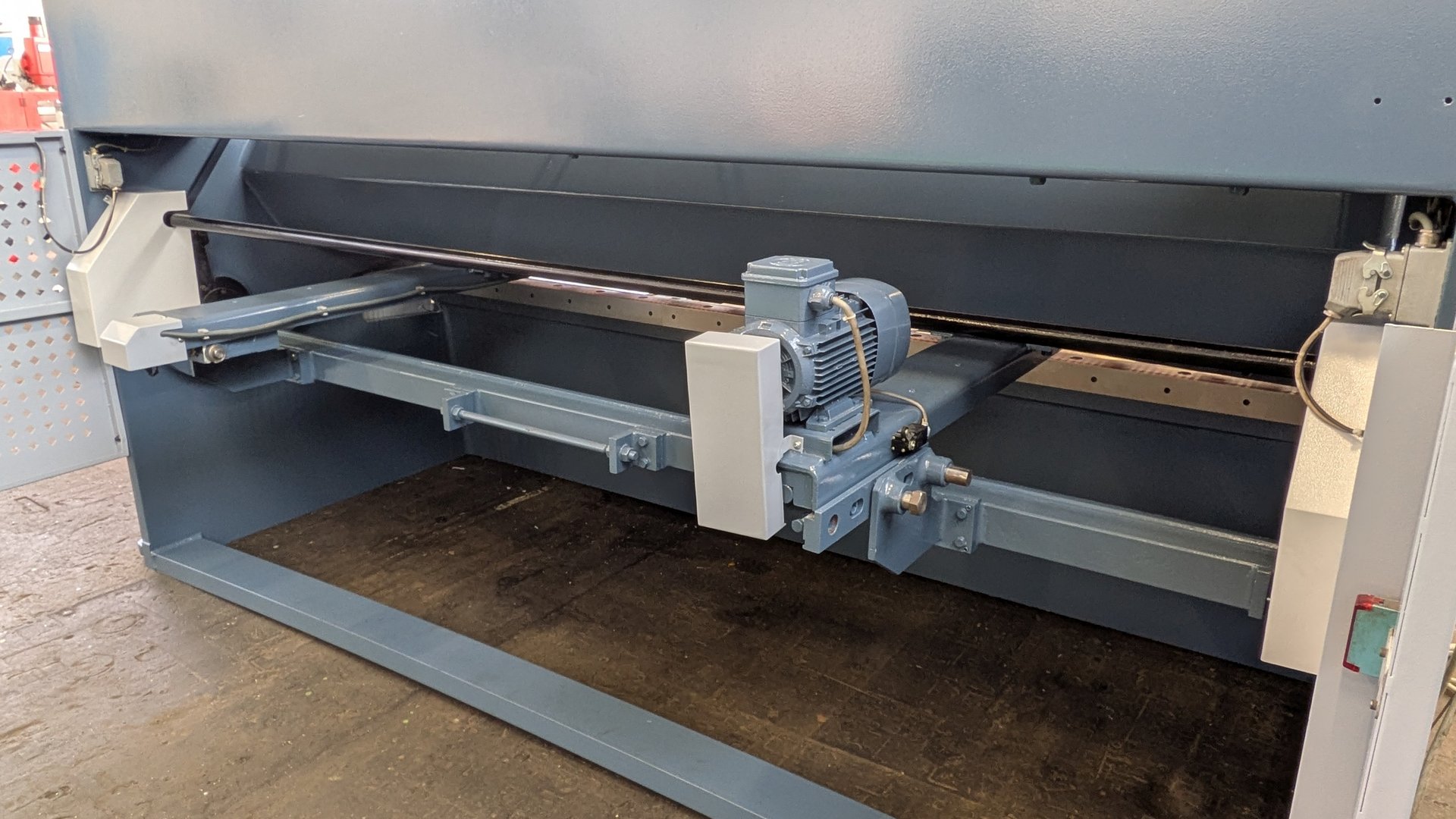

Motorized back gauge 1000 mm on ball screws, folding upwards
Hydraulic hold down pistons
Foot switch
Central, manual blade gap adjustment
Cutting line illumination
Broad table with balls

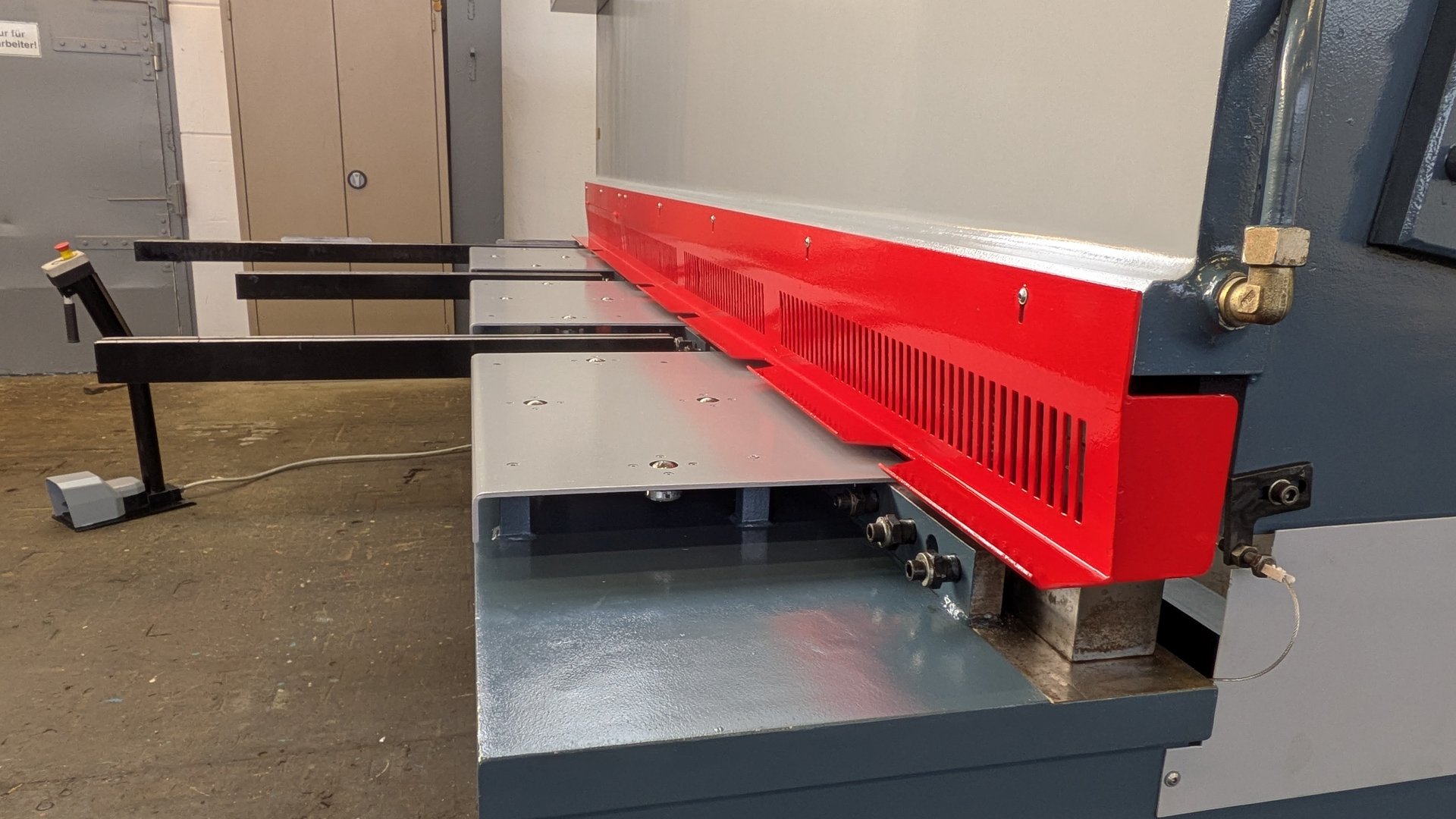

Fold up finger guard 1.000 mm
1 squaring arm 1. 500 mm with scale, T-slot and tilting cam
2 supporting arms 1.000 mm with T-slot
Oilfilling
Light barrier on the back of the machine
User manual in GERMAN with EC declaration of conformity
Further information
Product video
Hydraulic plate shear DHGM 3010
