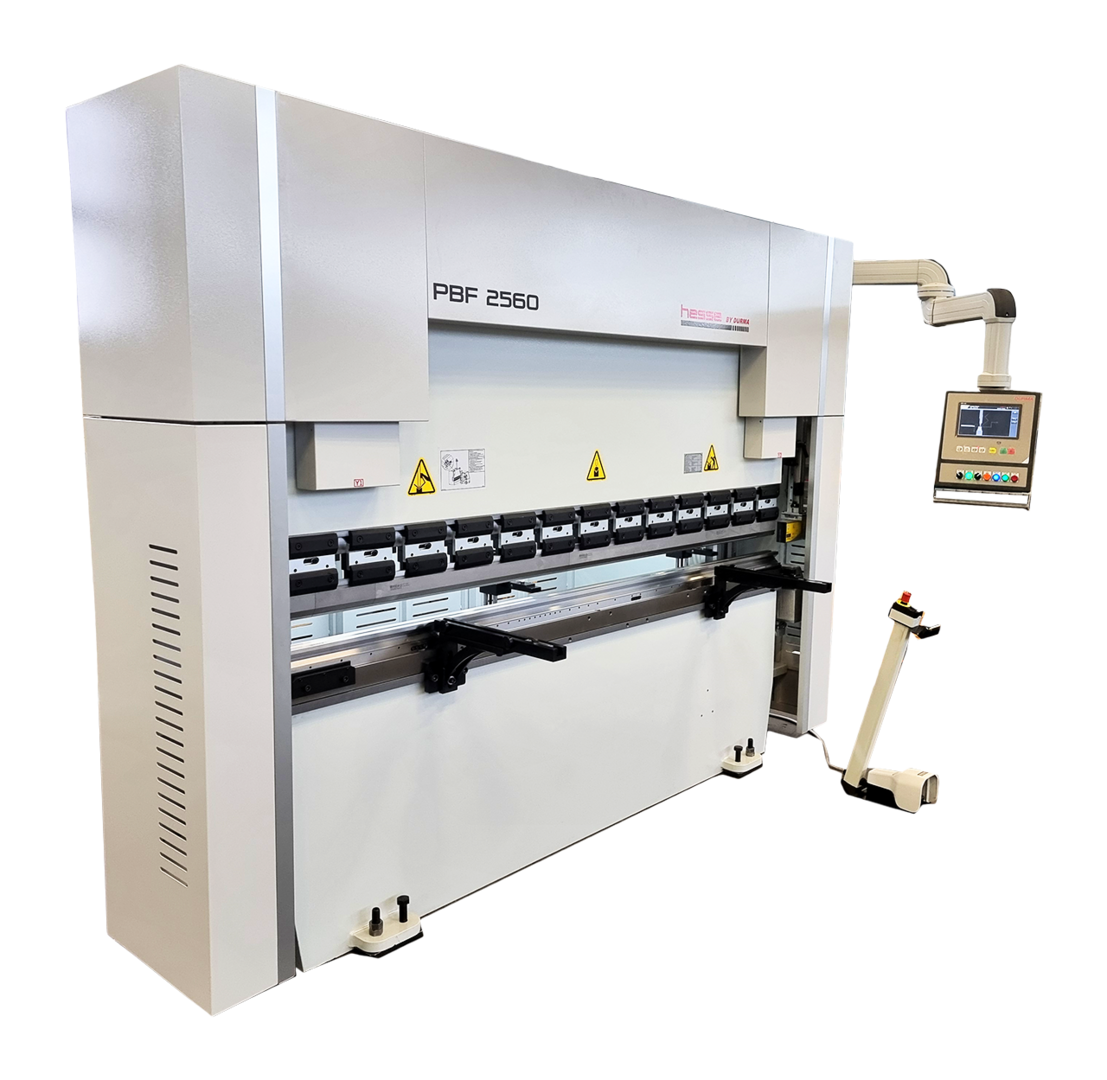

Hydraulic CNC press brake HESSE by DURMA PBF 2560
| Model | PBF 2560 |
| Brand | HESSE by DURMA |
| Condition | new |
| pressing capacity | 60 to |
| Bending length | 2550 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 60 to |
| Bending length | 2550 mm |
| Axes | Y1 / Y2 and X-axis |
| Stroke | 160 mm |
| Inside distance between side frames | 2150 mm |
| Gap in side frame | 250 mm |
| Daylight | 350 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 120 mm/s |
| Working speed Y-axis | 9 |
| Retractionspeed Y-axis | 70 |
| Back gauge travel X-axis | 620 (with optional R-axis: 500 mm) mm |
| Back gauge speed X-axis | 250 |
| Table height | 813 mm |
| Table width | 104 mm |
| Oiltank | 100 l |
| Motor power | 5.5 kW |
Dimensions and weight
| Length | 3250 mm |
| Width | 1200 mm |
| Height | 2350 mm |
| Weight | 4250 kg |
Description
3 axes (Y1, Y2, and X axis)

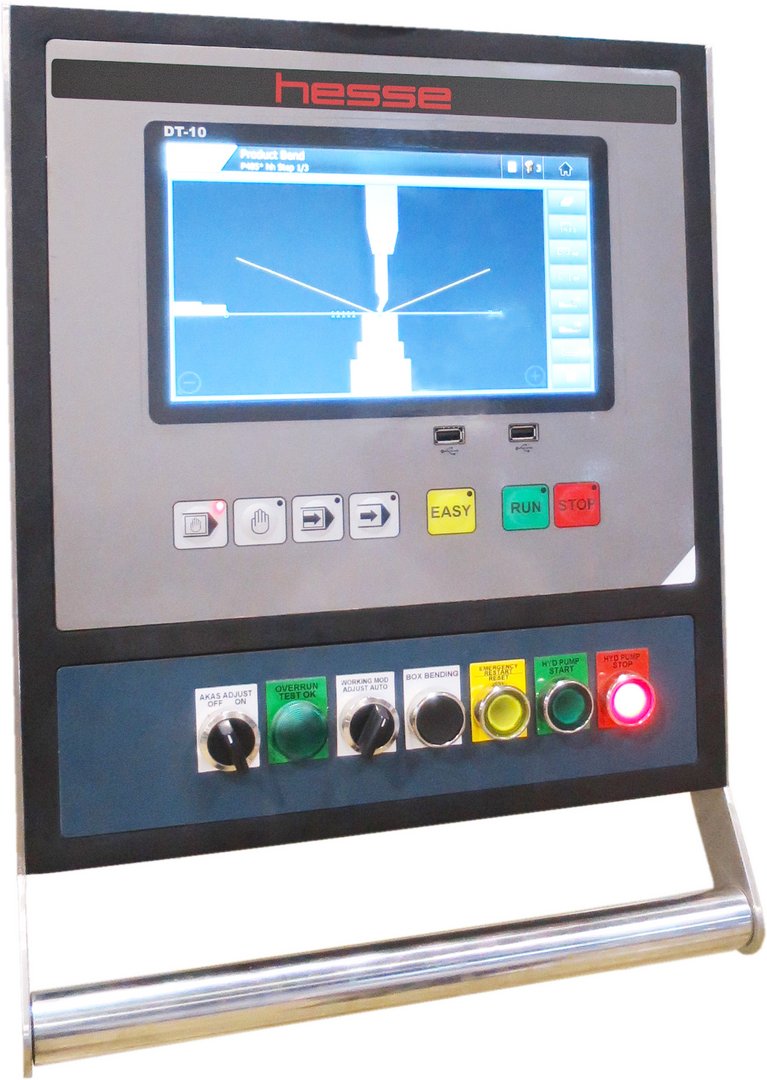

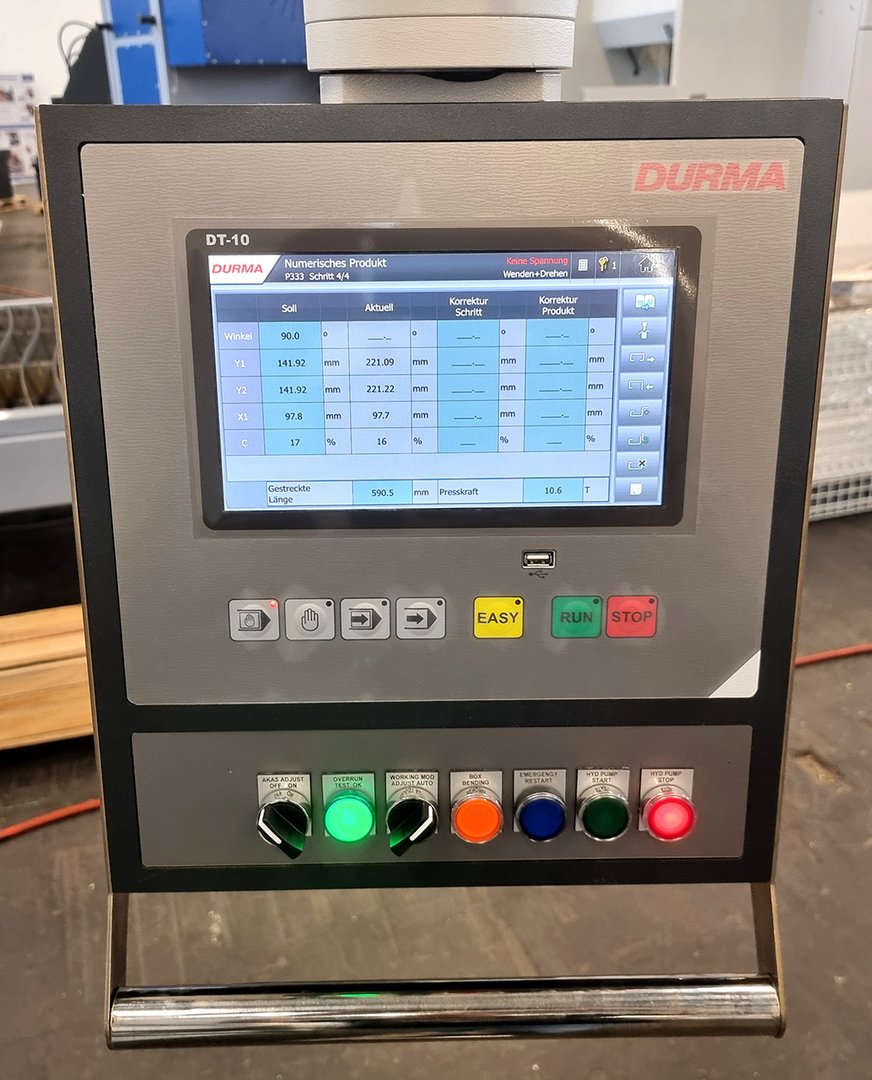

CNC control DT-10
- intuitive touch-screen control (simple drawing of the bending outline with your finger)
- user friendly programming in dialogue form
- automatic calculation of bending sequence
- automatic calculation of the blank sheet size
- graphic product and tool memory
- correction possibility
- USB interfaces for backup and programm transportation
- PC software, generating programms on the PC and transfer to the machine by USB

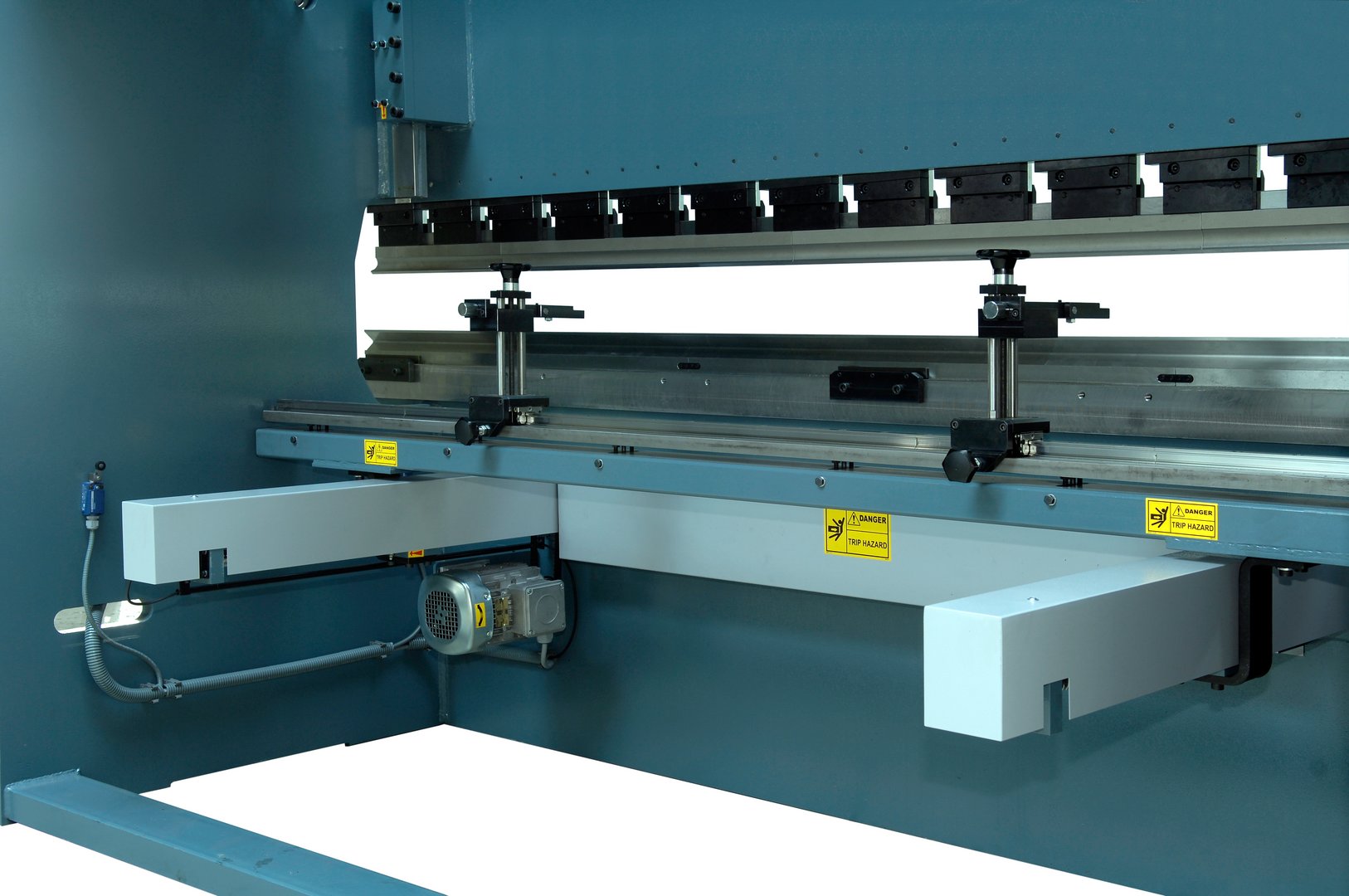

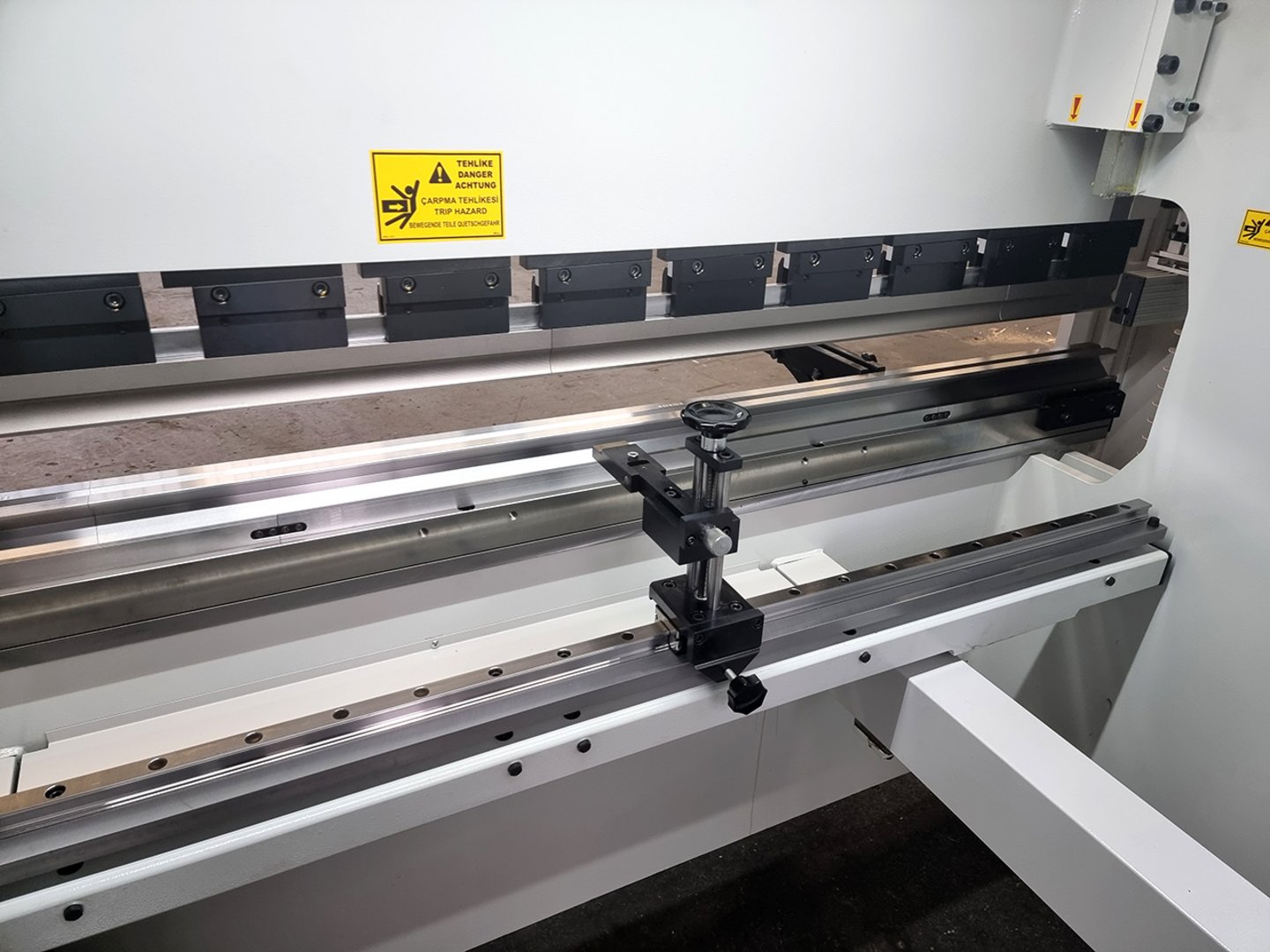

CNC controlled back gauge with linear guide and ball screw spindles
manual, centralized adjustable crowning table
intermediate clamps for upper tool
upper tool 1010/A/75°/0,8, sectioned, bending radius hardened and ground
die holder for 60 mm dies
die type 2009/85° (V 16, 22, 35, 50 mm) sectioned, geteilt, bending radii hardened and ground
laser safety device Fiessler AKAS mounted on the upper beam

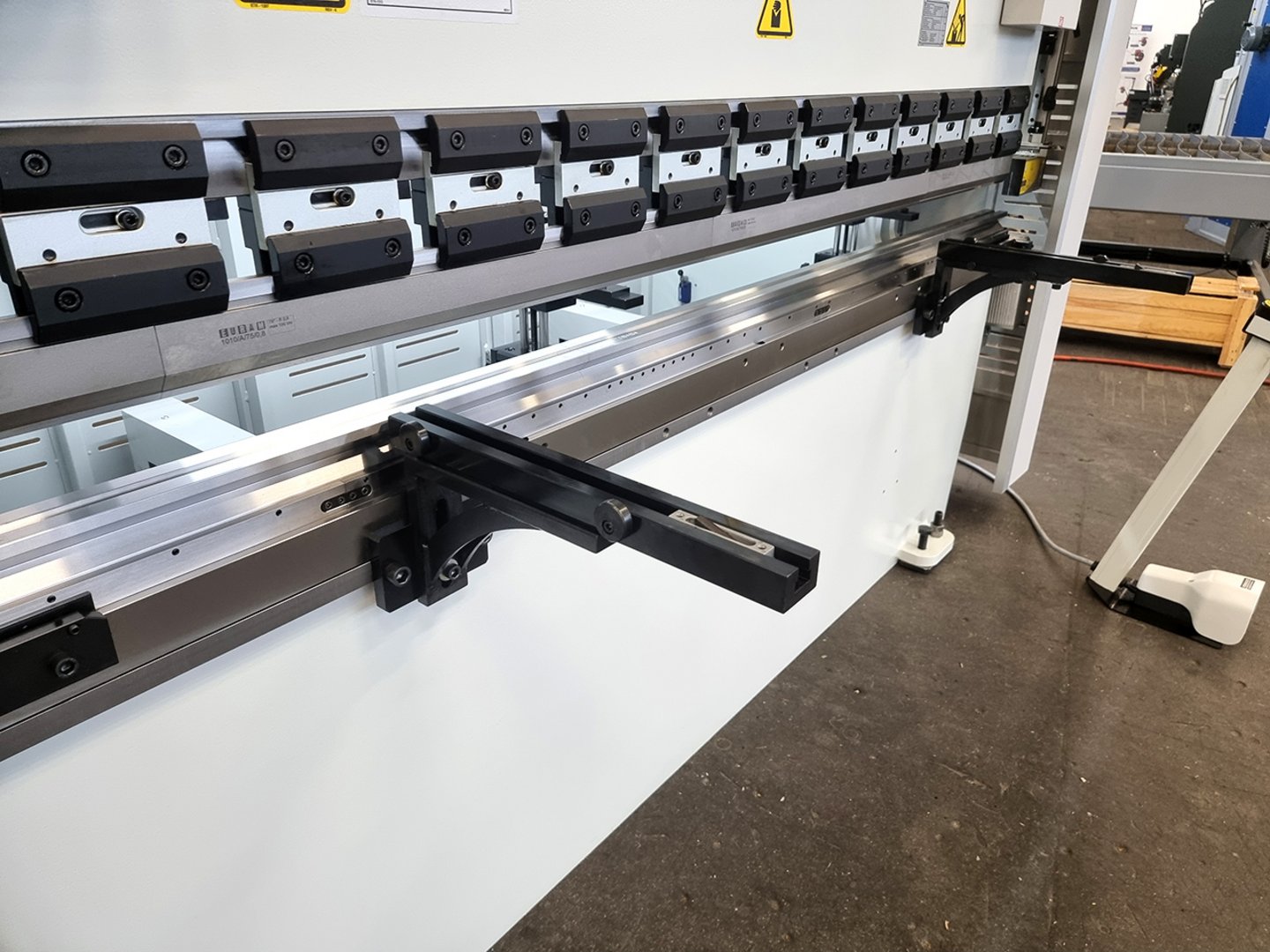

sheet support arms
protection covers on the sides and back side
according to CE rules
oilfilling
users manual in GERMAN or ENGLISH

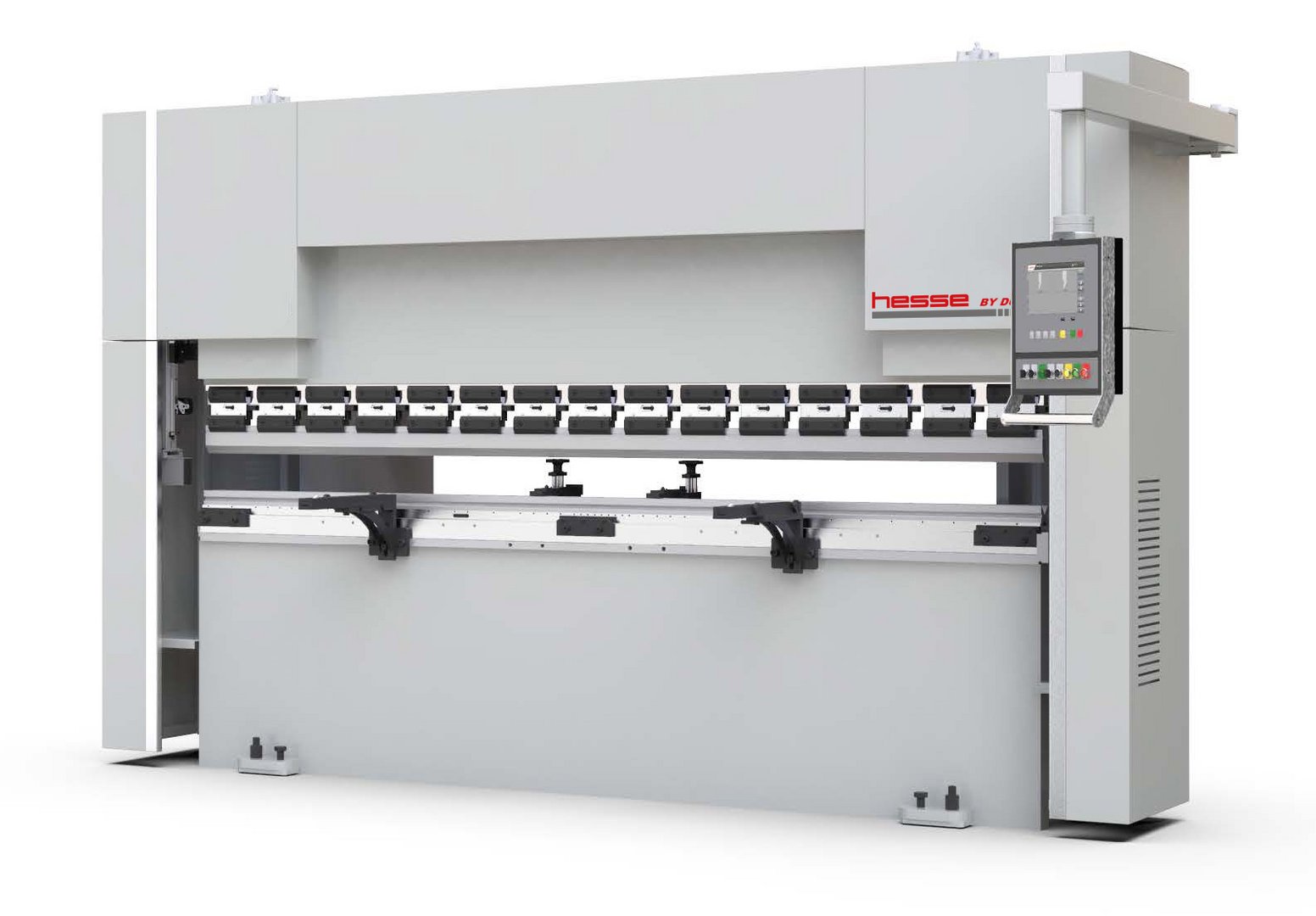

(sample photo shows mod. PBF 30200)
Option:
|
CNC controlled crowning table |
€ 2.830,- |
|
CNC controlled R-axis (adjustment range in X = 500 mm) |
€ 6.380,- |
|
DBend, 3D CAD/CAM importing- and simulation program (step, iges and dxf file import) |
€ 2.110,- |
we have more than 600 references!
