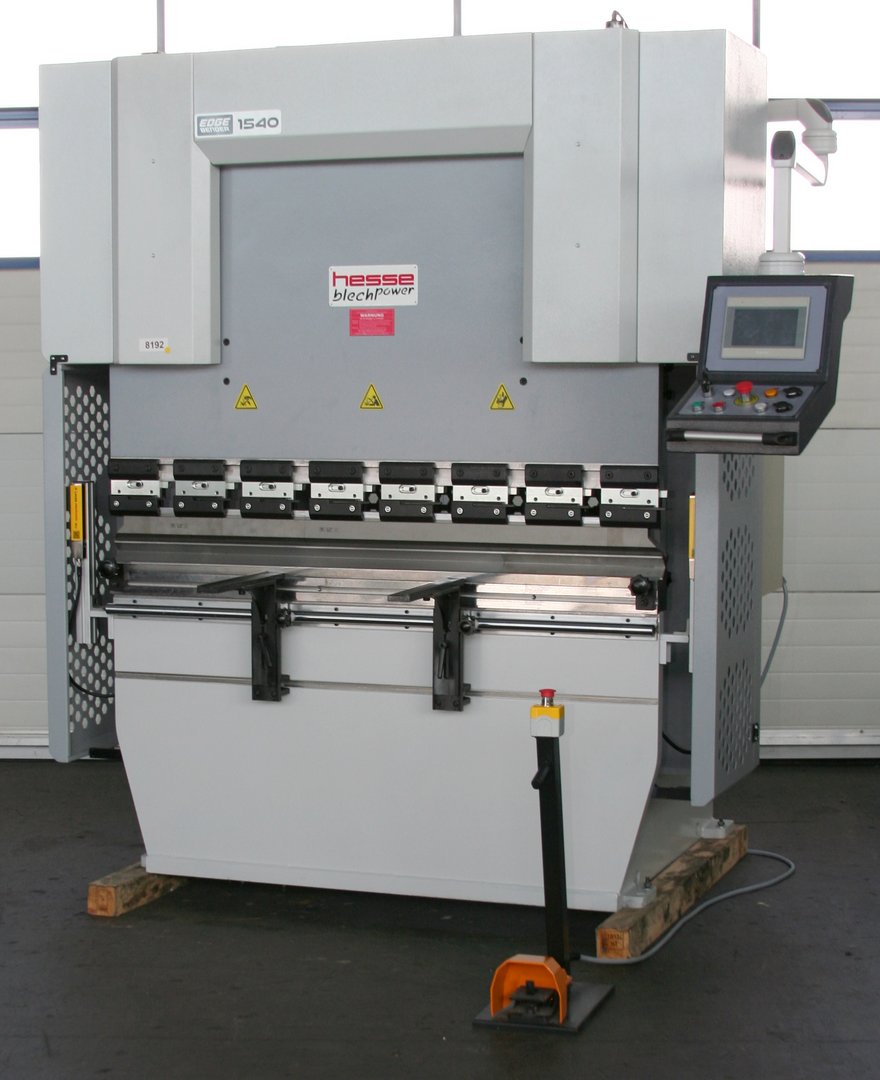

Hydraulic NC press brake HESSE by ISITAN Edgebender 1540
| Model | Edgebender 1540 |
| Brand | HESSE by ISITAN |
| Condition | new |
| pressing capacity | 40 to |
| Bending length | 1550 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 40 to |
| Bending length | 1550 mm |
| Axes | X and Y axis |
| Stroke | 160 mm |
| Inside distance between side frames | 1260 mm |
| Gap in side frame | 320 mm |
| Daylight | 380 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 90 mm/s |
| Working speed Y-axis | 10 |
| Back gauge travel X-axis | 500 mm |
| Table height | 845 mm |
| Table width | 100 mm |
| Oiltank | 120 l |
| Motor power | 4 kW |
Dimensions and weight
| Length | 2000 mm |
| Width | 1600 mm |
| Height | 2235 mm |
| Weight | 3450 kg |
Description

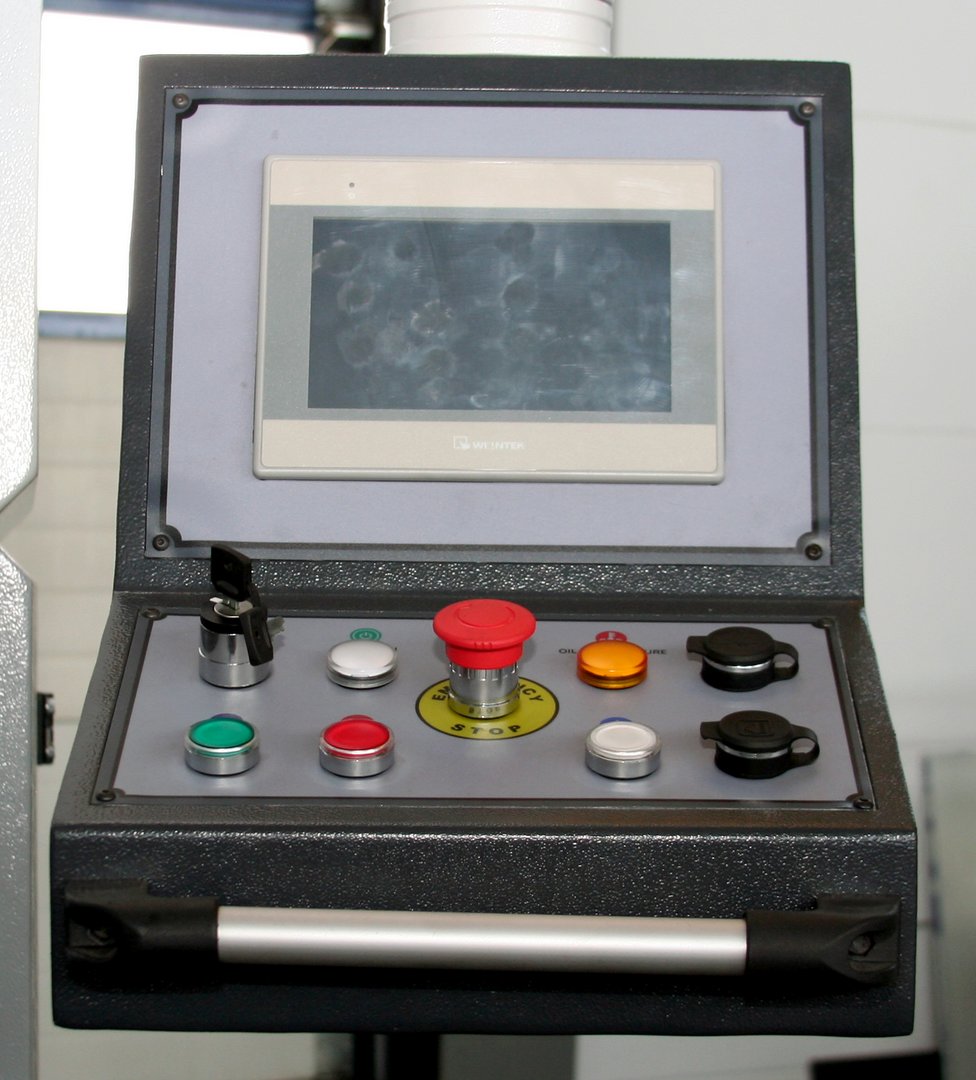

NC control for immersion depth (Y) and back gauge (X)
synchronization control by means of a torsion shaft
sheet support arms
light barriers

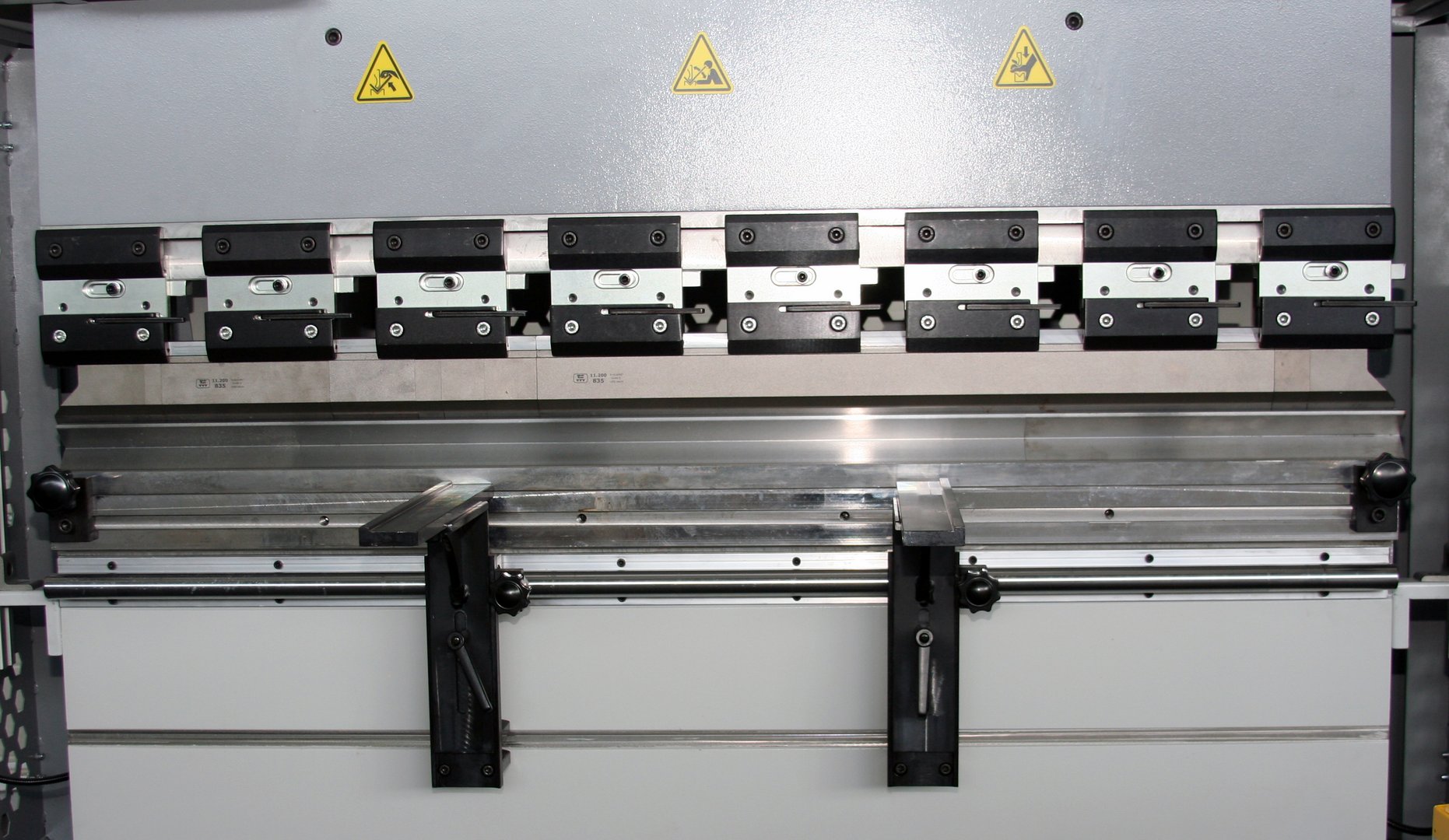

intermediate pieces for the upper tool clamping
die seat and die
die seat with 4 V openings
split upper tool, slightly cranked, divided

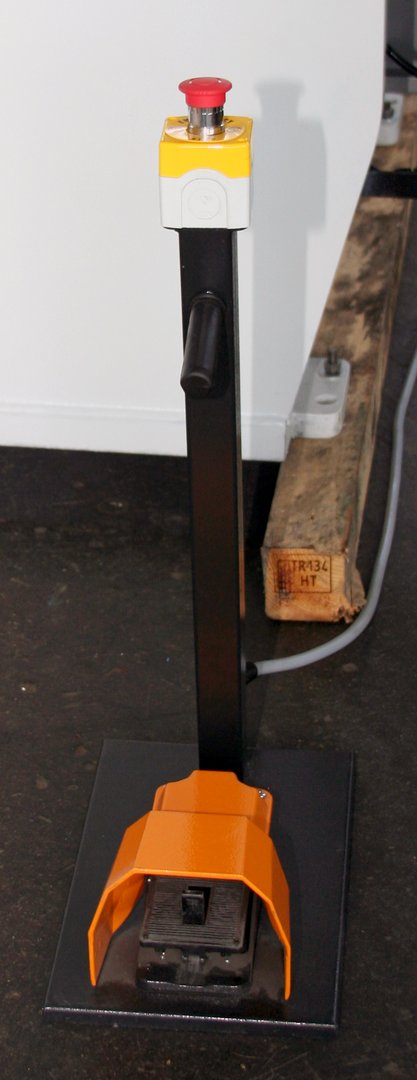

pedal
user manual in GERMAN or ENGLISH
Optional equipment:
laser safety device Fiessler
NC controlled R axis
manual crowning table
motorized crowning table
