General characteristics
| Punching power | 110 ton |
| Throat depth | 300 mm |
| Number of stations | 5 |
| Cylinder | 2 |
| Max. diameter at sheet thickness (mild steel) | 40x20 (28x28) mm |
| Stroke | 80 mm |
| Strokes | 17 1/min |
| Flat steel | 600x15 (400x20) mm |
| Blade length | 605 mm |
| Angle steel | 152x152x13 mm |
| Round / square steel | 50/50 mm |
| Notcher | 90x52x13 mm |
| Motor | 5 kW |
Dimensions and weight
| Length | 2130 mm |
| Width | 1200 mm |
| Height | 2200 mm |
| Weight | 2500 kg |

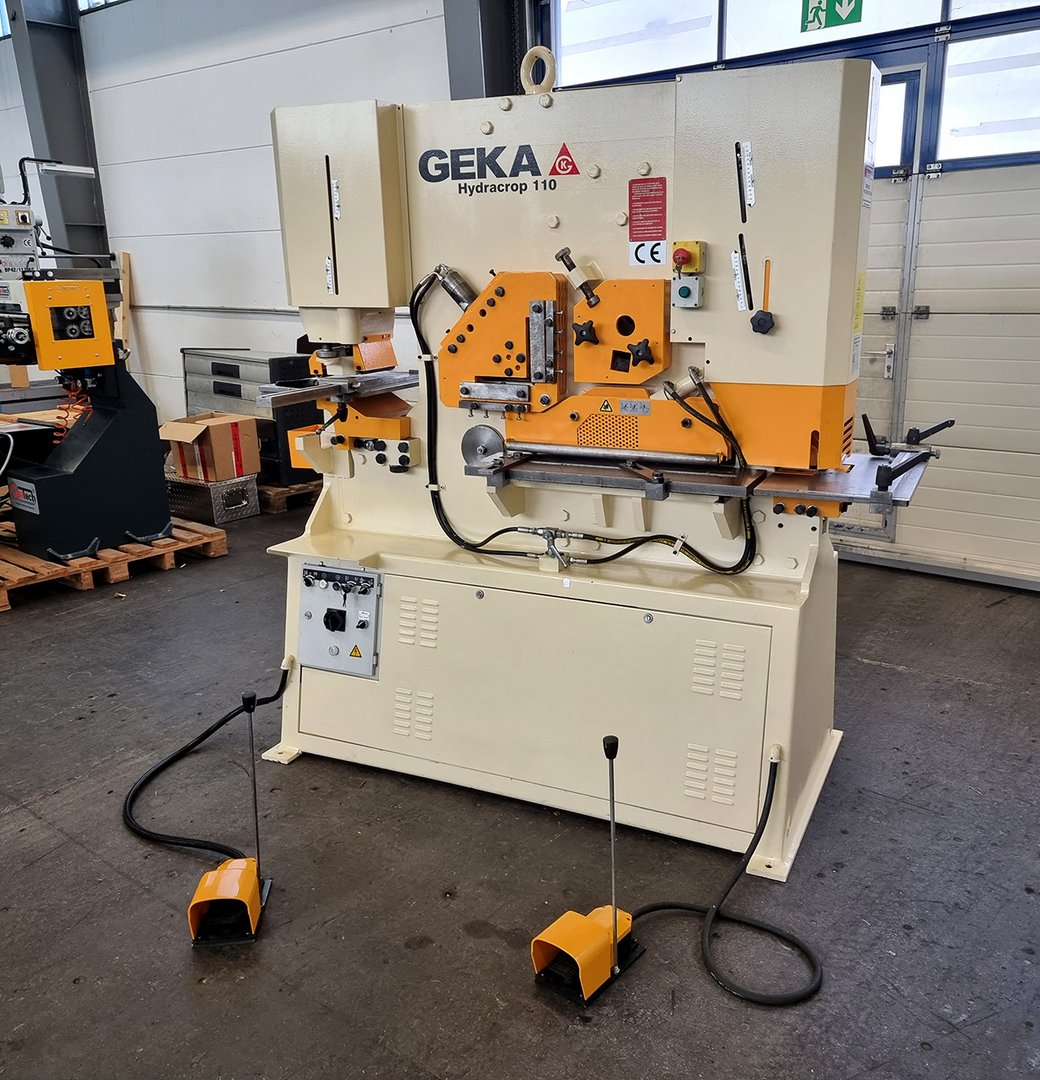

Description

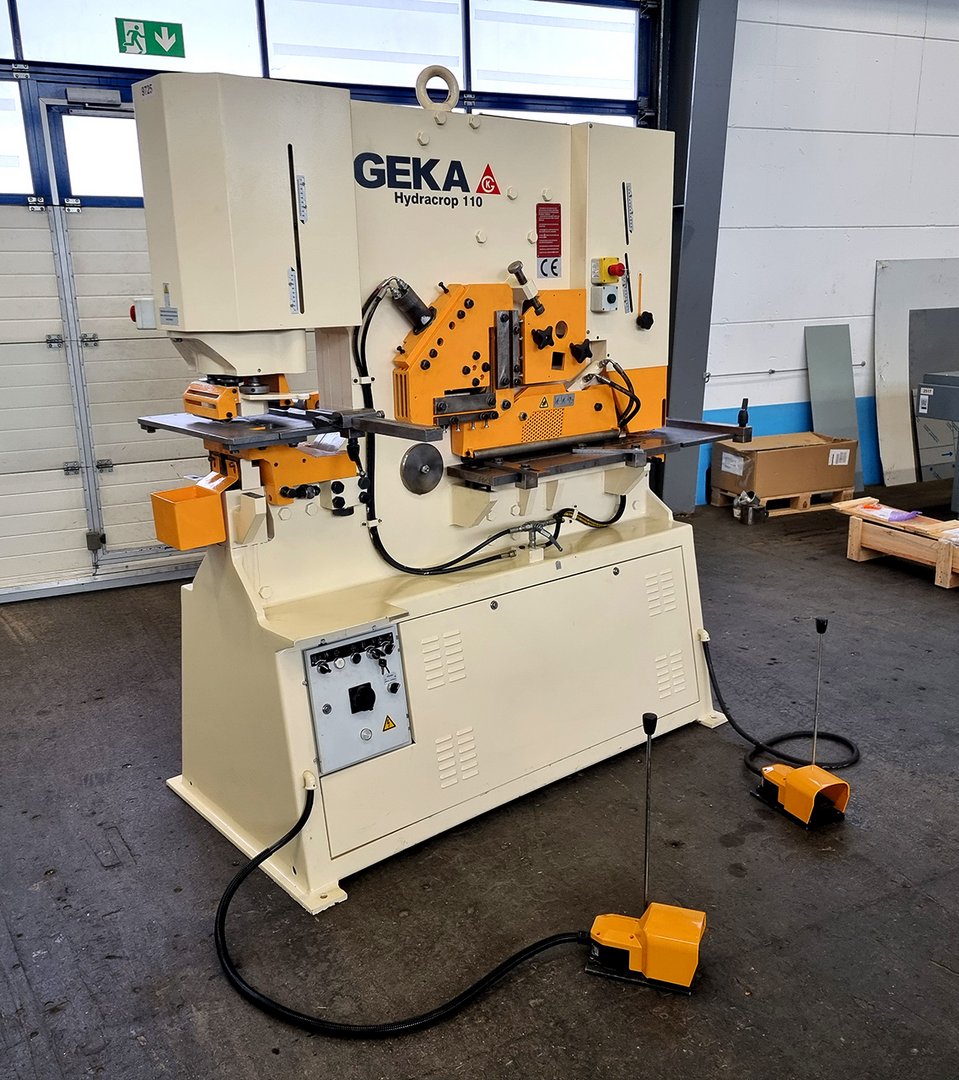

2 foot pedals for independent work at 2 stations
hydr. drive

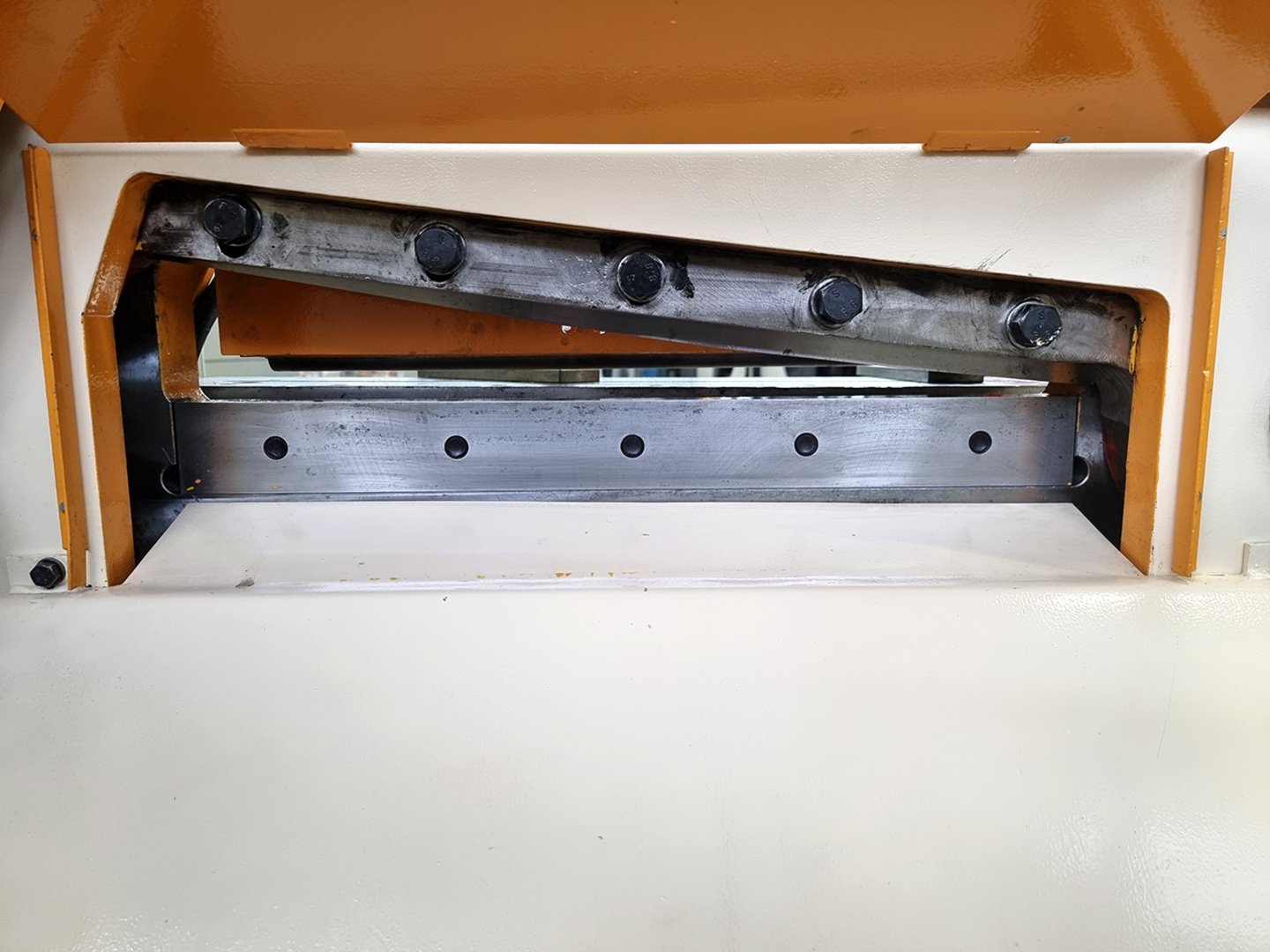

flat bar shear with hydraulic downholder

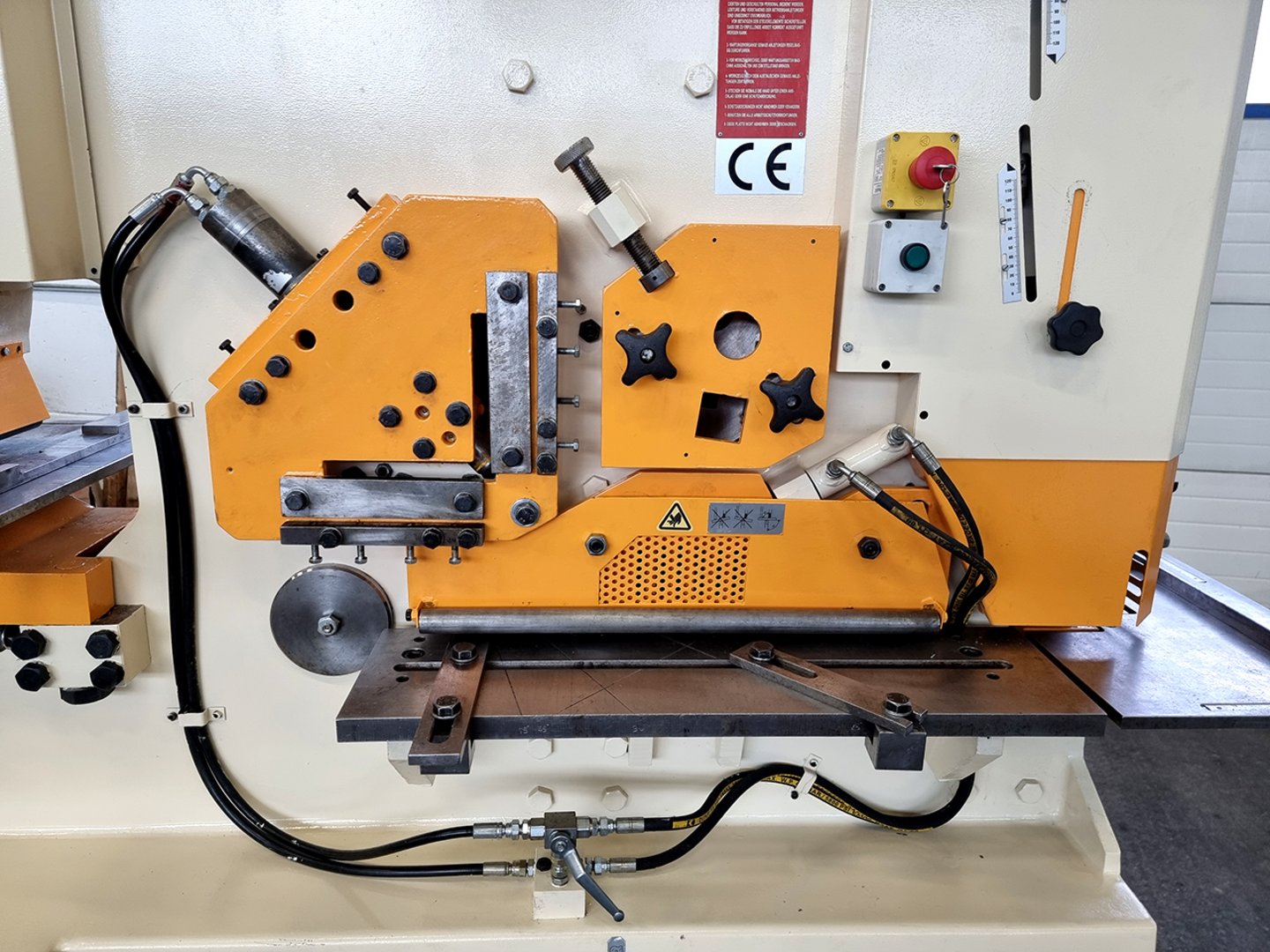

angle bar shear with minimum deformation by diagonal moving of the blade ,
with hydraulic downholder
round and square bar shear
rectangular notching unit

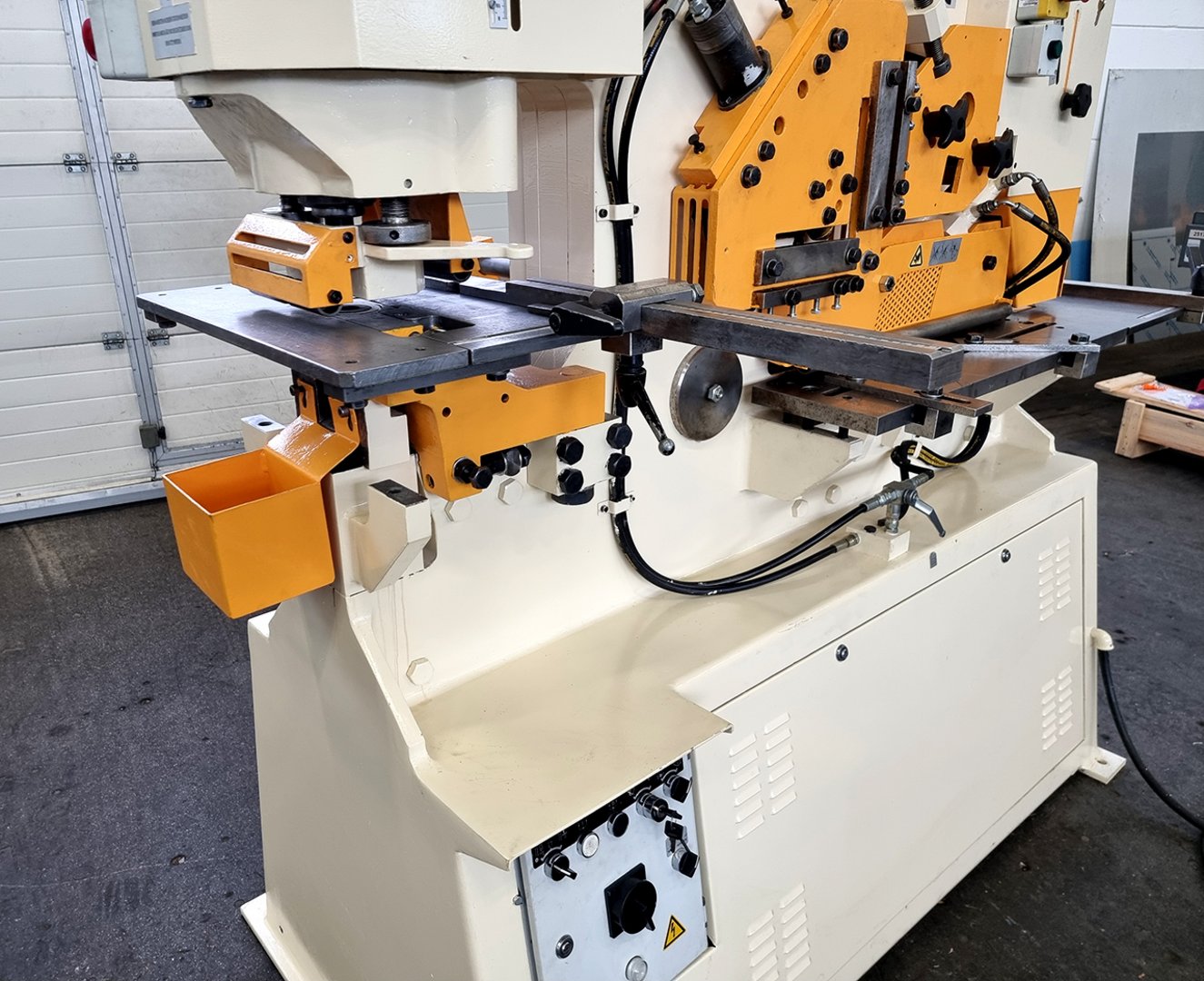

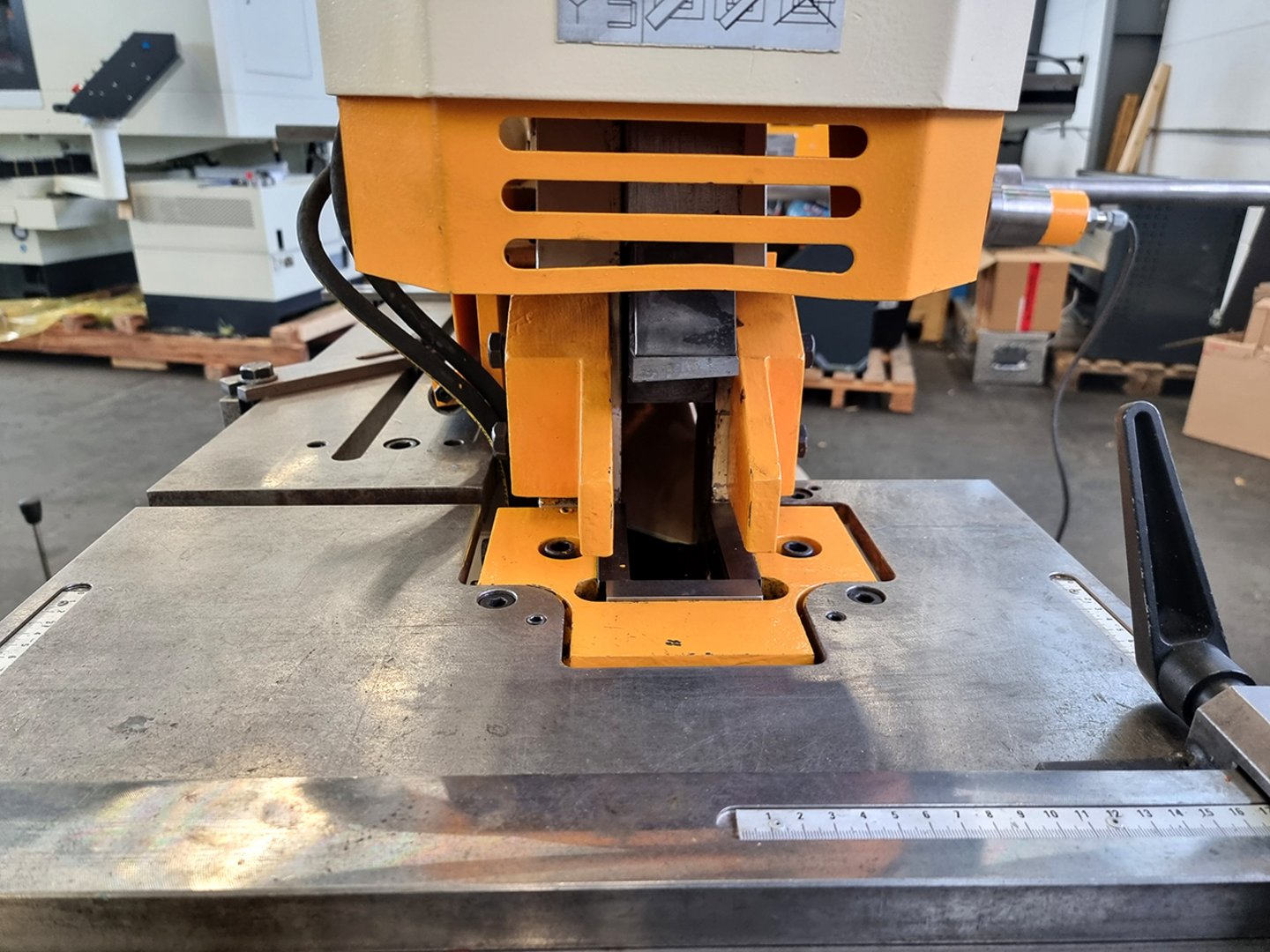

punching unit up to diam. 40 mm
oilfilling

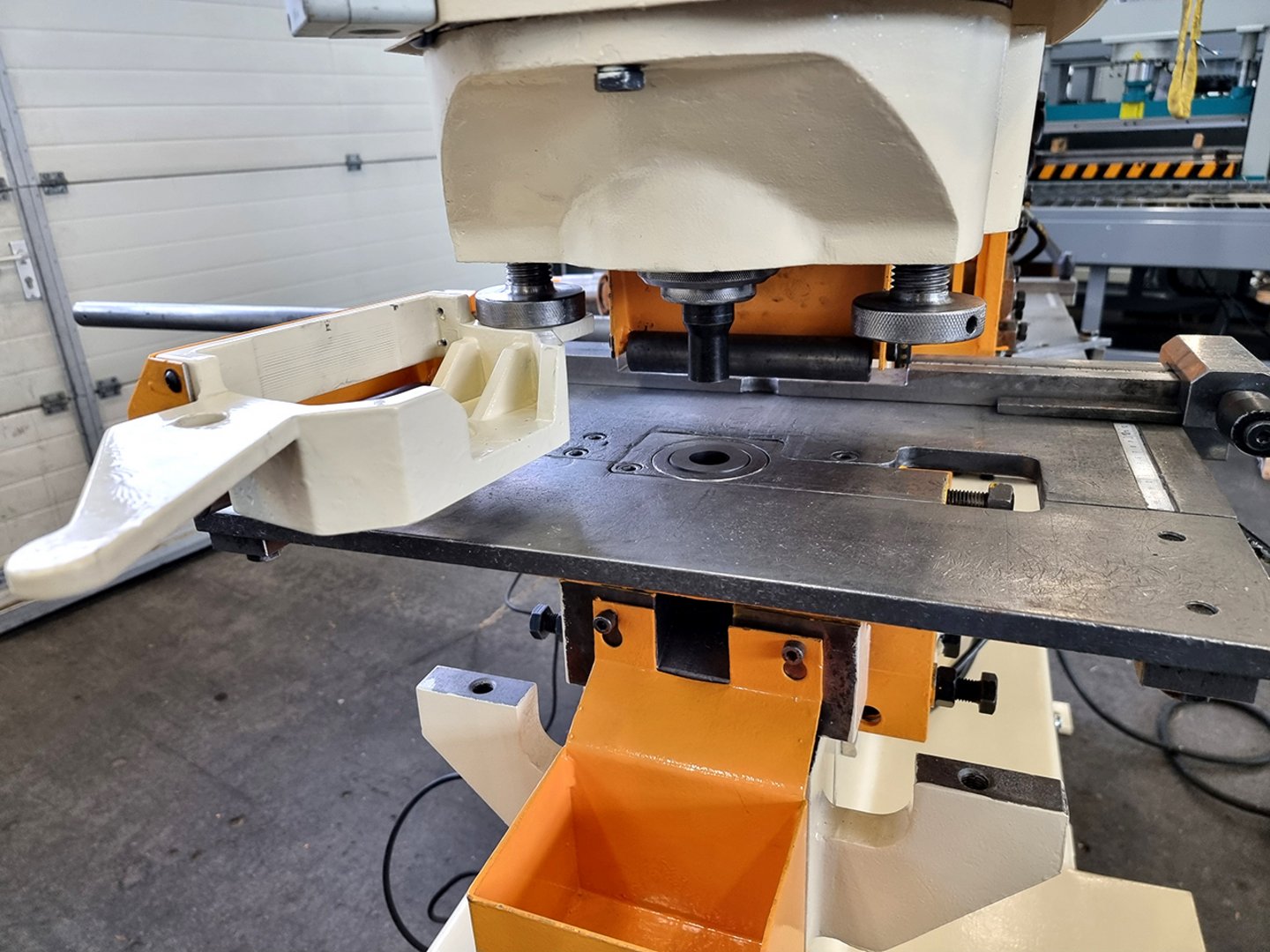

table at the punching station with gauge
table at the notching unit with gauge

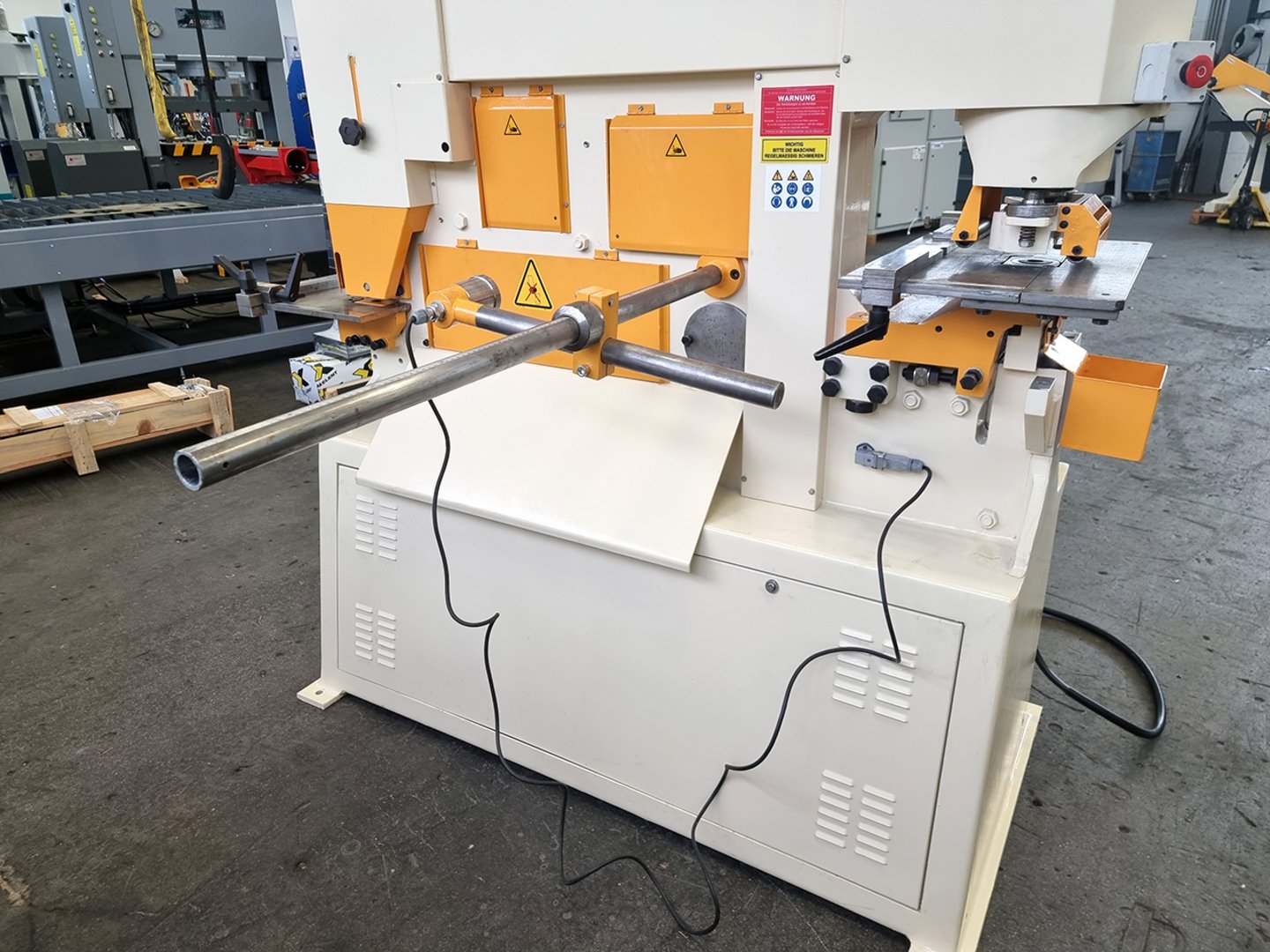

table at the flat bar shear
